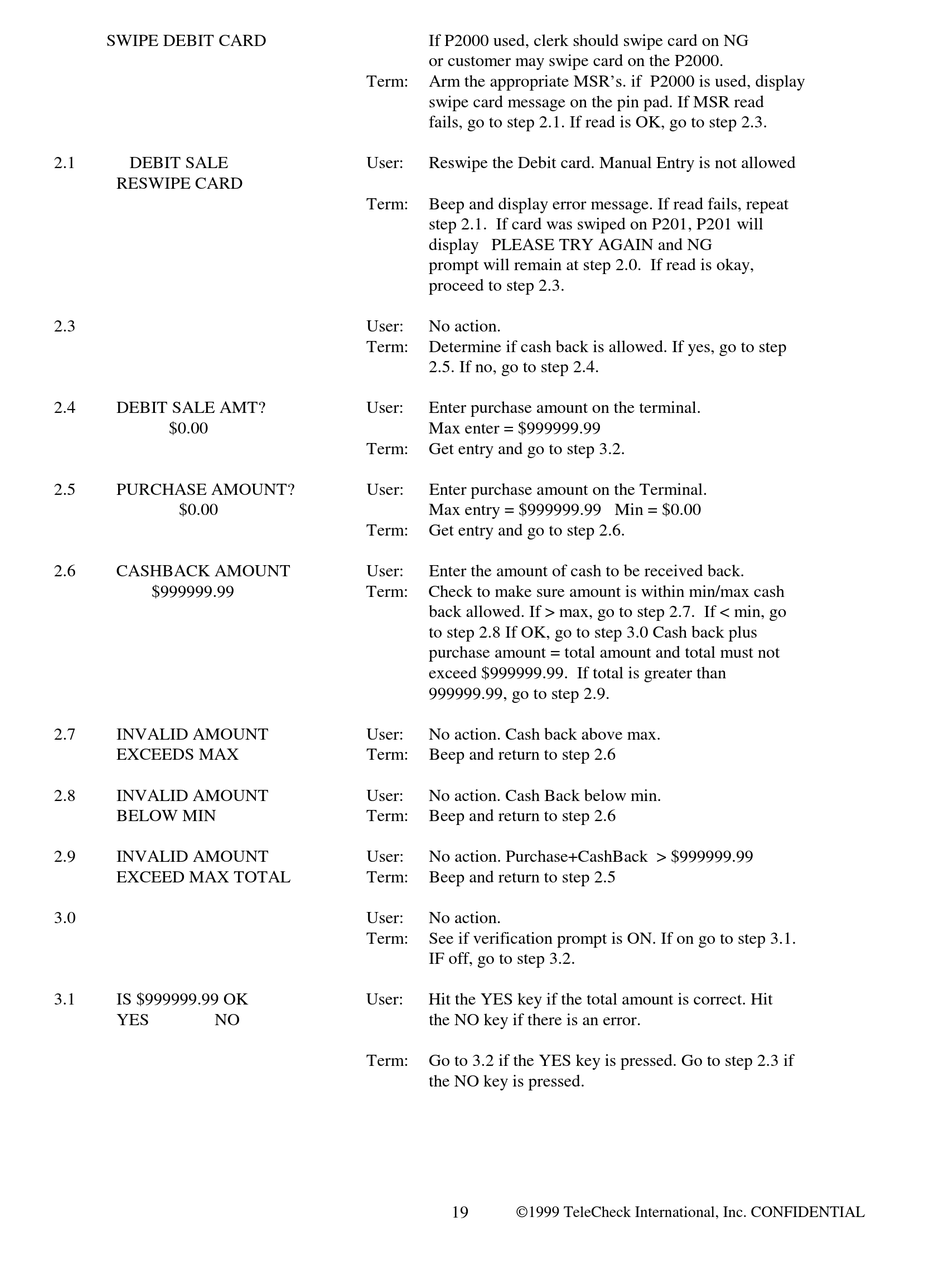

TeleCheck Eclipse Reference Manual page 19

SWIPE DEBIT CARD
2.1 DEBIT SALE
RESWIPE CARD
2.3
2.4 DEBIT SALE AMT?
$0.00
2.5 PURCHASE AMOUNT?
$0.00
2.6 CASHBACK AMOUNT
$999999.99
2.7 INVALID AMOUNT
EXCEEDS MAX
2.8 INVALID AMOUNT
BELOW MIN
2.9 INVALID AMOUNT
EXCEED MAX TOTAL
3.0
3.1 IS $999999.99 OK
YES NO
If P2000 used, clerk should swipe card on NG
or customer may swipe card on the P2000.
Term: Arm the appropriate MSR's. if P2000 is used, display
swipe card message on the pin pad. If MSR read
fails, go to step 2.1. If read is OK, go to step 2.3.
User: Reswipe the Debit card. Manual Entry is not allowed
Term: Beep and display error message. If read fails, repeat
step 2.1. If card was swiped on P201, P201 will
display PLEASE TRY AGAIN and NG
prompt will remain at step 2.0. If read is okay,
proceed to step 2.3.
User: No action.
Term: Determine if cash back is allowed. If yes, go to step
2.5. If no, go to step 2.4.
User: Enter purchase amount on the terminal.
Max enter = $999999.99
Term: Get entry and go to step 3.2.
User: Enter purchase amount on the Terminal.
Max entry = $999999.99 Min = $0.00
Term: Get entry and go to step 2.6.
User: Enter the amount of cash to be received back.
Term: Check to make sure amount is within min/max cash
back allowed. If > max, go to step 2.7. If < min, go
to step 2.8 If OK, go to step 3.0 Cash back plus
purchase amount = total amount and total must not
exceed $999999.99. If total is greater than
999999.99, go to step 2.9.
User: No action. Cash back above max.
Term: Beep and return to step 2.6
User: No action. Cash Back below min.
Term: Beep and return to step 2.6
User: No action. Purchase+CashBack > $999999.99
Term: Beep and return to step 2.5
User: No action.
Term: See if verification prompt is ON. If on go to step 3.1.
IF off, go to step 3.2.
User: Hit the YES key if the total amount is correct. Hit
the NO key if there is an error.
Term: Go to 3.2 if the YES key is pressed. Go to step 2.3 if
the NO key is pressed.
