2 Defining the VCB IP Configuration
Through the Front Panel
The following procedure describes how to get the IP address from the VCB unit's
front panel.
To define a static IP address

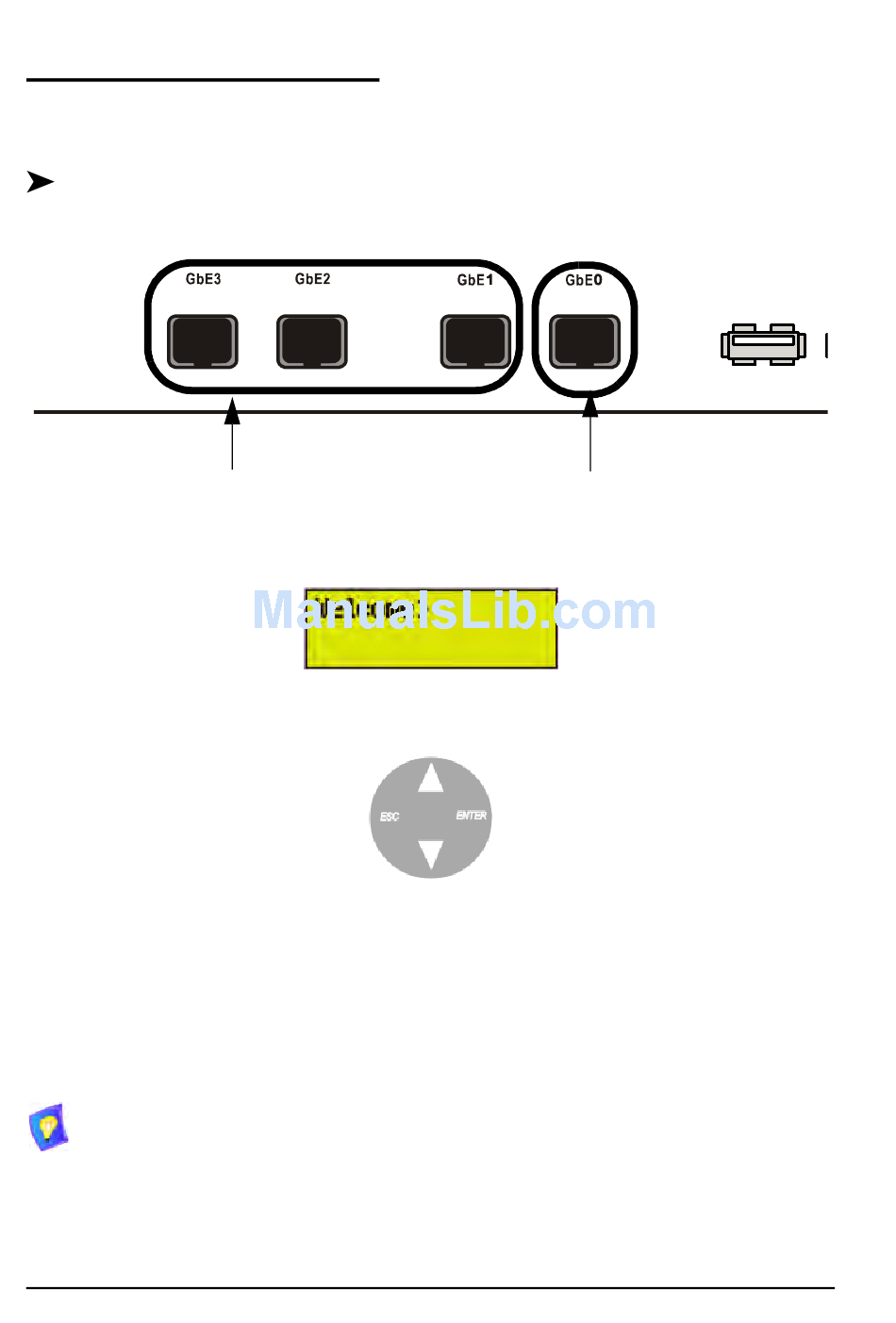

Connect a network cable to any one of interfaces GbE1 to GbE3.
1
Connect to any one
of these interfaces.
Turn the VCB unit on. A welcome message appears in the LCD display.
2
In the LCD display, press an arrow button until the GET IP command
3
appears. Press the Enter button.
Press an arrow button again until the connected network card and interface
4
appears (NIC 1 to NIC 3 = GbE1 to GbE3) and press the Enter button. The
VCB unit receives an IP address from the DHCP server.
If a cable is not connected to the interface, 0.0.0.0 appears in the display.
Leave the cable connected to the chosen interface.
5
6
Interface GbE0 has a fixed static
IP which cannot be changed.
Select NIC:
1
172.20.21.22
