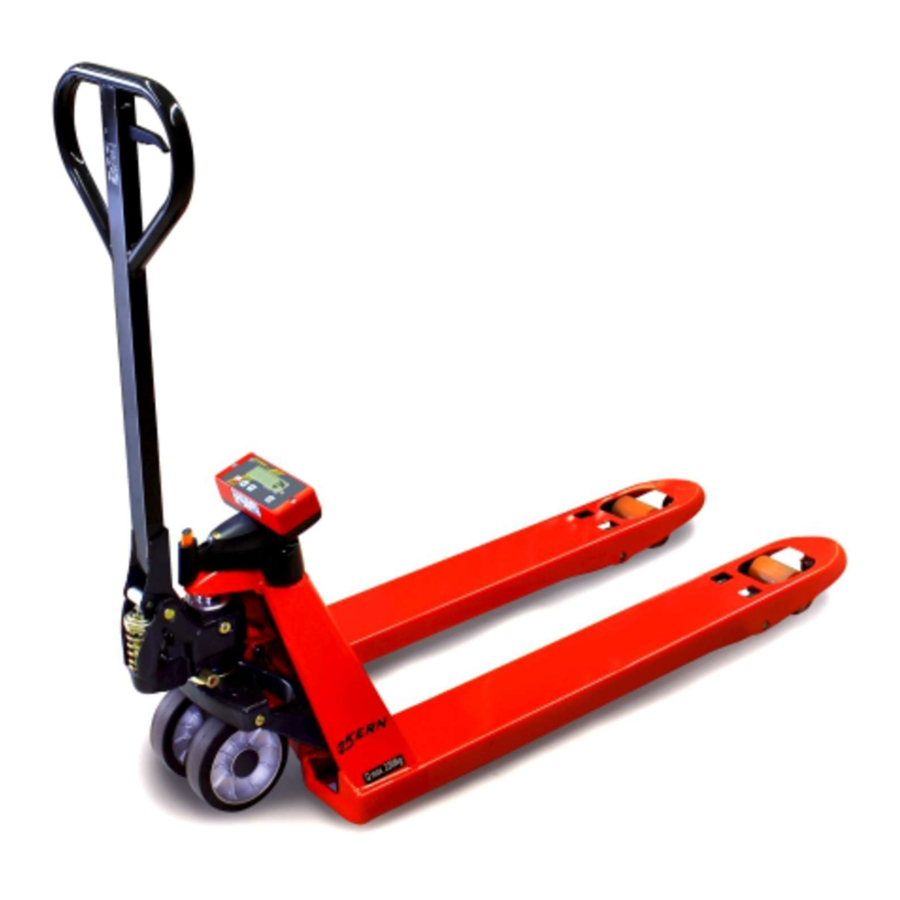

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating Manual Pallet truck scales KERN VHE Version 1.0 09/2008 VHE-BA-e-0810...
-
Page 2: Table Of Contents
KERN VHE Version 1.0 09/2008 Operating instructions Pallet truck scale Table of Contents TECHNICAL DATA..................... 3 Dimensions ..........................4 DECLARATION OF CONFORMITY ..............5 BASIC INSTRUCTIONS FOR SCALES ............. 6 Proper use..........................6 Improper Use ..........................6 Warranty ............................ 6 Monitoring of Test Resources.................... -
Page 3: Technical Data
1 Technical Data KERN VHE 2T5 Readability (d) 5 kg Weighing range (max) 2200 kg Reproducibility 10 kg Linearity ± 10 kg Stabilization time 3 sec. Allowable ambient temperature -10° C ..+ 40° C max. 95 % Humidity of air... -
Page 4: Dimensions
102°C Fork length 1 150 mm Fork width 150 mm Minimum fork height 83 mm Clearance 30 mm Maximum fork height 205 mm Hoisting height 122 mm Width across forks 520 mm Height upper edge of display 545 mm VHE-BA-e-0810... -
Page 5: Declaration Of Conformity
Заявление о Мы заявляем, что продукт, к которому относится данная декларация, соответствии соответствует перечисленным ниже нормам. Electronic Scale: KERN VHB, VHE, VHS, VHT Mark applied EU Directive Standards 2004/108/EC EN 55022 :1994 /A1 : 1995/A2 : 1997 Class A... -
Page 6: Basic Instructions For Scales
• The appliance is used outside the described uses • The appliance is modified or opened • Mechanical damage and damage caused by media, liquids • Natural wear and tear • The appliance is improperly set up or incorrectly electrically connected • The measuring system is overloaded VHE-BA-e-0810... -
Page 7: Monitoring Of Test Resources
6.1 Site of installation, place of operation for scales The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. VHE-BA-e-0810... -
Page 8: Scope Of Delivery
(e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference. 6.2 Scope of delivery Serial accessories: • Pallet truck scales • 4 x 1.5V AA batteries • Operating Manual VHE-BA-e-0810... -
Page 9: Commissioning
Correct weighing only possible at „reference height“ (see fig. 1) Actuate repeatedly the lifting device (hand lever 1 downwards) until the reference height is reached. For this the pin (2) must be in even position, detailed information see fig.2. Fig. 1 VHE-BA-e-0810... - Page 10 Lower the pallet truck scale. Move under the pallet and for weight determination lift again to reference height (see fig. 1). Observe „reference height“ without fail, in case of non-observation wrong weighing results will appear. Read weighing result VHE-BA-e-0810...
-
Page 11: Taring
Fill material to be weighed in the container, the net weight is displayed. If the container is removed from the balance, the tare weight is displayed as a negative value. The tare weight remains stored until the button is pressed anew or the balance is switched off. VHE-BA-e-0810... -
Page 12: Battery Operation
If the balance is not used for a longer time, take out the batteries and store them separately. Leaking battery liquid could damage the balance. Change the battery as follows: 1. Detach the fastening screws of the 2. Remove batteries display unit 3. Insert new batteries 4. Screw again display unit onto the support VHE-BA-e-0810... -
Page 13: Display Unit
LO-BA 8.2 Keyboard overview Each button provides an operating as well as an adjustment function. Operating function Adjustment function Zeroing Confirm and segment to the left Decrease value Increase value On / Off Delete VHE-BA-e-0810... -
Page 14: Service, Maintenance, Disposal
The bearings of the wheels as well as the joints in the load roller section should be regularly cleaned and greased. 9.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. VHE-BA-e-0810... -
Page 15: Instant Help
• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) • The balance is not on reference height. Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. VHE-BA-e-0810...
