- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Installation instructions Tripod KERN VB-A08/VB-A09 Version 1.0 02/2008 VB-A08/VB-A09-IA-e-0810...

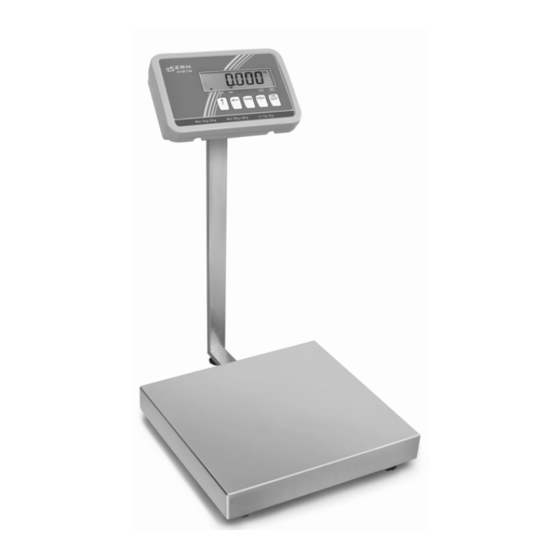

- Page 2 Tripod In order to raise the display unit for weighing plate size 300 x 300 x 65 mm use the tripod VB-A08, for weighing plate size ≥ 380 x 380 x 96 mm use the VB-A09 tripod. Scope of delivery:...
- Page 3 1. Remove weighing plate 2. Screw-off assembly plate and replace it with the tripod 3. Screw tripod on the platform Example: VB-A08 Screw-in foot screw till it is safely fixed. Observe that the air bubble of the level is within the prescribed circle.
- Page 4 6. Screw-on cover plate 7. Screw tripod holder on the cover plate acc. to figure 8. Fix display unit on the tripod using the securing screw (1). VB-A09: VB-A08: 9. Screw-in turning knobs (2, 3) for display positioning VB-A08/VB-A09-IA-e-0810...
