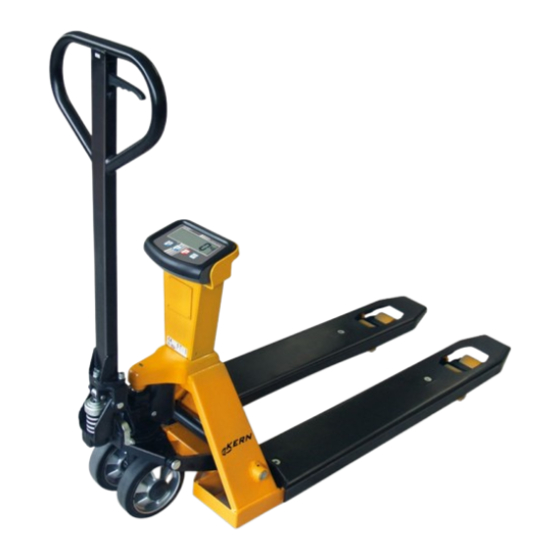

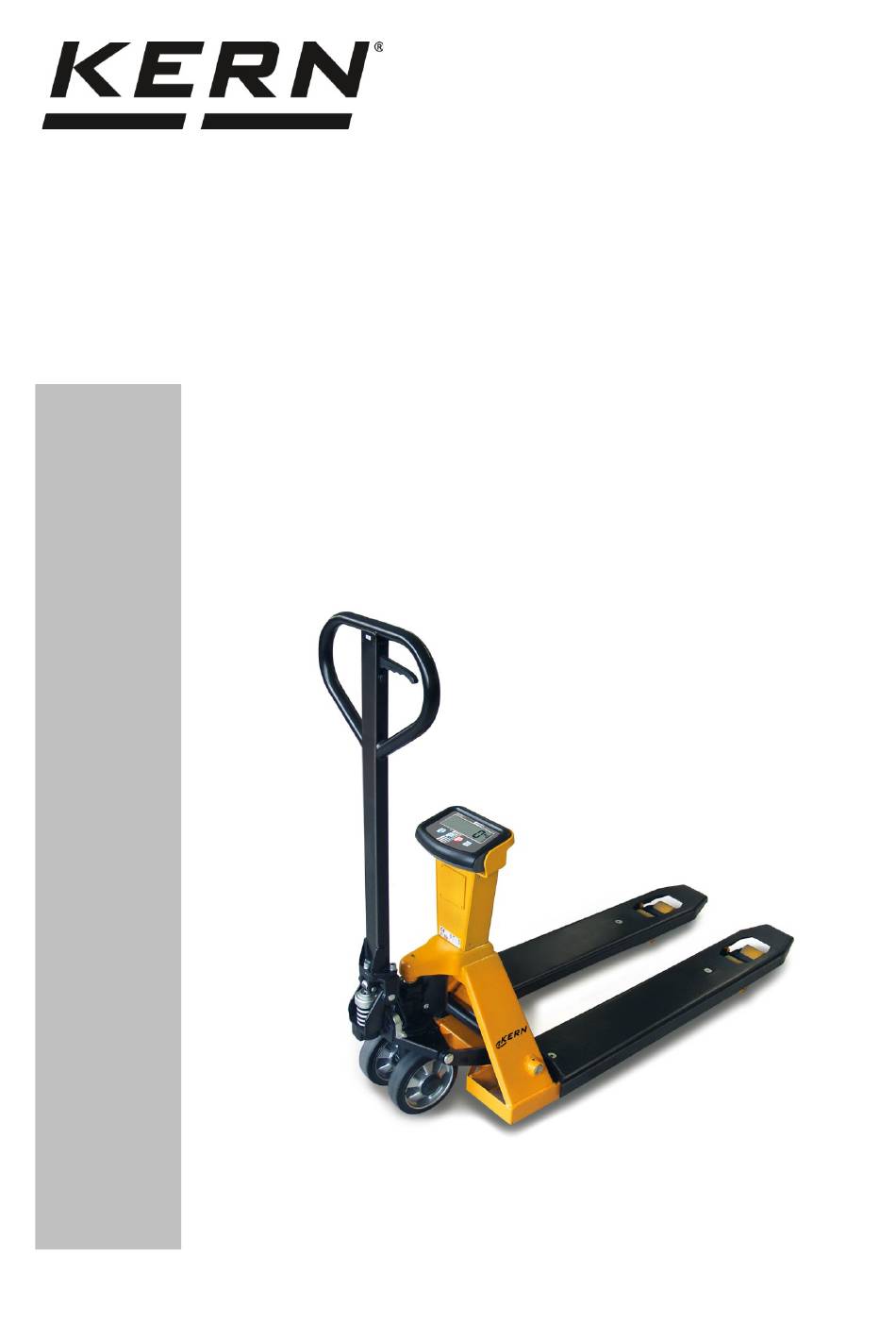

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instruction Pallet truck scale KERN VHB Version 1.4 2018-03 VHB-BA-e-1814...
-
Page 2: Table Of Contents
KERN VHB Version 1.4 2018-03 Operating instruction Pallet truck scale Table of Contents T ec hnic al data ....................4 Dec laration of c onformity ................. 5 B as ic ins truc tions for s c ales ................6 Proper use ..........................6 Improper Use .......................... - Page 3 S ervic e, maintenanc e, dis pos al ..............15 Cleaning ..........................15 Service, maintenance ......................15 Disposal ........................... 15 E rror mes s ages ....................15 Ins tant help ....................16 VHB-BA-e-1814...
-
Page 4: Technical Data
1 Technical data KERN VHB 2T1 Readability (d) 1 kg Weighing range (max) 2000 kg Reproducibility 1 kg Linearity ± 2 kg Stabilization time 3 sec. Allowable ambient -10° C ..+ 40° C temperature Humidity of air max. 95 % (not condensing) -
Page 5: Declaration Of Conformity
2 Declaration of conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce VHB-BA-e-1814... -
Page 6: Basic Instructions For Scales
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case •... -
Page 7: Monitoring Of Test Resources
Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be... -
Page 8: Unpacking, Setup And Commissioning
In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature. Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference. VHB-BA-e-1814... -
Page 9: Scope Of Delivery
The operating temperature for the electronic system and the weighing cells will have been reached after three to five minutes. . Prior to this, deviations of c. 0.3% are possible. Loads should not be lifted before this zero adjust is complete. VHB-BA-e-1814... -
Page 10: Overview Of Display
HELP display and enter a new, reduced tare weight. HELP 7 The signal of the load cells on the A-D converter is too high. LO-BA The storage battery status is too low; charge storage battery. VHB-BA-e-1814... -
Page 11: Keyboard Overview
SLANT The verifiable model of the weighing system will display stripes only if a slant exceeds 2°. If this is the case, place the weighing system on an even base. VHB-BA-e-1814... -
Page 12: Functions Of Display Unit
PRE- TARE Press button The most recently used tare value appears. The segment on the right is flashing. TARE Press the key for three seconds if the indicated tare value is to be used again VHB-BA-e-1814... - Page 13 The tare value will be reset to zero and the system reverts to standard weighing mode. The weighing system is unloaded: Press button. A reset to zero is carried out and the system reverts to standard weighing mode. VHB-BA-e-1814...
-
Page 14: Addition Of Individual Weighings
Whilst the total value is displayed, you may delete the memory by pressing the key. If the system is equipped with a printer, an overview print is made (KERN VHS) The display shows the sequence number 00 and the initial value 0.0 kg. -
Page 15: Vhb-Ba-E
8.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. The same maintenance guidelines apply to the chassis of the mobile weighing system as those for simple manual pallet trucks. Experience has taught us that the integrated weighing system continues to function even if the chassis was damaged by overloading. -
Page 16: Ins Tant Help
• Great fluctuations in temperature. • Electromagnetic fields / static charging (choose different location/switch off interfering device if possible) Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. VHB-BA-e-1814...
