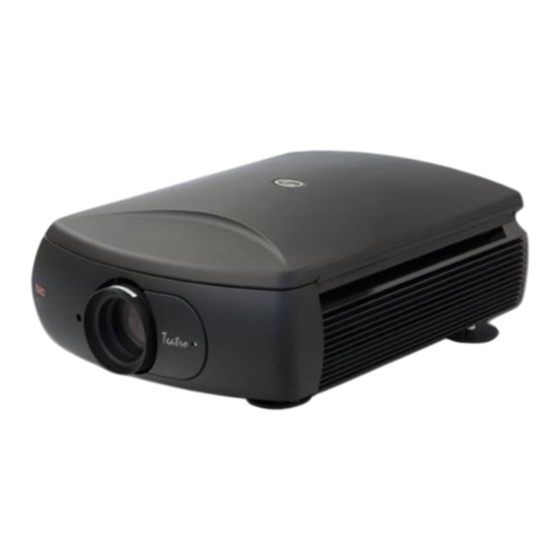

Summary of Contents for Sim2 TEATRO 80

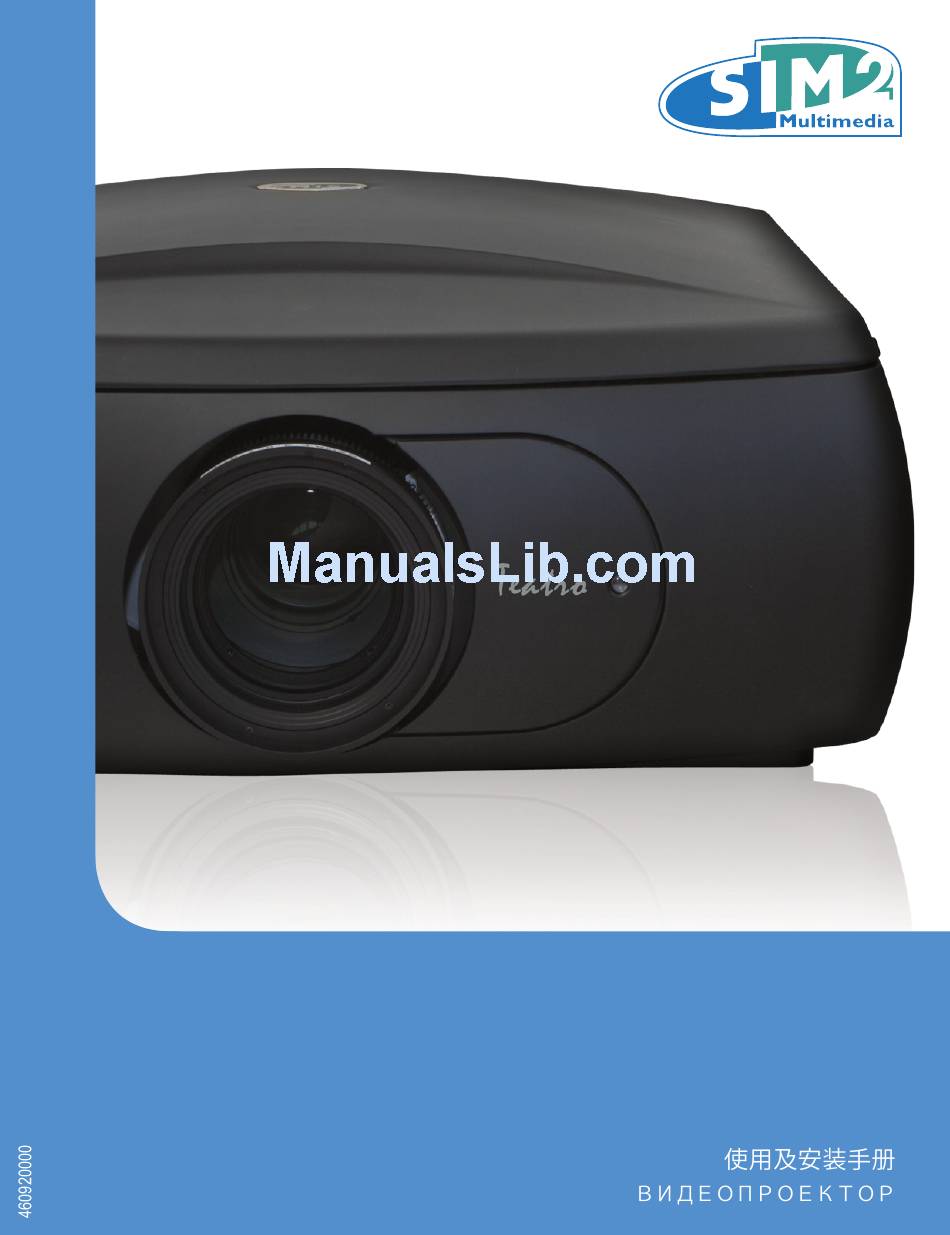

- Page 1 TEATRO 80 - M80 user and installation manual manuale d’uso ed installazione manuel d’utilisation et d’installation bedienungs und wartungsanleit manual de uso e instalación manual de utilização...
-
Page 2: Table Of Contents
TEATRO 80 - M80 1 INTRODUCTION The TEATRO 80 - M80 projector uses the maximum in CONTENTS signal processing technology as well as the innovative DLP™ and a refined optical system. INDICE Its range of inputs (1 Composite Video inputs, 1 S-... -
Page 3: Safety Warnings
2. You may return your old equipment to your dealer free of charge when you buy a new product which is equi- valent or has the same functions as the old one. Call SIM2 Multimedia to find your local dealer. -
Page 4: Presentation
TEATRO 80 - M80 not use water or liquid detergent to clean them. Read this manual carefully. This manual contains important information on how to install Do not allow the units to overheat. and use this equipment correctly. Before using the equip- To prevent overheating, allow a free space of at least 40 cm ment, read the safety prescriptions and instructions carefully. -
Page 5: Unpacking
TEATRO 80 - M80 3 UNPACKING For easy extraction of the TEATRO 80 - M80 system from its cardboard box, follow the instruc- tions shown here (Fig.1). DUE TO THE WEIGHT OF THE EQUIPMENT, IT SHOULD BE UNPACKED BY TWO PERSONS. -
Page 6: Remote Control
TEATRO 80 - M80 6.1 REMOTE CONTROL Standby / ON Places the projector in standby mode. BACKLIGHTING Backlights the keys on the remote control. KEYS 0-9 LIGHT Selects the sources directly. Switches the panel on from Standby. INPUT ESCAPE Displays input selection menu. -
Page 7: Installation
If you use a bracket other than the one provided by SIM2 Multimedia, make sure the projector is located at least 65 mm from the ceiling and that the bracket does not block the air intake and outlet slots. - Page 8 TEATRO 80 - M80 It is possible to use a hideaway motorized screen. The acti- vation switch can be provided using output TRIG1 located on the back of the projector (Fig. 6). This output is activated (voltage +12 V DC) when you turn the projector on.
-
Page 9: Start-Up And Shutdown
START UP FROM STANDBY Error (*) From the remote control: : On : Flashing press one of the keys 1...9 or 0. From the keypad: press the on/off key (*): If an error is indicated, contact SIM2 Multimedia technical service. Fig.10... -
Page 10: Connections
TEATRO 80 - M80 10 CONNECTION PANEL LINE INPUT 110-240~ 7,6 - 3,4 A FUSE T10A H 250V Fig. 11 Television receiver HDTV receiver Professional and broadcasting equipment DVD player DVD player Video recorder Computer Camcorder Video game console Television receiver... - Page 11 TEATRO 80 - M80 in the two cases: the de-interlacing performed by the TEATRO 80 - M80 is often more effective than that performed by the sources themselves.
-
Page 12: Network Functions
TEATRO 80 - M80 OUTPUTS FOR ACTIVATING MOTORIZED SCREENS RS232 INTERFACE CONNECTOR OR USB INTERFACE CONTROL RS232 TRIG 1 CONTROL USB 12 Volt TRIG 2 120 mA Fig. 12 Fig. 13 The projector is equipped with two outputs (Voltage: 12... - Page 13 TEATRO 80 - M80 EMAIL SETTINGS TYPE OF IP ADDRESS This screen permits you to select the type of IP address to This screen is used to define the operating parameters for be assigned (Fig. 15): notification of the projector status by e-mail (Fig. 16).
-
Page 14: On Screen Menu
TEATRO 80 - M80 W: Total hours of projector use L: Hours projector lamp on F: Software firmware version X: Operating status: 0 – OFF 1 – ON 2 – Lamp preheating 3 – Lamp switching back on 4 – Lamp cooling Y: Specific status: 0 –... - Page 15 TEATRO 80 - M80 BRIGHTNESS Use this control to adjust the darker areas of the picture Image (black level), without affecting bright areas. Increasing the value will give more detail in darker parts of the picture. Aspect For correct adjustment it may prove useful to display a grey Colour Temperature scale with at least twenty bands.
- Page 16 TEATRO 80 - M80 IMAGE given input signal ensures the best horizontal and vertical definition and makes the picture sharper. This menu features adjustments relating to picture position, CINEMA MODE aspect ratio, magnification etc. (Fig. 21). Use this option if the video signal source is a movie film (obtained from a Telecin device with 3:2 or 2:2 pull-down).
- Page 17 There are 3 sets of gamma curves: Standard (ST), Enhanced Image SIM2 (EN) and Graphics (GR). The Standard curve has been R G B White Color Information defined for general use, and is set for camcorders, digital...
- Page 18 TEATRO 80 - M80 FREQUENCY/PHASE GAMMA CORRECTION SETTING These adjustments, available for progressive signals and for signals from a PC, ensure correspondence between the Standard number of pixels making up the signal and the number of pixels that make up the projected image.
- Page 19 TEATRO 80 - M80 SETUP If this adjustment is insufficient to centre the image on the screen, tilt the projector and use the Vertical/horizontal keystone adjustment to compensate for the resulting dis- This menu includes the less frequently used adjustments tortion.
- Page 20 If your projection room is especially dark, the images pro- number underlined jected by the TEATRO 80 - M80 system may appear to be • a lamp that is in operation is shown with a symbol above excessively bright.
- Page 21 TEATRO 80 - M80 associated with the same key as before. Use the ▲ key to Source List / Edit Source Name switch from upper case to lower case characters and vice 1 VIDEO VIDEO 1 versa. Cancel errors with ▼ after selecting the character...
- Page 22 TEATRO 80 - M80 MEMORIES Osd Background Determines the type of background for the On Screen Display opaque or transparent. The main picture parameters can be saved in discrete sets of values called MEMORIES so that they can be subsequently Osd Display Timeout applied as a group using a single command.
- Page 23 TEATRO 80 - M80 Memory in question and open the corresponding pull-down correctly. menu (key ◀). Then select the “Save initial settings” line. • Check the condition of the cables used to connect the system to the various sources. A message stating “Initial settings saved in Memory 1” will appear at the bottom of the display.
-
Page 24: Cleaning And Maintenance
• Make sure the video or graphic signals supplied by available for the input in question). the source are compatible with the TEATRO 80 - M80 system’s technical specifications and, in particular, with VIDEO IMAGE WITH COLOURS NOT ALIGNED WITH those of the selected input. -
Page 25: Optional Accessories
TEATRO 80 - M80 • Adjust Y/C DELAY settings in the IMAGE menu to reduce colour misalignment. REMOTE CONTROL DOES NOT WORK • Check remote control battery power and that they are inserted correctly. • Ensure the area between the infrared sensors (on the front panel of the projector) and the remote control is free from obstructions. -
Page 26: Technical Specifications
TEATRO 80 - M80 16 TECHNICAL SPECIFICATION ELECTRONICS GENERAL PROJECTOR Power cable: (EU, UK and US); 2m long Input signals: Power supply: from 110 to 240 V AC, tolerance +/- 10% frequency from 48 to 62 Hz • 1 COMPOSITE VIDEO (CVBS) -
Page 27: Appendix
TEATRO 80 - M80 APPENDIX TEATRO 80 - M80 DIMENSIONS PROJECTIONS DISTANCES INSTALLATION INSTRUCTIONS TEATRO 80 MB - APPENDICE.indd 1 25/10/10 18.17... -
Page 28: App.1
TEATRO 80 MB APP.1 TEATRO 80 MB (unit of measure: mm) 745,8 770,21 770,21... -
Page 29: App.2
TEATRO 80 MB APP.2 PROJECTIONS DISTANCES (16:9) Meters Lens Type FWA -1* FWA -2* Short Med-Short Med-Long Long Throw Ratio** 0.67:1 1.11:1 1.39~1.87:1 1.87~2.56:1 2.56~4.16:1 4.16~6.96:1 Throw Distance 1.1 - 3.2 3 -15 4 - 24 4 - 24 9.1 - 45... -
Page 30: App.3
The examples shown in the figure give only general indication on the use of the vertical shift. Each projection lens may require differing vertical shift settings. For more detailed information, see the technical specifications or contact an authorised SIM2 Multimedia centre. - Page 31 Int. Phone: +49-163-500 7462 Fax 0800.900.7462 www.sim2.de - e-mail: info@sim2.de SIM2 UK Steinway House Worth Farm, Little Horsted Nr. Uck eld, East Sussex TN22 5TT Phone +44.0182 5.750850 - Fax +44.0182 5.750851 www.sim2.co.uk - e-mail: info@sim2 .co.uk Producer Registration Number: WEE/JJ0125YT...
