Rear View Camera - Ford GALAXY Owner's Manual

The camera may not operate correctly in
the following conditions:
Dark areas.
Intense light.
If the ambient temperature increases
or decreases rapidly.
If the camera is wet, for example in rain
or high humidity.
If the camera's view is obstructed, for
example by mud.
Using the display
CAUTIONS
Obstacles above the camera position
will not be shown. Inspect the area
behind your vehicle if necessary.
Marks are for general guidance only,
and are calculated for vehicles in
maximum load conditions on an even
road surface.

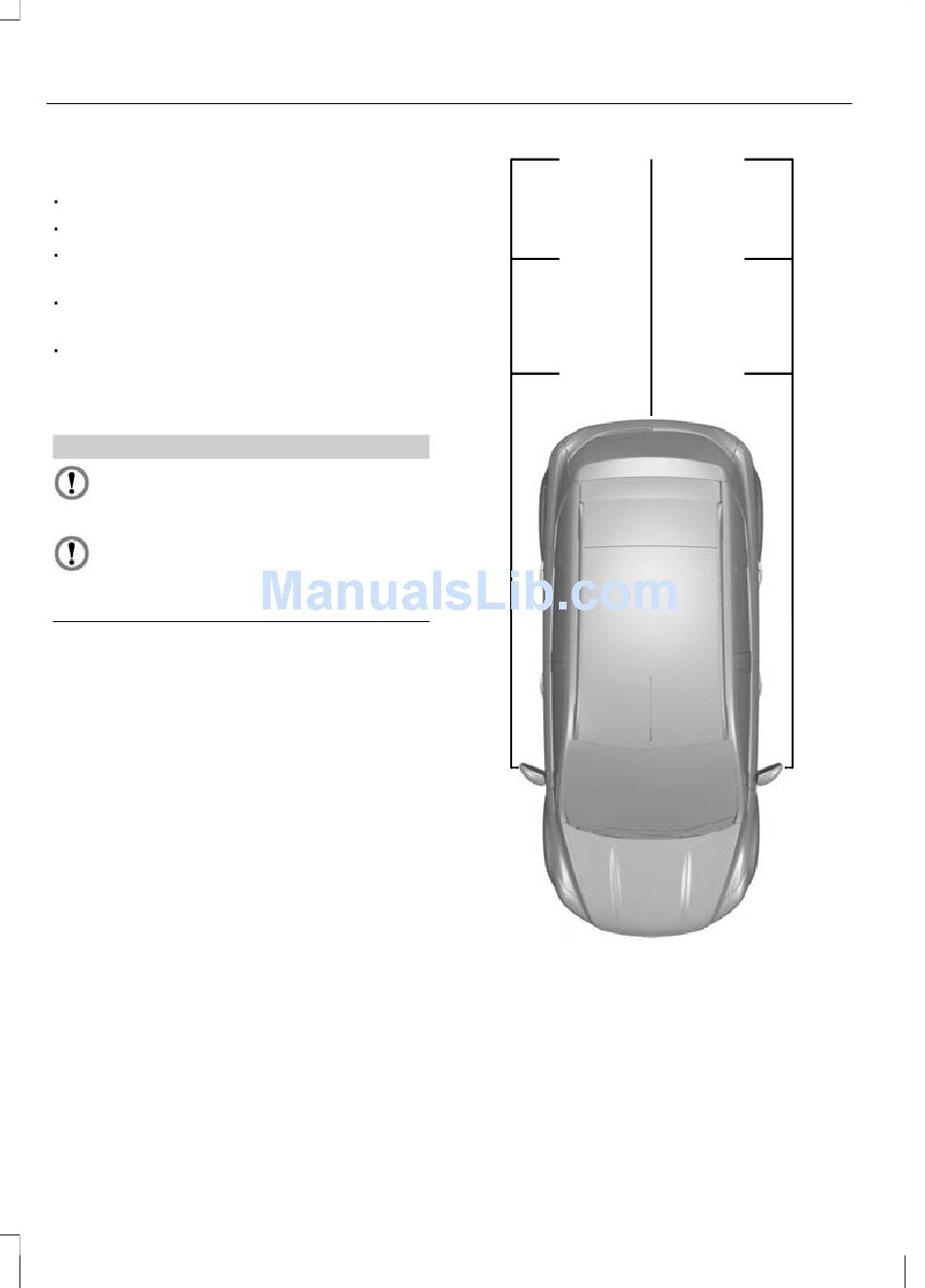

The lines show a projected vehicle path
(based on the current steering wheel
angle) and the distance from the exterior
mirrors and rear bumper.

Rear view camera

D
C
B
A
E99458
178
E
A Exterior mirror clearance - 0.1
metre (4 inches)
B Red - 0.3 metre (12 inches)
C Amber - 1 metre (39 inches)
D
C
B
A
