Igmp Settings - ProSoft Technology RLXIB-IHA RadioLinx User Manual

RLXIB-IHA ♦ 802.11a
RadioLinx® 802.11a Industrial Hotspot

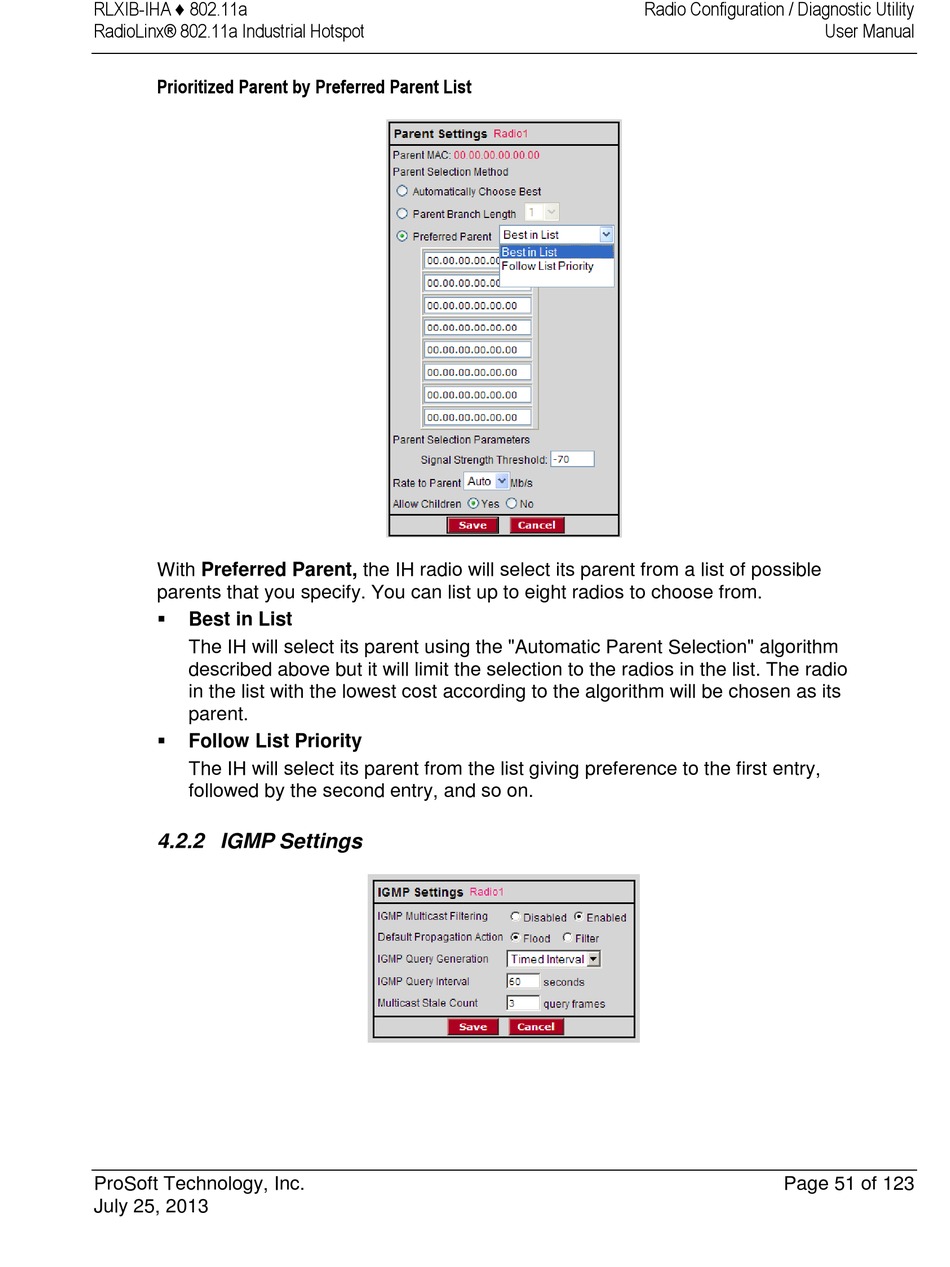

Prioritized Parent by Preferred Parent List
With Preferred Parent, the IH radio will select its parent from a list of possible
parents that you specify. You can list up to eight radios to choose from.

Best in List
The IH will select its parent using the "Automatic Parent Selection" algorithm
described above but it will limit the selection to the radios in the list. The radio
in the list with the lowest cost according to the algorithm will be chosen as its
parent.

Follow List Priority
The IH will select its parent from the list giving preference to the first entry,
followed by the second entry, and so on.

4.2.2 IGMP Settings

ProSoft Technology, Inc.
July 25, 2013
Radio Configuration / Diagnostic Utility
Page 51 of 123
User Manual
