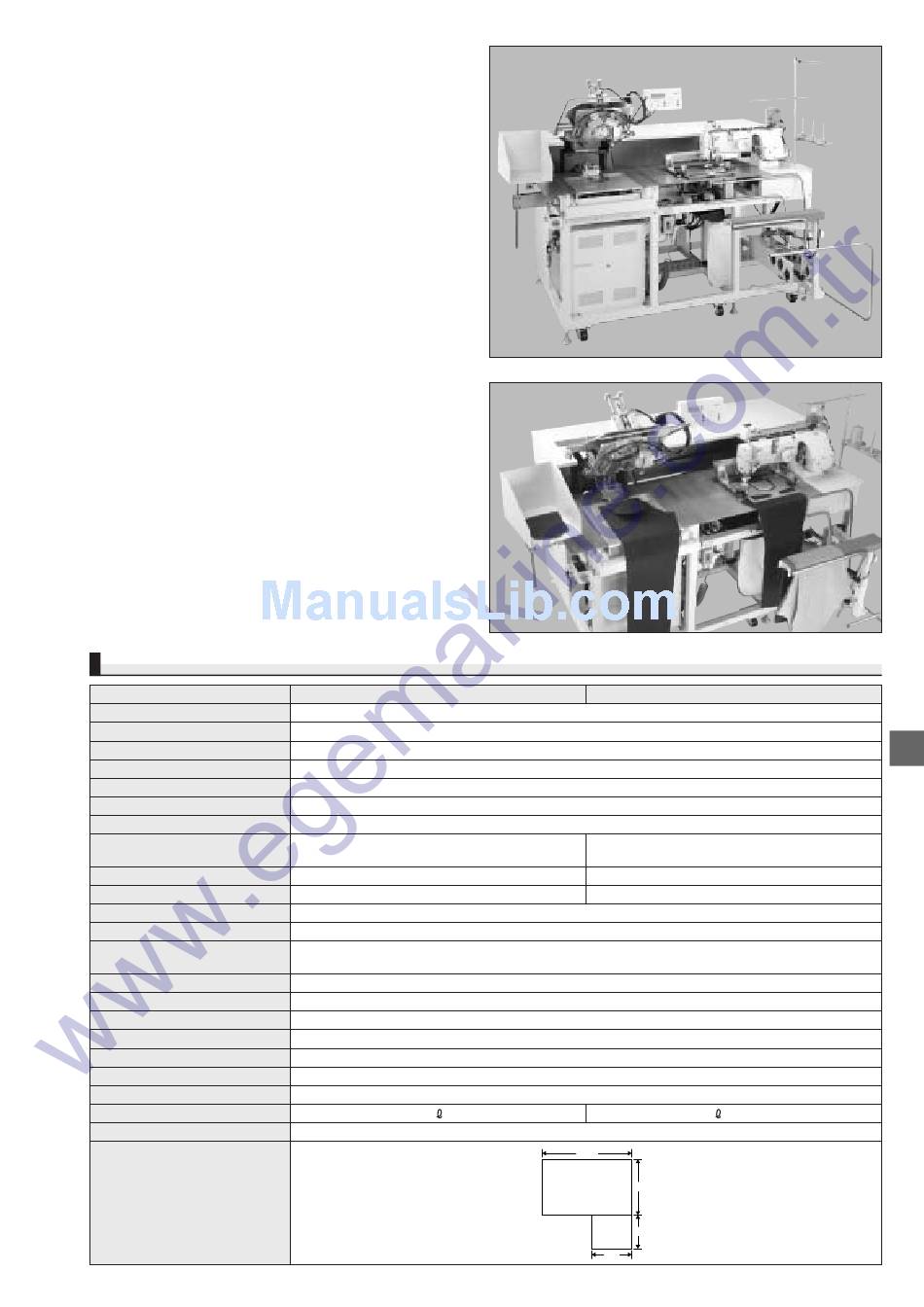

Automatic Pocket Setter (for jeans)
AVP-875S
● The machine automatizes a series of pocket-setting processes,
concurrently folding and sewing sequential pocket cloths in the
production line, thereby resulting in substantial labor savings.
With its newly developed large-hooked zigzag stitching lockstitch
machine head, the machine runs at a maximum sewing speed of
4,000rpm and executes all of its operations with split-second
response. The sum result: dramatically reduced cycle time and
increased productivity.
● A pocket cloth is folded on the table surface and properly tensed
by a pocket style jig to create sharp creases without material
slippage or bulging. The pocket cloth is vertically shifted and
pulled to the suitable tautness for placement on the garment
body. This prevents the pocket cloth from slipping out of the
correct position and makes it easy to adjust folding timing.
With this pocket-folding and pocket-positioning mechanism, the
machine is widely adaptable to various materials.
● It takes only about five minutes to replace the pocket style jig
including adjustment. Any tools are unnecessary for its
attachment/removement. The pocket style jig can be attached/
removed without the use of any tools.
● The folding unit is sufficiently spaced from the machine head.
This means large garment bodies do not interfere with each other
even when right and left garment bodies are alternately processed
on the table. The machine widely adapts to materials of various
sizes and many different sewing specifications.
AVP-875A (with automatic bobbin thread winding and
feeding device AW-2)
● When the AVP-875 is equipped with the AW-2, the production
capacity results in increase by as much as 10%.
● Bobbin replacement by AW-2 is fully synchronized with the sewing
operation of the AVP-875.
SPECIFICATIONS
Model name
Machine head
Max. sewing speed
Sewing area
Stitch length
Needle bar stroke
Needle (at the time of delivery)
Hook
Automatic bobbin winding
and feed device (AW-2)
Size of bobbin and bobbin case
Bobbin thread replacement
Needle thread breakage detection
Stacking capacity
Number of patterns that can be
stored in memory
Memory medium
Feeding method
Lubrication
Lubricating oil
Power requirement
Power consumption
Compressed air
Air consumption
Total weight
Dimensions
The automatic bobbin thread winding and feeding device (AW-2) cannot be mounted on the AVP-875S after setup.
AVP-875S
High-speed, 1-needle, lockstitch, zigzag stitching machine (exclusive machine head)
250mm (L) 240mm (W)
SCHMETZ 134SES SERV7(Nm130)
Horizontal-axis full-rotary hook
1.7 fold
Manual
Provided as standard
Max. 64 pieces of jeans bodies
2DD/2HD 3.5" micro-floppy disk
AC servomotor, X-Y clamp drive
Automatic (machine head)
JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Single-phase 200 240V, 3-phase 200V, 200 240V, 380 440V
0.5MPa (5.0kgf/cm
120N /min
AVP-875A
4,000rpm
0.1 6.0mm
35mm
Provided as standard
1.4 fold (specifically designed for the AW-2)
Automatic (AW-2)
Max. 691 pattern
600VA
2
)
220N /min (max.)
600kg
1,860
1,160
Main unit
Stacker 700
(Unit: mm)
830
AVP-875S, 875A (September, 2003) 1/3
