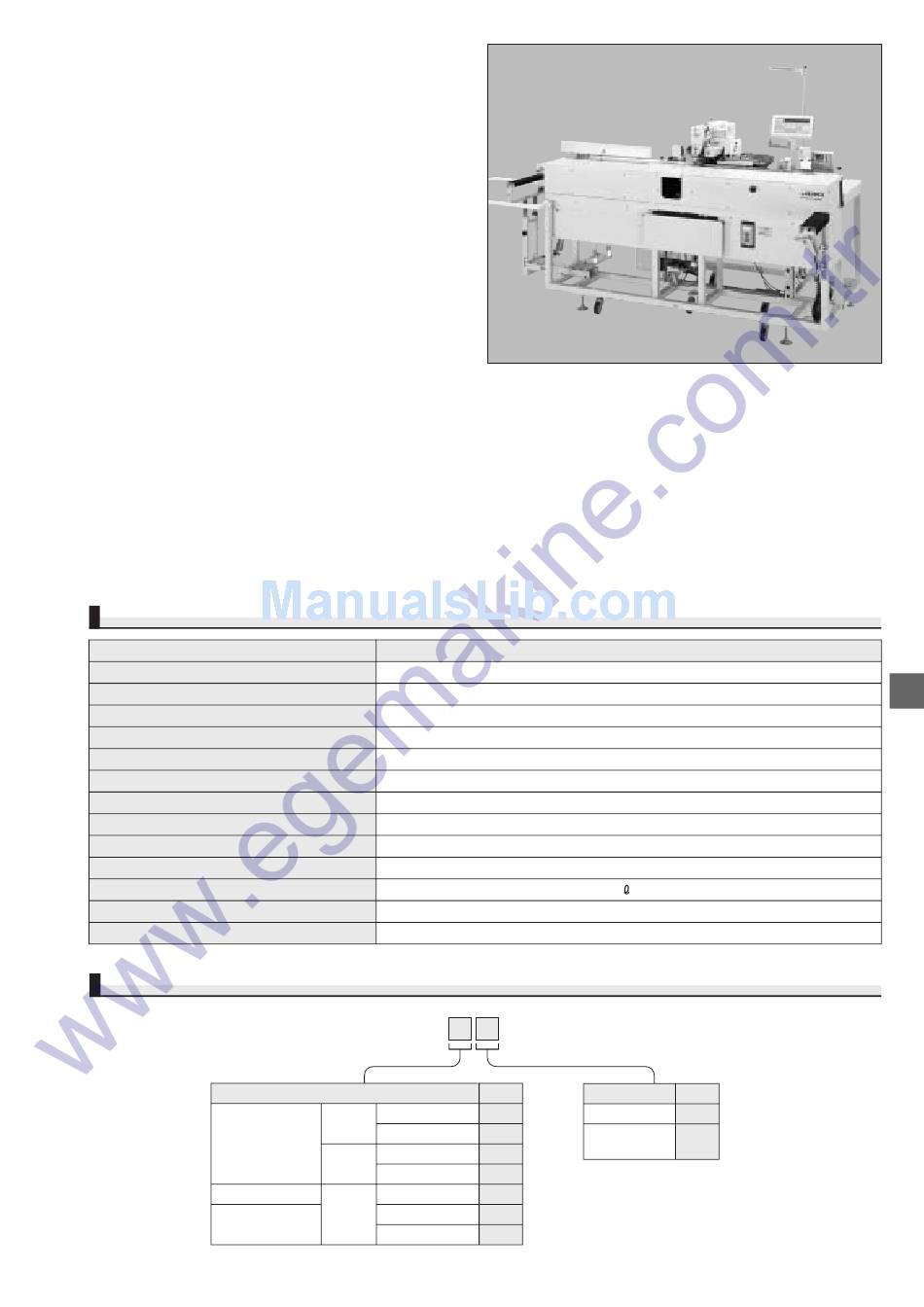

Computer-controlled, Lockstitch, Button Sewing Indexer
ACF-164-1903
● The machine incorporates a high-speed machine head that
offers a maximum sewing speed of 2,300rpm and a button
feeder with higher button-supplying capacity for increased
productivity.
● The machine can sew buttons on ladies' wear by changing
the operation mode. In addition, with the optional
attachments, it can also sew buttons on finished garments
and long-sized garment.
Various options are available to further improve workability.
● Since the machine does not have a stop-motion mechanism,
it requires no maintenance and offers a quiet work
environment.
Fastening stitches at the end of sewing ensures upgraded
seam quality while preventing the thread from fraying.
The machine is provided as standard with 29 different
sewing patterns. This allows the machine to easily respond
to many different sewing specifications.
● The stepping motor controls the material feed in increments
of 0.1mm to ensure accurate button sewing at all times.
One to 20 buttons can be sewn on every garment.
Twenty patterns can be stored in memory.
The machine is equipped as standard with a stacker that
can accurately stack a great many garments.
SPECIFICATIONS
Model name
Machine head
Stitch system
Max. sewing speed
Needle (at the time of delivery)
Number of button to be sewn
Number of patterns that can be stored in memory
Lubrication
Lubricating oil
Power consumption
Compressed air
Air consumption
Dimensions
Total weight
WHEN YOU PLACE ORDERS
For General Export
For North America
For CE
ACF1641903
Power supply
220V
Single-
phase
240V
200V, 220V, 240V
3-phase
380V, 415V, 440V
220V
3-phase 380V
415V
ACF-164-1903
LK-1903/BR26
Lockstitch
2,300rpm (normal: 2,000rpm)
DP 17 (#14)
1 20pcs.
20 patterns
Centralized oil wick lubrication (machine head)
JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
600VA
0.5MPa (5kgf/cm
20N /min
1,860mm (W) 970mm (D) 920mm (H)
270kg
Code Option
D Not provided
E Cloth suction
device (MC16)
Q
Other options are separately available.
T
K
L
M
ACF-164-1903
2
)
Code
Z
E
ACF-164-1903 (September, 2003) 1/2
