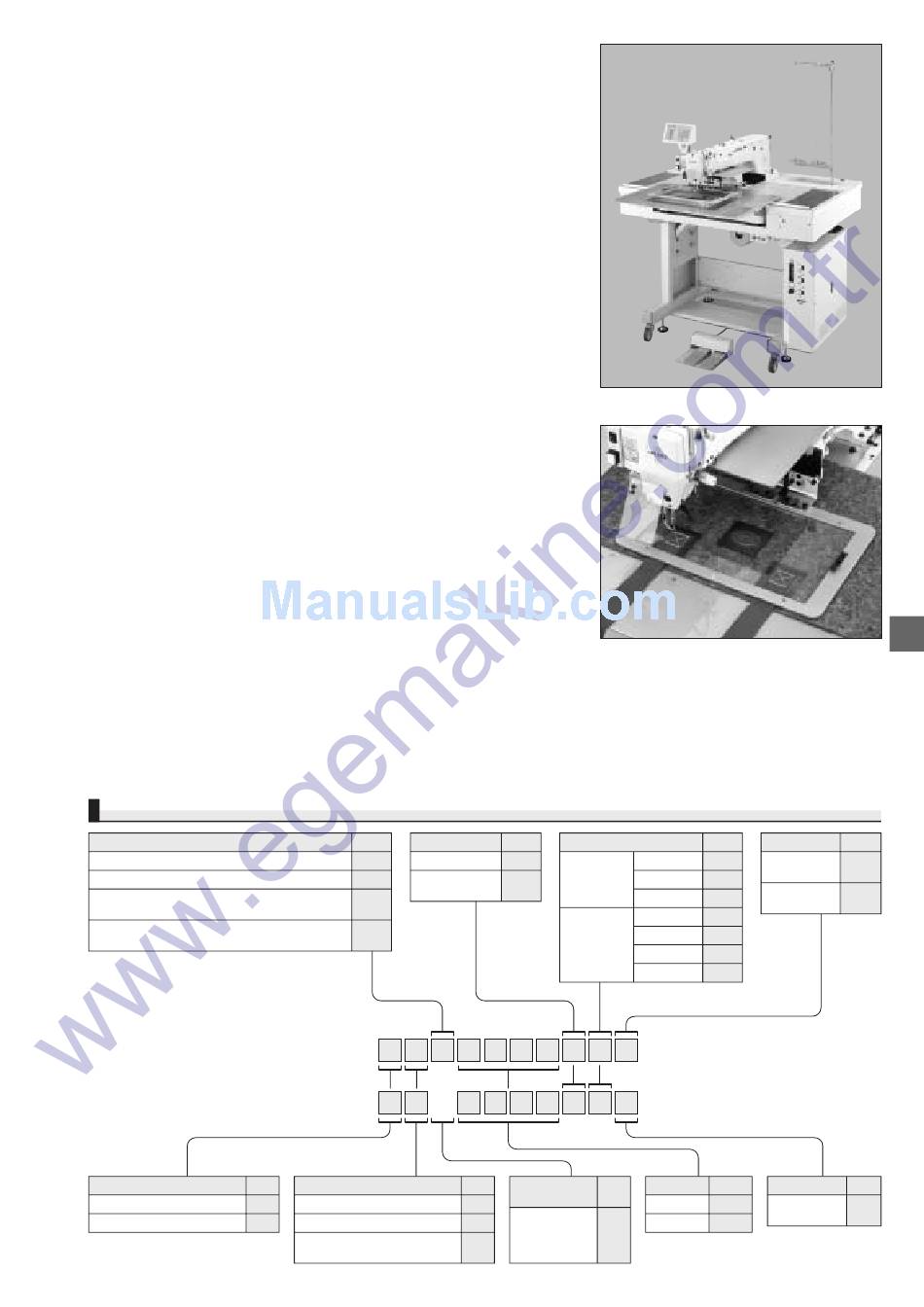

Computer-controlled Cycle Machine with Input Function
AMS-223C
Sewing area: 200mm(L) 300mm(W)
AMS-224C
Sewing area: 250mm(L) 400mm(W)
● Best-suited for sewing processes to attach small parts onto shoes or bags,
attach pockets onto garments, sew decorative stitches, etc.
● There is sufficient area under the arm (sewing area + free space 290mm
(AMS-223C) or 240mm (AMS-224C)).
● The feeding frame can go up as high as 30mm, which means that a heavy-
weight material can be handled with ease.
● The feeding frame can also be manually lowered.
to finely adjust the position of the material to be sewn.
● The machine is capable of sewing at a speed as high as 2,000rpm
(when the stitch length is set to 3mm (AMS-223C) or 2.7mm (AMS-224C)).
● The machine is equipped with a large hook which reduces the frequency that
the bobbin thread needs to be replaced.
● The machine ensures accurate stitching with a resolution as precise as 0.1mm.
● The newly-developed XY mechanism further improves strength and rigidity of
the feed.
● Thread trimming mechanism ensures highly-improved reliability.
Computer-controlled Cycle Machine with Input Function
for Wider Area Perfect Stitching
AMS-223P
Sewing area: 200mm(L) 300mm(W)
AMS-224P
Sewing area: 250mm(L) 400mm(W)
● As a result of JUKI's thorough study of sewing performance, the area in which
hitch stitches appears is reduced to one-third or less of the area produced
with conventional cycle machines.
with perfect stitches is enlarged, and the seam quality of top stitches is
further upgraded.
● Since the feeding direction of the hitch stitching area is restricted to a range
of 5˚to 55˚, each of the four different feeding directions (0˚, 90˚, 180˚and
270˚) used to sew the four sides of a rectangular label can be finished with
perfect stitching.
WHEN YOU PLACE ORDERS
Feeding frame type
Standard (pneumatic monolithic feeding frame)
Pneumatic double-stepped stroke feeding frame
Pneumatic inverted clamp
(with a double-stepped stroke feeding frame)
Pneumatic separately-driven feeding frame
(with a double-stepped stroke feeding frame)
• For the machine with sewing specification G, the feeding
frame that can be used with it is limited to S, B or L.
Machine head type Code
Standard C
Wider-area perfect stitching P
For the AMS-223P and AMS-224P,
only the application S and H are
applicable.
This allows the operator
Consequently, the sewing area finished
Code Option
S Not provided
B Automatic
bobbin changer
T
L
AMS223
AMS224 B
Application
Standard
For medium-weight materials
For heavy-weight materials with
double-capacity shuttle hook
Code Power supply
Y
Single-phase
B
3-phase
• AC 2P motor is used for the
sewing application type G.
Code Feeding frame
Code
type
S
Pneumatic
H
double-stepped
B
stroke feeding
G
frame
AMS-223C, 224C, 223P, 224P (September, 2003) 1/4
Code Pedal switch
100 130V D Standard
(2-pedal unit)
190 250V E
3-pedal unit
U.S.A.,115V H
(PK47)
190 250V F
380 440V G
U.S.A.,220V J
(JE)380V K
Subclass Code Pedal switch
Standard 5000
3-pedal unit
(PK47)
Subclass 5001
AMS-223C
11
Code
C
D
Code
D
