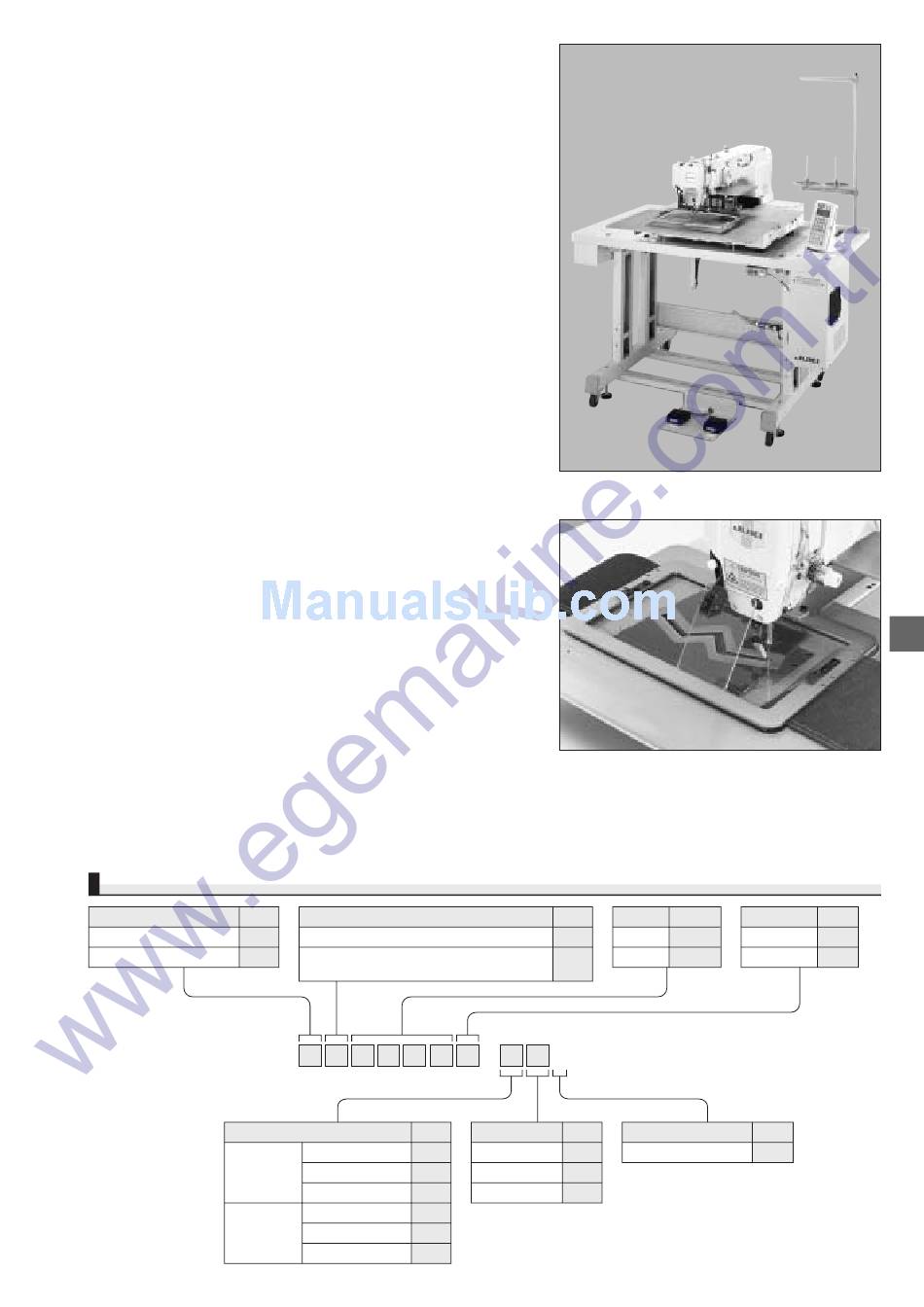

Computer-controlled Cycle Machine with Input Function
AMS-215D
Sewing area: 110mm(L) 220mm(W)
AMS-221D
Sewing area: 160mm(L) 250mm(W)
● The machine runs at a sewing speed of 2,500rpm
achieved in a machine provided with only a medium-sized sewing area.
Its jump speed and thread trimming speed are also extremely high,
effectively doubling those of conventional machines.
cycle time, the machine dramatically increases productivity.
● With its direct-drive machine head (beltless) directly joined to a compact
AC servomotor, the machine provides improved responsiveness and
upgraded stop accuracy.
high-speed operation, thereby achieving a comfortable working
environment.
● The machine is configured with JUKI's unique X Y feed mechanism built
into the bed. Stabilized by the outstanding strength and rigidity of its
feed mechanism, the machine promises the increased feed accuracy
required to produce high-quality seams even in difficult sewing processes
such as decorative pattern stitching.
● Since the X Y feed mechanism is built into the bed, the space under the
arm is both increased and flattened.
sewing products easily.
[Space under the arm] AMS-215D: Sewing area+253mm
AMS-221D: Sewing area+246mm
Computer-controlled Cycle Machine with Input Function
for Wider-area Perfect Stitching
AMS-215D P TYPE
AMS-221D P TYPE
● As a result of JUKI's thorough study of sewing performance, the area in
which hitch stitches appears is reduced to one-third or less of the area
produced with conventional cycle machines.
area finished with perfect stitches is enlarged, and the seam quality of
top stitches is further upgraded.
● Since the feeding direction of the hitch stitching area is restricted to a
range of 5˚to 55˚, each of the four different feeding directions
(0˚, 90˚, 180˚and 270˚) used to sew the four sides of a rectangular label
can be finished with perfect stitching.
WHEN YOU PLACE ORDERS
Application Code
Standard S
For heavy-weight materials H
215D
AMS
221D
Single-phase 200 240V
3-phase
the highest speed
With its shortened
Vibration and noise are reduced even during
It allows the operator to place
Sewing area: 110mm(L) 220mm(W)
Sewing area: 160mm(L) 250mm(W)
Consequently, the sewing
Feeding frame type
Pneumatic monolithic feeding frame (standard)
Pneumatic separately-driven feeding frame
(with double-stepped stroke function)
Power supply Code
100 120V C
K
220 415V R
200 240V D
220 415V L
220 415V (for CE) M
Code Subclass
S Standard
Subclass
L
Z B
Pedal switch Code Control panel
2-pedal unit A English and pictograph
PK 2-pedal unit C
PK 3-pedal unit D
Select "A" or "C" for the monolithic
feeding frame (specification: S) or "D"
for the double-stepped stroke
feeding frame (specification: L).
AMS-215D, 221D, 215D P TYPE, 221D P TYPE (September, 2003) 1/3
AMS-221D
AMS-221DSS
Code Stitch type Code
5000 Standard S
6001 Perfect stitch P
Code
B
