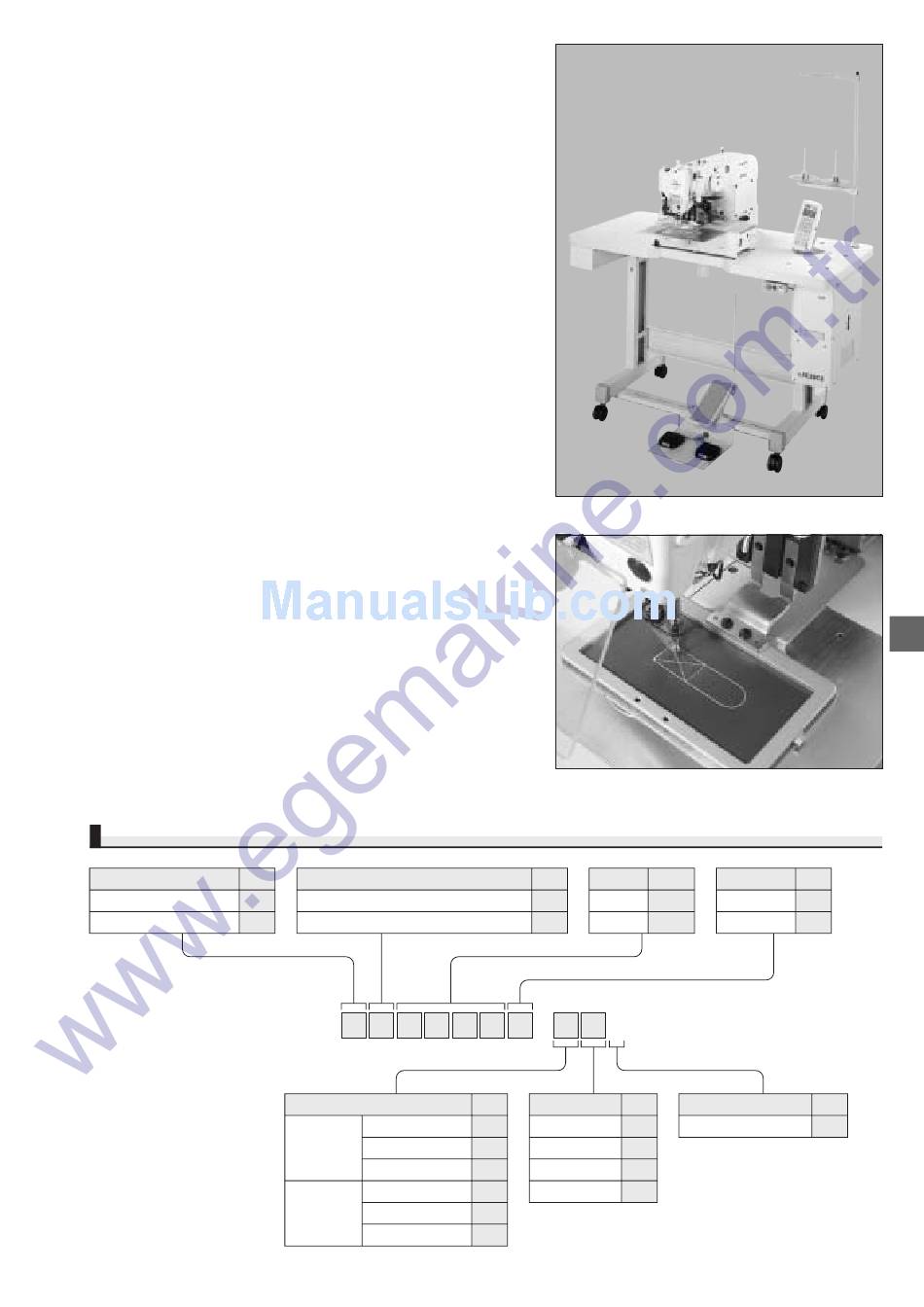

Computer-controlled Cycle Machine with Input Function
AMS-210D
Sewing area: 60mm(L) 130mm(W)
● With its newly designed thread take-up and shuttle hook, the machine
reduces irregular stitches and provides consistent thread tension.
● The feeding frame and the intermediate presser have been improved to
provide a higher pressure on the material.
material, they ensure consistent-quality seams free from uneven
material feed.
● The sewing capability has been improved further, especially sewing
heavy-weight materials with thick thread.
● High-speed performance of 2500rpm (when stitch length is set to 3mm).
● The lift of the feeding frame is now as high as 30mm (for pneumatic
feeding frame), and the lift of the intermediate presser has also been
extended to 20mm.
With these increased lifts, the material to be sewn can be easily placed
on the machine.
● The machine incorporates a direct-drive mechanism that connects a
compact AC servomotor directly to the main shaft.
motor revolutions to the main shaft with no loss, thereby improves the
machine's responsiveness.
Computer-controlled Cycle Machine with Input Function
for Wider-area Perfect Stitching
AMS-210D P TYPE
● As a result of JUKI's thorough study of sewing performance, the area in
which hitch stitches appears is reduced to one-third or less of the area
produced with conventional cycle machines.
sewing area finished with perfect stitches is enlarged, and the seam
quality of top stitches is further upgraded.
● Since the feeding direction of the hitch stitching area is restricted to a
range of 5˚to 55˚, each of the four different feeding directions
(0˚, 90˚, 180˚and 270˚) used to sew the four sides of a rectangular
label can be finished with perfect stitching.
WHEN YOU PLACE ORDERS
Application Code
Standard S
For heavy-weight materials H
AMS210D
By securely clamping the
This transmits
Sewing area: 60mm(L) 130mm(W)
Consequently, the
Feeding frame type
Magnet-driven feeding frame
Pneumatic separately-driven feeding frame
Power supply
100 120V
Single-phase 200 240V
220 415V
200 240V
3-phase 220 415V
220 415V (For CE)
Code Subclass
S Standard
L Subclass
Z B
Code Pedal switch Code
C 2-pedal unit A
K 3-pedal unit B
R PK 2-pedal unit C
D PK 3-pedal unit D
L For using magnet-driven feeding frame type,
please select A or C type. (Standard: C type)
M
For using Pneumatic separately-driven feeding
frame type, please select B or D type.
AMS-210D
AMS-210D (P type)
Code Stitch type Code
5000 Standard S
6001 Perfect stitch P
Control panel Code
English and pictograph
