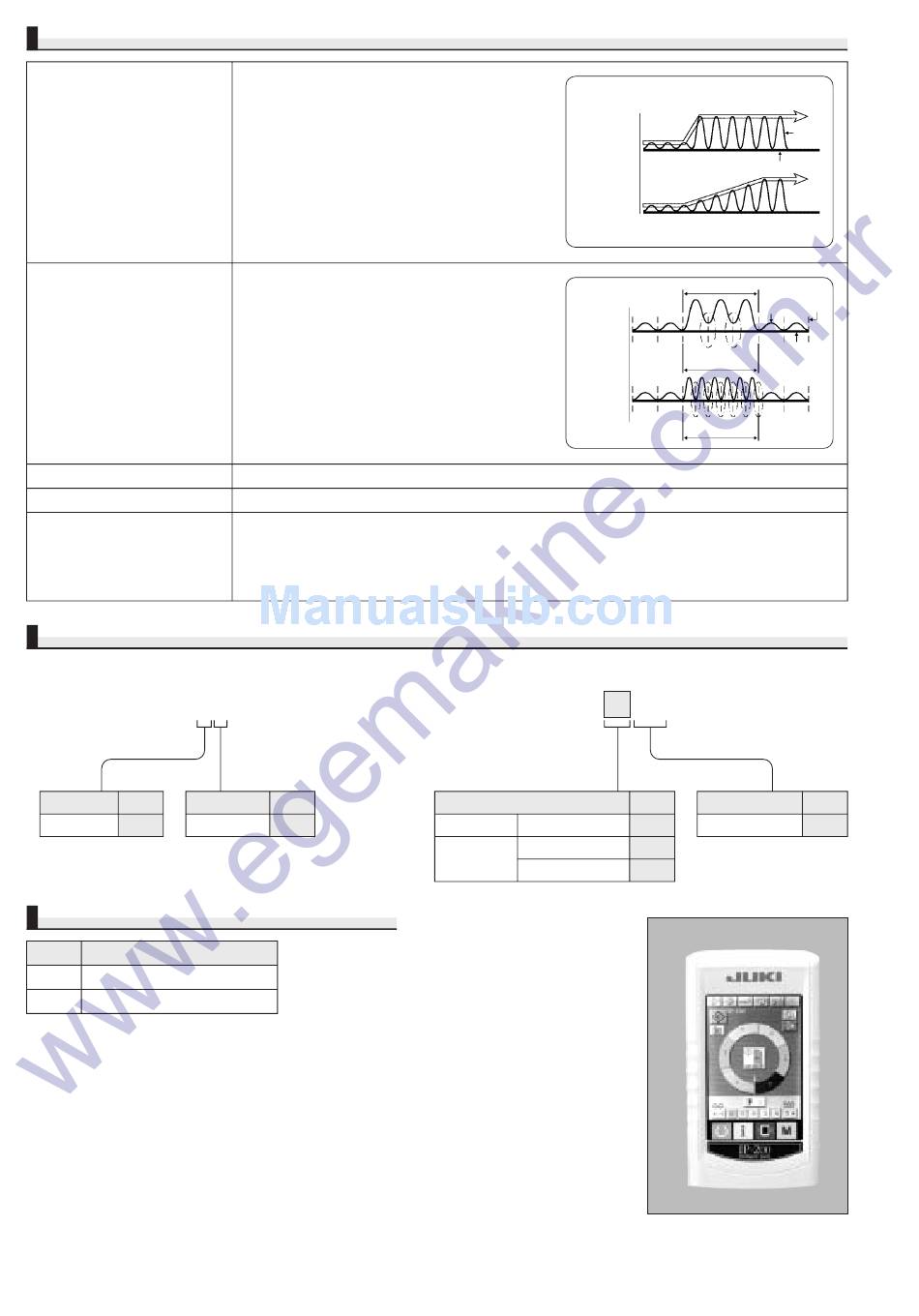

FUNCTION
Smoothing function
Correction pitch setting function
Teaching function
Grading function
Mirroring function
WHEN YOU PLACE ORDERS
● Machine head
DP2100SZ
Application Code
Standard S Not provided
OPTIONS
Model Description
JTDP10 Table stand (not provided casters)
ST2 Auxiliary table
DP-2100 (August, 2004) 2/2
The machine prevents an abrupt change in the shirring
amount at the sewing-step changing point by utilizing a
smoothing function. This upgrades the finished quality of
the seams.
The stitch pitch can be changed on a portion-by-portion
basis. Seam grinning can be prevented by decreasing the
stitch length at a portion where the shirring amount is
large.
Total sewing length is stored in the memory when sewing the portion between notch markes.
This enables the quick and easy programming of sewing data.
When basic data is entered, the data is developed on a size-by-size basis. This helps save the operator from
future program entering work When a program for sewing either sleeve is entered, a program for sewing the
remaining sleeve is automatically created. This helps save the operator from program entering work. It is also
possible to incorporate a change made to either sleeve sewing program into the remaining sleeve program by
means of the mirroring function.
Option Code
Z
The smoothing
function is
turned OFF.
The smoothing
function is
turned ON.
The correction
pitch function
is not used.
The correction
pitch function
is used.
● Control box
MC650
Power supply
3-phase 200 240V
200 240V
Single-phase
200 240V (for CE)
Sleeve
Garment body
Shirred portion
Needle
entry
Sleeve
Garment body
Thread is not
adequately tensed.
Thread is well
tensed.
PC
Code Operation panel
E IP-200C
K
N
IP-200C
Code
PC
