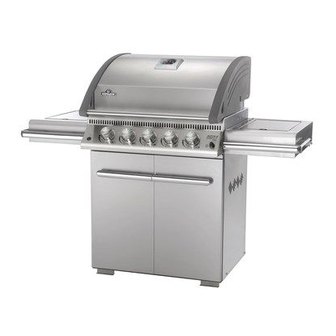

Page 1 APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO. LIFESTYLE 485 L485, L485RB, L485SB, L485SIB, L485RSB, L485RSIB WARNING DANGER Do not try to light this appliance without reading the “LIGHTING” instructions section of IF YOU SMELL GAS: this manual.
Page 2: Conditions And Limitations
NAPOLEON will not be responsible for the installation, labor or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty.
Page 3: Safe Operating Practices
Never use natural gas in a unit designed for liquid propane gas. • Never use lighter fluid in a gas grill. • Use charcoal briquettes only with a Napoleon charcoal tray designed for this unit. • Burner controls must be off when turning supply cylinder on. •...
Page 4: Electrical Precautions
Electrical Precautions WARNING! Failure to follow these instructions could result in property damage, personal injury or death. • To protect against electric shock, do not immerse cord or plugs in water or other liquid. • Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
Page 5: Natural Gas Hook-Up
Propane Cylinder Installation Cylinder Connection: Ensure that the gas regulator hose is kink free. Remove the cap or plug from the cylinder fuel valve. Insert the black QCC1 regulator nipple onto the QCC1 fuel valve. Hand tighten clockwise. Do not use tools.
Page 6: Leak Testing Instructions
Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
Page 7: Lighting Instructions
Lighting Instructions Side Burner Lights Left Burner Centre Burner Right Burner Side Burner Igniter Rear Burner Off Position WARNING! Open lid WARNING! Ensure all burner controls are in the off position. Turn on the gas supply valve. Main Tube Burner Rear Burner Lighting Side Burner Lighting Lighting...
Page 8: Operating The Grill
Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Direct Cooking: Place food to be cooked on the grill directly over the heat. This method is generally used for searing or for foods that do not require prolonged cooking times such as hamburgers, steaks, chicken pieces, or vegetables.
Page 9 Any juices or oils that escape from the food drip onto the charcoal and vaporize into smoke giving the food its delicious grilled taste. The Napoleon infrared burner cooks in the same way. In each burner, 10,000 ports – each with its own tiny flame – cause the surface of the ceramic tile to glow red. This glow emits the same type of infrared heat to the food as charcoal, without its hassle or mess.
Page 10 This helps it to cook faster and more evenly. To add a trademark taste to your cooking, try adding mesquite-flavoured woodchips to your Napoleon woodchip smoker. Pork chops Medium 6 min. per side Trim off the excess fat before grilling.
Page 11: Maintenance / Cleaning Instructions
Maintenance / Cleaning Instructions We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. WARNING! Always wear protective gloves and safety glasses when cleaning your grill. WARNING! To avoid the possibility of burns, maintenance should be done only when the grill is cool. Avoid unprotected contact with hot surfaces.
Page 12 WARNING! Hose: Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer. Tube Burner: The burners are made from heavy wall 304 stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to occur.
Page 13: Troubleshooting
does not entirely eliminate the problem. A nest or web can cause the burner to burn with a soft yellow or orange flame or cause a fire (flashback) at the air shutter beneath the control panel. To clean the inside of the burner, it must be removed from the gas grill: Remove the screw that attaches the burner to the back wall.
Page 14 Cracked ceramic tile. Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly. Leaking gasket surrounding the ceramic tile, or Contact your authorized Napoleon dealer a weld failure in the burner housing.
Page 15: Ordering Replacement Parts
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY. Ordering Replacement Parts Warranty Information MODEL: DATE OF PURCHASE: SERIAL NUMBER: (Record information here for easy reference) Before contacting the Customer Care Department, check the NAC Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleongrills.com.
Page 16: Getting Started
CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.
Page 17: Magnet Installation
1 X N430-0002 1. Magnet Installation Snap magnet into slot in front of bottom shelf. 16 X N570-0073 (1/4-20 X 3/8”) 16 X N450-0027 (1/4-20) 3/8”(10mm) 7/16”(11mm) 2. Caster/Bracket Installation Attach (4) casters, using (4) ¼ -20 x 3/8” screws and (4) ¼ -20 lock nuts for each caster. Attach brackets under front casters as illustrated.
Page 18 Propane Only 3. Propane Tank Ring Installation Insert propane tank ring into slots in bottom of shelf as shown. Fold tabs over to secure in place. 4 x N570-0080 (#14 x 1/2”) 3/8”(10mm) 4. Left and Right Cart Panel Installation Install end cart panels ensuring slots in panel are to the top, rest panel on bottom shelf and line up holes.
Page 19 6 x N570-0080 (#14 x 1/2”) 6 x N570-0078 (M4 X 8mm) 6 x N450-0032 (M4 LOCK NUTS) 3/8”(10mm) 5. Transformer/Rear Cart Panel Installation Install the transformer and the power bar onto the rear panel as illustrated using (6) M4 x 8mm screws and (6) M4 lock nuts. Route the power cord through the rubber grommet in the rear panel.
Page 20 1 x N570-0080 (#14 x 1/2”) 3/8”(10mm) 6. Tank Inhibitor Bracket / Propane Tank Mount Installation Insert tank inhibitor bracket into slot in rear panel as illustrated. Fasten to bottom panel using (1) #14 x 1/2” screw. Clip top propane tank mount into slots in back panel. Insert one end at a time, gently bending wire. (When not in use tank mount will lay flat against back panel).
Page 21: Heat Shield Installation
4 x N570-0080 (#14 x 1/2”) 1 X N430-0002 3/8”(10mm) 7. Front Cabinet Support Installation Fasten top rail assembly to the front of side panels using (4) #14 x 1/2” screws. For ease of installation start all screws before tightening completely. Snap magnet into place as shown. 4 x N570-0080 (#14 x 1/2”) 3/8”(10mm) 8.
Page 22: Grill Head Installation
4 x N570-0091 (1/4-20 X 1/2”) 3/8”(10mm) 9. Grill Head Installation L485RSIB MODELS - Are equipped with internal lights. To avoid assembly difficulties, prior to mounting grill head remove the zip tie holding the wire connectors in place. (Take care when removing the tie not to damage the wires). Ensure the wires drop inside the cart and do not become pinched between the grill head and the cabinet when mounting the grill head.
Page 23 2 x N570-0073 (1/4-20 X 3/8”) 1 x N640-0001 3/8”(10mm) 10. Transformer / Rotisserie Mount Installation (RSIB MODEL) Connect the two wire connectors from the lights to the two wire connectors coming from the transformer. Install rotisserie mount bracket to left side of barbecue as shown using (2) 1/4 – 20 x 3/8” screws. Battery Pack / Rotisserie Mount Installation (RSB MODEL) Install battery pack below vent slots on left hand panel using magnet supplied with battery pack.
Page 24 4 x N570-0080 (#14 x 1/2”) 4 x N735-0007 (1/4”) 3/8”(10mm) L485/L485RSB MODEL 11. Assembling Handles to Side Shelf Peel protective coating from side shelf. Attach a handle to the front of each side shelf as shown using (2) #14 X 1/2” screws.
Page 25: Side Shelf Installation
4 x N570-0082 (1/4-20 X 5/8”) 4 x N735-0001 (insulated washer) 3/8”(10mm) 12. Side Shelf Installation Insert (4) ¼-20 x 5/8” screws through the washers into the threaded holes in the side of the base; do not tighten all the way. Slide the assembled side shelf over the screw heads and finish tightening.
Page 26 3/8”(10mm) 4 x N570-0082 (1/4-20 X 5/8”) 4 x N735-0001 (insulated washer) 1 x N160-0016 (clip) 13. Side Burner Installation Insert (4) ¼-20 x 5/8” screws through the washers into the threaded holes in the side of the base; do not tighten all the way.
Page 27: Cabinet Door Installation
4 x N570-0080 (#14 x 1/2”) 2 x N105-0011 (door bushing) 3/8”(10mm) 14. Cabinet Door Installation Install door handle onto front of door using (2) #14 x 1/2” screws per door. Insert pivot rod through hole on inside top of door. Holding door in one hand, direct pivot rod into hole in underside of front cabinet support.
Page 28 15. Sear Plate Installation Insert sear plates into base, position one over each tube burner with slots down to allow drippings to travel through. 16. Grids and Warming Rack Installation Position grids and warming rack into base as shown. Rest warming rack on brackets inside hood and grids on front and back lip of base.
Page 29: Grease Tray And Holder Installation
17. Grease Tray and Holder Installation Clip the wire grease tray holder into the two holes located in the center of the back panel. Place the aluminum grease tray into the grease tray holder. disposable grease tray 18. Drip Pan Installation Slide drip pan into rear of base as shown.
Page 30 Rotisserie Kit Assembly Instruction (rotisserie kit is optional) Assemble rotisserie kit components as shown. Ensure stop bushing is tightened on the inside of hood casting. www.napoleongrills.com...
Page 31: Power Supply
Providing Power To Your Grill (485RSIB MODEL ONLY) CAUTION! To ensure protection against electric shock, use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor gas cooking appliance. To provide power to your grill, plug a grounded electrical cord into the electrical box installed in the rear panel of your grill as shown.
Page 32 1 x N640-0001 Propane Only – Proper Hose Connection Ensure the regulator drops into the small opening, between the tank heat shield and the right side of the cabinet. Clip hose to side panel using hose retainer clip supplied. Propane Only – Improper Hose Connection WARNING –...
Page 33 3/4”(19mm) 1 x N640-0001 Natural Gas Only – Proper Hose Connection WARNING! The installation must be performed by a licensed gas fitter, and all connections must be leak tested before operating the grill. Do not use pipe dope or teflon tape on this connection. Clip hose to side panel using hose retainer clip supplied.
Page 34 Natural Gas Only – Improper Hose Connection WARNING – FIRE HAZARD WARNING! Do not route hose underneath drip pan. WARNING! Do not route hose over top of rear panel. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.
Page 35 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
Page 36 L485 Parts List Item Part # Description L485 N135-0030G lid side casting left N135-0031G lid side casting right N335-0050 stainless steel lid insert N585-0066 lid heat shield N510-0010 black silicone lid bumper N685-0006 temperature gauge N385-0129 NAPOLEON logo W450-0005 logo spring clips...
Page 37 L485 Parts List Item Part # Description L485 N120-0012 end cap control panel right N325-0062 side shelf handle N475-0265 control panel N655-0124S front cabinet support N475-0183S left/right side panel cabinet enclosure N160-0014 grease tray holder N185-0001 grease tray foil N710-0062...
Page 38 L485 PARTS DIAGRAM www.napoleongrills.com...
Page 39 N335-0050 stainless steel lid insert N585-0066 lid heat shield N510-0010 black silicone lid bumper N685-0006 temperature gauge N385-0129 NAPOLEON logo W450-0005 logo spring clips N010-0652 lid handle N080-0252G lid handle cover N570-0015 lid pivot screw N570-0073 1/4-20 x 3/8»...
Page 40 L485RSB Parts List Item Part # Description L485RSB N120-0012 end cap control panel right N325-0062 side shelf handle N475-0266 control panel N655-0124S front cabinet support N475-0183S left/right side panel cabinet enclosure N160-0014 grease tray holder N185-0001 grease tray foil N710-0062 grease tray aluminium N475-0271S rear cart panel...
Page 41 L485RSB Parts List Item Part # Description L485RSB N455-0062 side burner orifice #60 N455-0063 side burner orifice 1.45 mm N725-0040 side burner valve N725-0041 side burner valve N160-0016 side burner hose/orifice retainer clip N570-0091 1/4-20 x 1/2» screw -sharp N190-0001 battery pack W043-0002 battery «AA’...
Page 42 L485RSB PARTS DIAGRAM www.napoleongrills.com...
Page 43 N335-0050 stainless steel lid insert N585-0066 lid heat shield N510-0010 black silicone lid bumper N685-0006 temperature gauge N385-0129 NAPOLEON logo W450-0005 logo spring clips N010-0652 lid handle N080-0252G lid handle cover N570-0015 lid pivot screw N570-0073 1/4-20 x 3/8»...
Page 44 L485RSIB Parts List Item Part # Description L485RSIB N325-0062 door handle N475-0283 control panel N655-0124S front cabinet support N475-0183S left/right side panel cabinet enclosure N160-0014 grease tray holder N185-0001 grease tray foil N710-0062 grease tray aluminium N475-0271S rear cart panel N160-0015 propane tank clip N080-0254S...
Page 45 L485RSIB Parts List Item Part # Description L485RSB N105-0001 bushing 7/8» N455-0062 side burner orifice #60 N455-0063 side burner orifice 1.45 mm N725-0040 side burner valve N725-0041 side burner valve N160-0016 side burner hose/orifice retainer clip N707-0003 transformer lights N175-0002 electrical connector N460-0002 receptacle...
Page 46 L485RSIB PARTS DIAGRAM www.napoleongrills.com...
Page 47 ELECTRICAL CIRCUIT DIAGRAM (FOR MODELS WITH INTERNAL LIGHTS ONLY) www.napoleongrills.com...
Page 48 FAX TO: 705 727 4282 ACCESSORIES & PARTS ORDER FORM PLEASE PRINT CLEARLY CONTACT NAME:______________________________________________________________________ SHIP TO :_____________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ TEL :_________________________________ FAX :______________________________ EMAIL: __________________________________________________________________ VISA OR MASTERCARD # :_______________________________________ EXPIRY DATE: _____________ SIGNATURE:_____________________________________________________________________________ QUANTITY PART NUMBER DESCRIPTION TAXES MAY APPLY SHIPPING EXTRA IF CONFIRMATION IS REQUIRED PLEASE INCLUDE A FAX NUMBER OR EMAIL ADDRESS...
