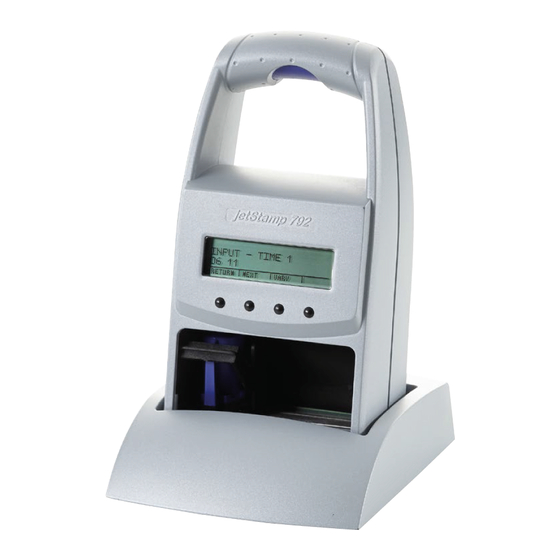

Reiner jetStamp 792 Operating Instructions Manual
Electronic hand stamp with flexible impression selection
Hide thumbs
Also See for jetStamp 792:
- User manual (42 pages) ,
- Operating manual (73 pages) ,
- Short instructions (88 pages)
Subscribe to Our Youtube Channel
Related Manuals for Reiner jetStamp 792
Summary of Contents for Reiner jetStamp 792
-
Page 1: Operating Instructions
Operating instructions jetStamp 792 Electronic hand stamp with Flexible Impression Selection Version 2.2... - Page 2 © 2003 Ernst Reiner GmbH & Co. KG All rights reserved. Translations, reprints, or any other form of reproduction of this manual, even in part and regardless of form, require prior written permission. This operating instruction is subject to change without prior notice.
-
Page 3: Table Of Contents
Table of contents Safety instructions ..................Control elements ..................Commissioning .................... Display zones and button functions ............. Impression selection ..................Stored impressions ..................Customer-specific impressions ..............Setting time and date .................. Setting numbering device or figures ............Setting pre-texts ................... Stamping ...................... -
Page 4: Safety Instructions
• The ink in the ink cartridge is a hazardous substance! Never hold the lower face of the jetStamp 792 against a person's face Keep ink cartridges out of the reach of children •... -
Page 5: Control Elements
Control elements Base station jack bush for power supply Trigger Display Buttons Locking rail for ink cartridge Ink cartridge Locating tab jack bush for remote triggering... -
Page 6: Commissioning
Commissioning Unpack the stamp, connect the mains unit to jetStamp 792, plug in the mains unit and switch on the power supply. Note: Use only original REINER components! Place jetStamp in the base station, take care of the following points: •... -
Page 7: Display Zones And Button Functions
Display zones and button funcitons The display is divided into three zones: The top line is the status line. On the left is the number of the impression selected (P:01 ... P:29) . To the right of that, if the impression includes numbering, is the repetition setting (e.g. -
Page 8: Impression Selection
Impression selection A total of 25 different standard impressions are stored (see pages 9 / 10). These contain the individual printing fields 'Pre-text' 'Numbering device' 'Date' 'Time . A 'pre-text' can be selected from 12 standard texts, or switched off (see page 15). -
Page 9: Stored Impressions
Stored impressions Impressions P : 01 ... P : 04 = pre-text + date P : 01 P : 02 RECUD 24. SEP 2006 RECUD 24. 09. 2006 CLOCK NO/TXT NEXT MODE CLOCK NO/TXT NEXT MODE P : 03 P : 04 RECUD 2006 - 09 - 24 RECUD... - Page 10 Stored impressions Impressions P : 11 ... P : 14 = numbering device + pre-text + date P : 11 R : 01 / 01 P : 12 R : 01 / 01 00000000 00000000 RECUD 10. SEP 2006 RECUD 10.
-
Page 11: Customer-Specific Impressions
Customer-specific impressions Impressions P : 26 ... P : 29 = customer-specific P : 26 ... P : 29 ------------------- ------------------- NO/TXT NEXT MODE P:26 ... P:29 are intended for individual, customer-specific impressions. Each impression can have two lines with up to 20 characters in each. Characters can be entered as follows: Select impression required (P:26 ... -
Page 12: Setting Time And Date
Setting time and date To set the time and date, an impression must first be selected that contains the date, or date and time as appropriate. First select an impression that contains the date, or date and time as appropriate (see also pages 8 and 9). Press [ MODE ] if necessary repeatedly, until the menu item “CLOCK”... -
Page 13: Setting Numbering Device Or Figures
Setting numbering device or figures The numbering device is used for the successive numbering of forms. Numbering can be increasing or decreasing. Further, various functions of the numbering device can be coupled together, e.g. repetition, zeroing, counting, activation of a minimum or maximum value, advance step, etc. Before the numbering device can be set, an impression, which uses the numbering device or figures, must be selected (see pages 9 / 10). - Page 14 Numbering device - setting starting point or figures : Press [ NEXT ] if necessary repeatedly, until the display shows “INPUT - NUMBERER 1” “INPUT - NUMBER 1” INPUT - NUMBERER 2 INPUT - NUMBER 2 Only available with a customer-specific impression (P:26 ... P:29), which has been prepared using PC-Set Press [ VARY ] to select the first position of the entry Set this digit by using [ INC ] to increase, or [ DEC ] to decrease it...
-
Page 15: Setting Pre-Texts
Setting pre-texts There are 12 different standard pre-texts stored in the stamp for each language. The set pre-text (or blanks if pre-text is switched off) is printed with all standard impressions which include a pre-text. The following standard pre-texts are stored : RECUD INU. -
Page 16: Stamping
Stamping Stamping will be triggered by pressing the red trigger, which is located in the grip. Depending on the impression selected, the impression will have one or two lines. The position of the two lines, relative to the base of the stamp, can be seen in the illustration below. -
Page 17: Changing The Ink Cartridge
• Replacement ink cartridges are available with the order number 801 307 - 000 on REINER stock The ink in the ink cartridge is harmful. Never swallow it! Always keep the ink cartridge out of the reach of children! - Page 18 Dirt and dried up ink at the holder of the ink cartridge can be removed with a soft cleaning cloth moistened in spirit (see figure 2) Insert the new ink cartridge: Take the ink cartridge from the packaging and remove the coloured protection film from the ink cartridge (see figure 3) Residual ink on the silver plate...
-
Page 19: Setup Module
Setup module The Setup module contains the following two main menus: SETTINGS: Enables comprehensive, extensive changes to settings to be carried out, which, among other things, influence the impression and the handling of the stamp. UPDATE: In combination with the optional PC - Set, the program in jetStamp can be updated. -
Page 20: Description Of The Setup Module
Description of the Setup module Press, repeatedly if necessary MODE (Enter password if required) SETUP UPDATE SETTINGS NEXT CALL CALL FIRMWARE ALL START Update firmware, NEXT standard impressi- See next page ons and standard pre-texts. FIRMWARE PART START Update Firmware NEXT without impressions and without pre-... - Page 21 SETTINGS UPDATE NEXT CALL STAMP PICTURE Activate impression (01 ... 29) VARY NEXT Add impression(s) to favourites list SET STAMP PICT CALL Only impressions marked 'ON' are shown NEXT when [ NEXT ] is pressed (see also page 8, 'Impression selection') SEL ST PICT ALL all impressions selectable no impression selectable...
- Page 22 CHANGE LINE Exchange lines (OFF / ON) VARY ON = top and bottom lines of impression NEXT exchanged Leading zeros on numbering device PRE CHAR 0 VARY ON = leading zeros displayed and printed NEXT OFF = leading zeros suppressed Mode setting for numbering device 1 MODE NUM 1 VARY...
- Page 23 Ink cartridge settings PRT CARTRIDGE VARY 1 = standard ink cartridge NEXT 2 = ink cartridge with quick-drying ink rinsing every 8 seconds 3 = ink cartridge with quick-drying ink rinsing every 6 seconds 4 = ink cartridge with quick-drying ink rinsing every 4 seconds Print blockade setting BLOCK IMPRINT...
-
Page 24: Troubleshooting
Troubleshooting Display Cause Recommendation IMPRINT Time allowed by ‘Block Imprint’ Press [ QUIT ] : BLOCKED has expired, disappears trigger jetStamp is then ready has been pressed for use again Error 04 Memory error Press [ QUIT ] Error 09 •... -
Page 25: Sales And Technical Service
For further information, please contact one of the following: Sales - Germany: REINER Customer Service in Furtwangen Telephone: + 49 7723 657 221 E - mail: www.reiner.de/service Export Sales: REINER Customer Service in Furtwangen, Germany Telephone: + 49 7723 657 230 E - mail: www.reiner.de/service Your sales partner:... -
Page 26: Technical Data
Stamping cycle > 2 seconds Print capacity per ink cartridge approx. 300.000 characters Dimensions, jetStamp 792 only (W x D x H in mm) 95 x 70 x 170 Dimensions, charging station only (W x D x H in mm) 102 x 135 x 32... - Page 27 Ernst REINER GmbH & Co. KG Postfach 1351 D - 78115 Furtwangen Telephone + 49 7723 6570 + 49 7723 657200 E-Mail reiner@reiner.de Internet www.reiner.de 790 103 - 021 b 04 / 07...
