Dynabrade 57220 Operating, Maintenance And Safety Instructions

Models:
57220 – 5" Non-Vacuum
57221 – 5" Vac-Ready
57222 – 5" Basic Vac
57223 – 5" Deluxe Vac
57224 – 5" Central Vac-Ready
57225 – 6" Non-Vacuum
57226 – 6" Vac-Ready
57227 – 6" Basic Vac
57228 – 6" Deluxe Vac
57229 – 6" Central Vac-Ready
WARNING
!
Index Key
No. Part # Description
1 Sanding Pads
56104 5" Vacuum
56105 6" Vacuum
56106 5" Non-Vacuum
56107 6" Non-Vacuum
2 95858 Shim
3 95859 Shim
4 57369 Shroud
5 57262 Balancer Shaft
6 95630 Snap Ring
7 95628 Bearing Shield
8 56053 Bearing Seal
9 56052 Balancer Bearing
10 Motor Shaft Balancer
57268 – 5"
57269 – 6"
11 54673 Rotor Key
12 96166 Set Screw
13 57332 Lock Ring
14 02695 Bearing
15 54630 Front Plate
16 54705 Rotor/Blade Set
17 54631 Cylinder Assy.
18 95865 Line-Up Pin
19 54629 Rear Plate
20 01206 Bearing
21 56713 Lock Assy.
22 56712 Switch (Bottom)
23 95529 O-Ring
24 Housing
57230 5" Non-Vac
57231 5" Vac-Ready
57232 5" Central Vac
57237 6" Non-Vac
57238 6" Vac Ready
57239 6" Central Vac
25 96252 Spring
26 56705 Post - Cap
27 57264 Post Assembly
28 56711 Switch (Top)
29 96489 Screw
30 95523 O-Ring (2)
31 57382 Gasket (Non-Vac)
57383 Gasket (Vac)
32 56671 Handle
33 96123 Screw (2)
34 57396 Valve Stem
35 95886 Flat-Washer (4)
36 01211 Lock Washer (6)
37 97010 Screw (4)
38 01464 Seal (2)
39 01472 Tip Valve
40 01468 Conical Spring
41 56673 Gasket
42 96328 O-Ring
43 98597 Retaining Ring
44 01089 Safety Lever
45 01017 Pin
46 56672 Adapter
47 01024 O-Ring (2)
48 57343 Speed Regulator
49 96421 Flat-Washer (2)
50 01788 Screw (2)
For Serial No. 1 B 1848 and Higher
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and
any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for
more complete safety information. See inside for Important Operating, Maintenance and Safety Instructions.
27
24
23
22
21
20
19
18
17
16
O
1
15
14
T
34 N•m
13
12
A
3
51 01494 Inlet Bushing
52 54199 Muffler Seat
(Non-Vacuum)
53 54195 Muffler (3)
(Non-Vacuum)
54 54194 Muffler Cap
(Non-Vacuum)

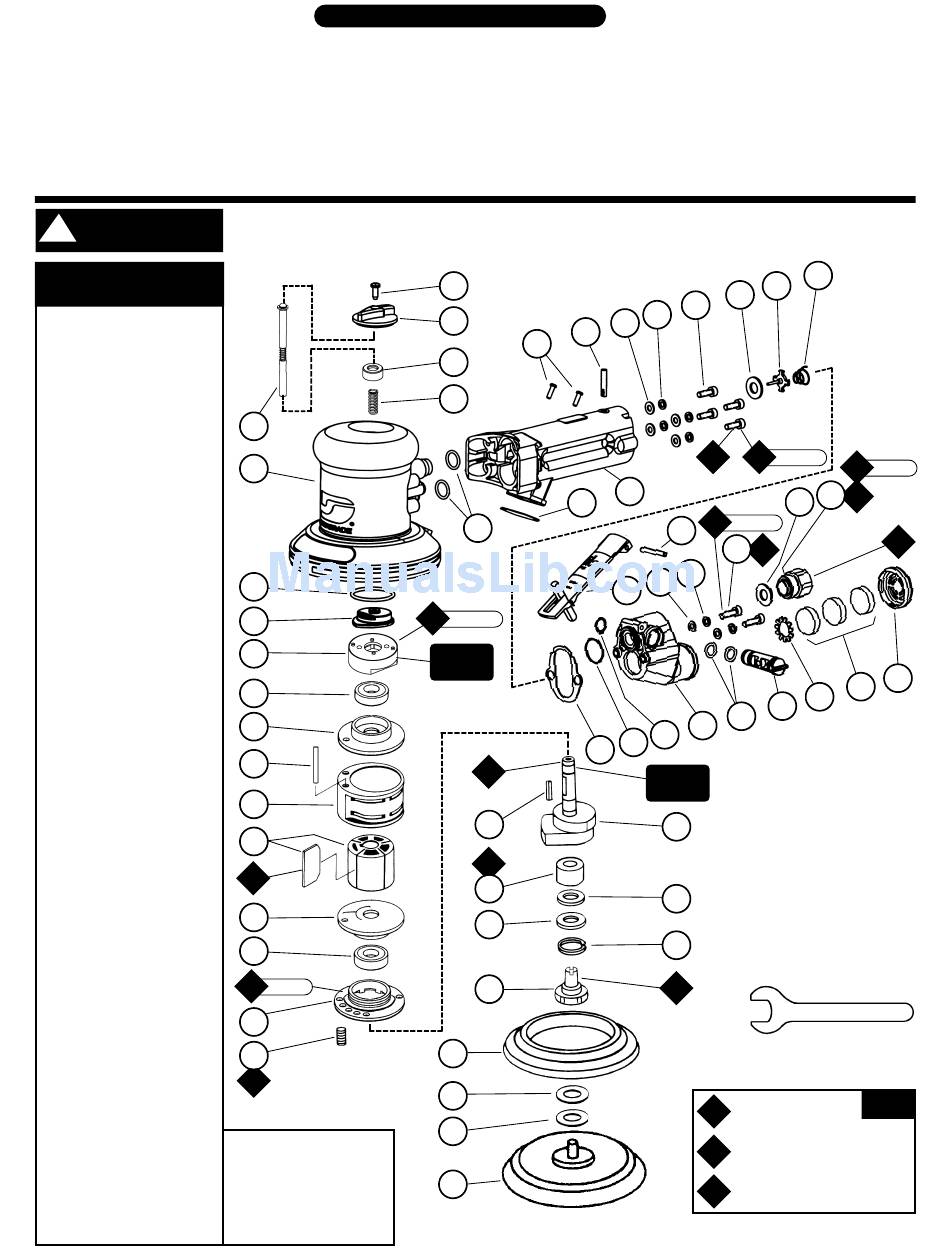

Dual Action Sander
29
28
34
33
26
25
31
30
T
12.4 N•m
Left Hand
Threads
41
A
3
11
A
2
9
7
5
4
3
2
1
Note: To order replacement parts specify the Model# and Serial# of your machine.
Parts Page Reorder No. PD01•60
Effective June, 2001
Supercedes PD00•78
Dynalocke
Air Motor and Machine Parts
39
38
37
36
35
A
T
3.38 N•m
3
32
38
T
3.38 N•m
45
A
50
3
36
49
44
48
47
46
43
42
Left Hand
Threads
10
8
6
A
2
50679 26 mm Wrench
O Oil: O = Air Lube
1
Adhesive: A
A
T
Torque: N•m x 8.85 = In. - lbs.
TM
40
T
23 N•m
A
51
2
O
1
54
53
52
KEY
= Loctite #271
2
A = Loctite #242
3
