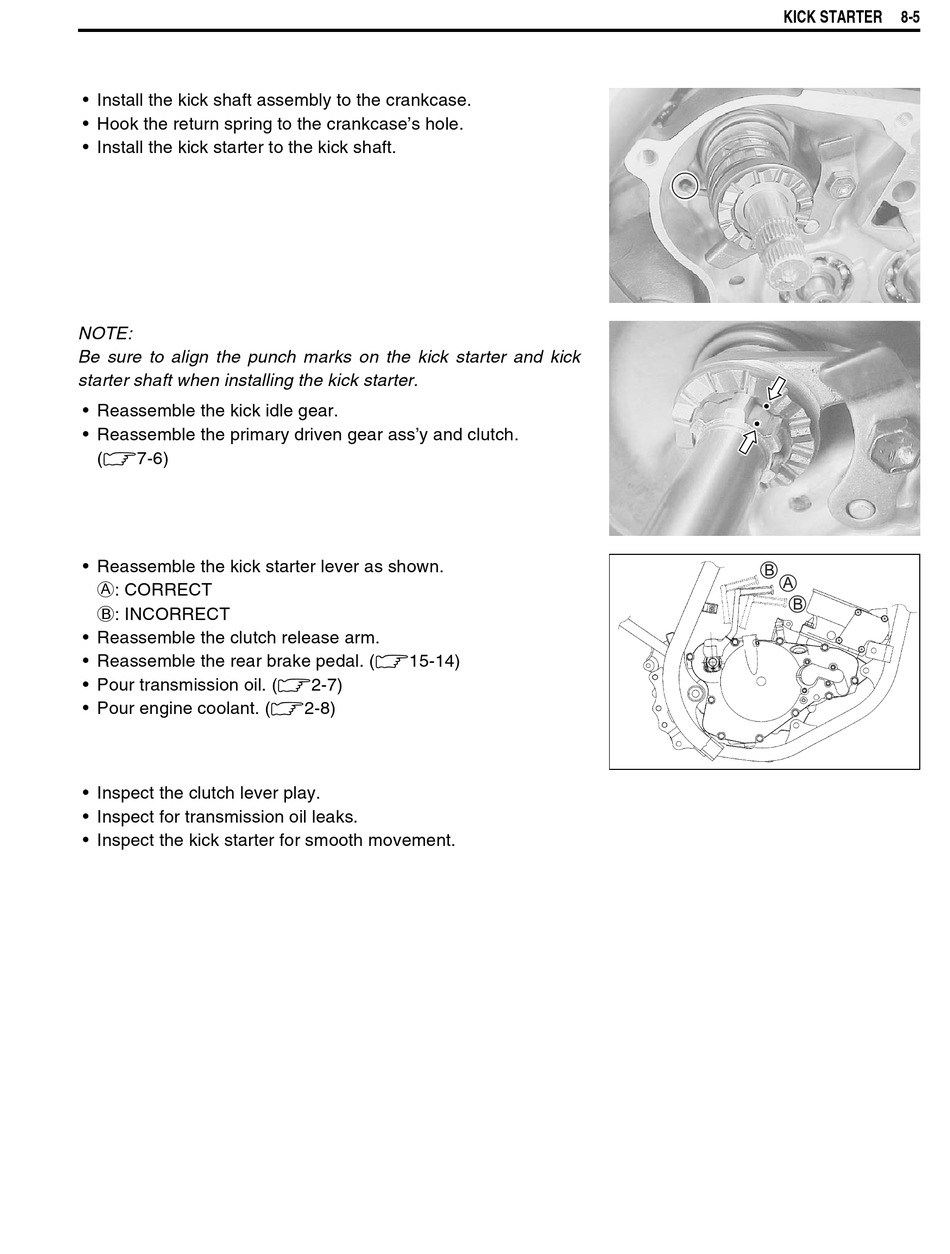

Suzuki RM85 Owner's Service Manual page 96

• Install the kick shaft assembly to the crankcase.
• Hook the return spring to the crankcase's hole.
• Install the kick starter to the kick shaft.
NOTE:
Be sure to align the punch marks on the kick starter and kick
starter shaft when installing the kick starter.
• Reassemble the kick idle gear.
• Reassemble the primary driven gear ass'y and clutch.
(7-6)
• Reassemble the kick starter lever as shown.
A: CORRECT
B: INCORRECT
• Reassemble the clutch release arm.
• Reassemble the rear brake pedal. (15-14)
• Pour transmission oil. (2-7)
• Pour engine coolant. (2-8)
• Inspect the clutch lever play.
• Inspect for transmission oil leaks.
• Inspect the kick starter for smooth movement.
KICK STARTER 8-5
