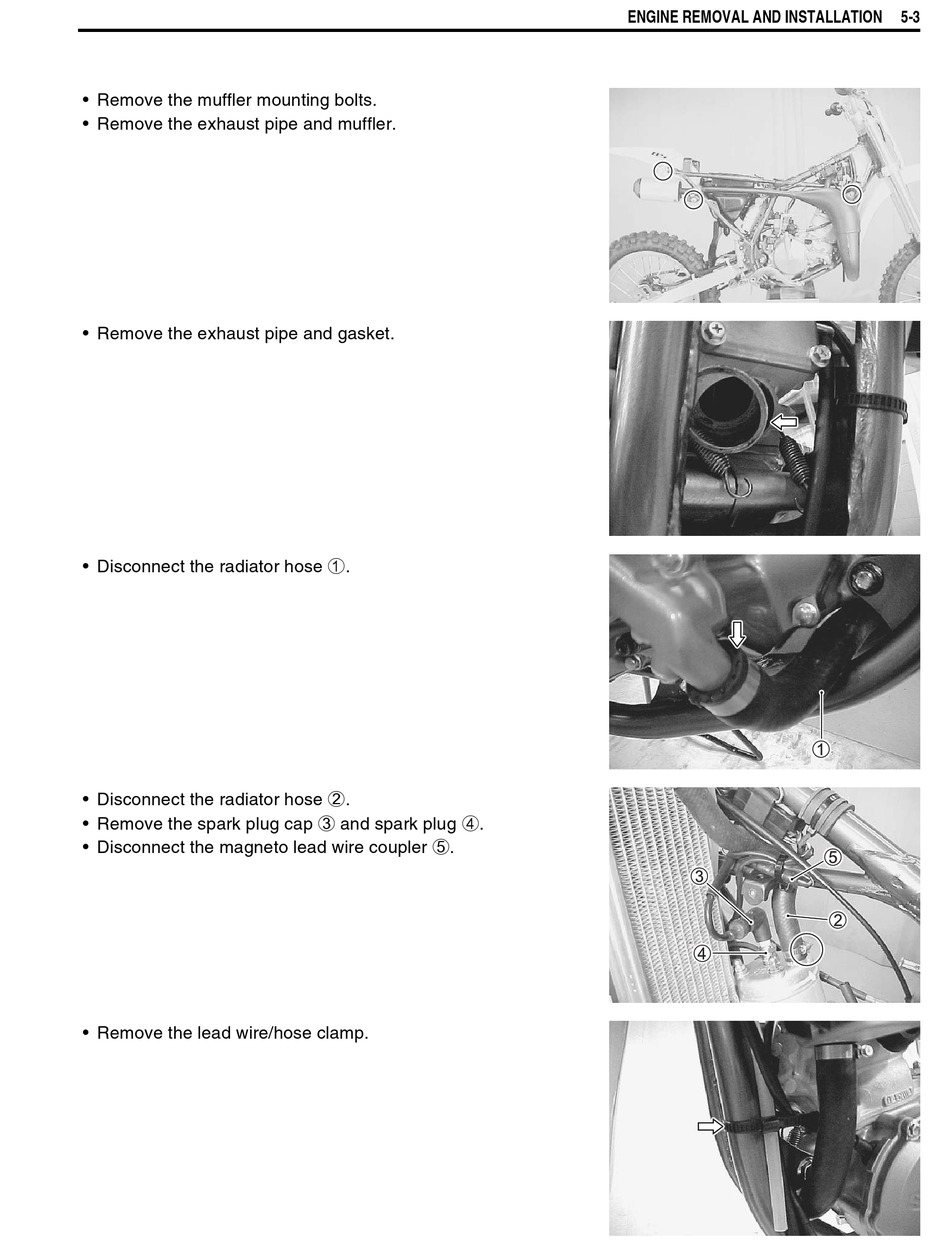

ENGINE REMOVAL AND INSTALLATION
5-3
• Remove the muffler mounting bolts.
• Remove the exhaust pipe and muffler.
• Remove the exhaust pipe and gasket.
• Disconnect the radiator hose 1.
• Disconnect the radiator hose 2.
• Remove the spark plug cap 3 and spark plug 4.
• Disconnect the magneto lead wire coupler 5.
• Remove the lead wire/hose clamp.
