CONTROL PANEL OPERATION

4.1 LAYOUT AND BUTTONS

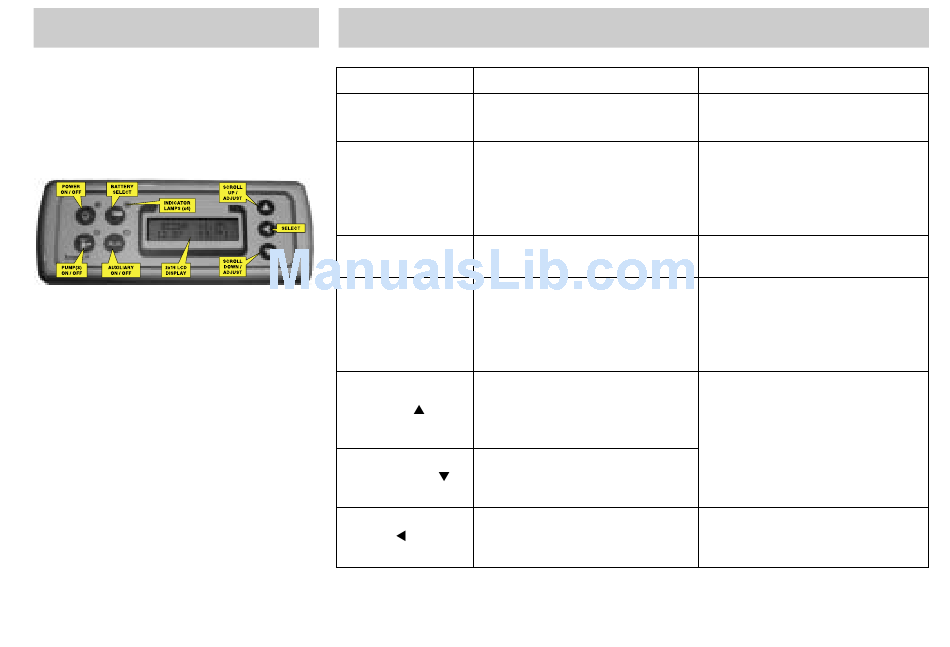

The following diagram shows the control
panel layout.
42
Item Function
Use to turn the main power on and
Power ON / OFF
off
Use to select the Leisure or Vehicle
battery as the supply source
Battery SELECT
Use to turn the water pump(s)
Pump ON / OFF
power on and off (see section 4.3)
Use to turn the Auxilliary power on
and off (see manufacturers
Aux ON / OFF handbook for detail of what items
are operated by the auxilliary
function)
Use to scroll the display up
(settings section of the menu) (see
Scroll UP
section 4.3)
Use to scroll the display down
Scroll DOWN (readings section of the menu) (see
section 4.2)
Use to select a menu item within
Select the settings section (see section
4.2 & 4.3)
Note: the display backlight operates for approximately 6 seconds after any key press
Options / Notes
The adjacent LED is illuminated
when the power is ON
The adjacent LED is illuminated
when the VEHICLE battery is
selected; by default the Leisure
battery is selected and is indicated
by the battery select LED off.
The adjacent LED is illuminated
when the pump power is ON
The adjacent LED is illuminated
when the auxilliary power is ON
Note: the menu screens operate in
a continuous loop, therefore you
can use either the UP or Down
buttons to move to any screen
Use to move to the next setting,
when entering alarm
