Butterfly Outlets - Swift Rio Owner's Handbook Manual

original Truma parts, or non-observance
of the instructions for installation and use
will result in the guarantee becoming
invalid and no liability will be assumed.
Furthermore the approval for operating
the appliance will become invalid and in
some countries also the approval for
operating the vehicle.
TECHNICAL DATA
Power supply: 230 V ~, 50 Hz
Power consumption at power setting:
500 W: 2.2 A
1000 W: 4.5 A
2000 W: 8.5 A
Weight: approx 2kg

BUTTERFLY OUTLETS

The butterfly plate may be opened or closed
to control the quantity of air and may also be
twisted around to control direction.
For uniform distribution, outlets nearest the
heater should be closed more than those
further away.

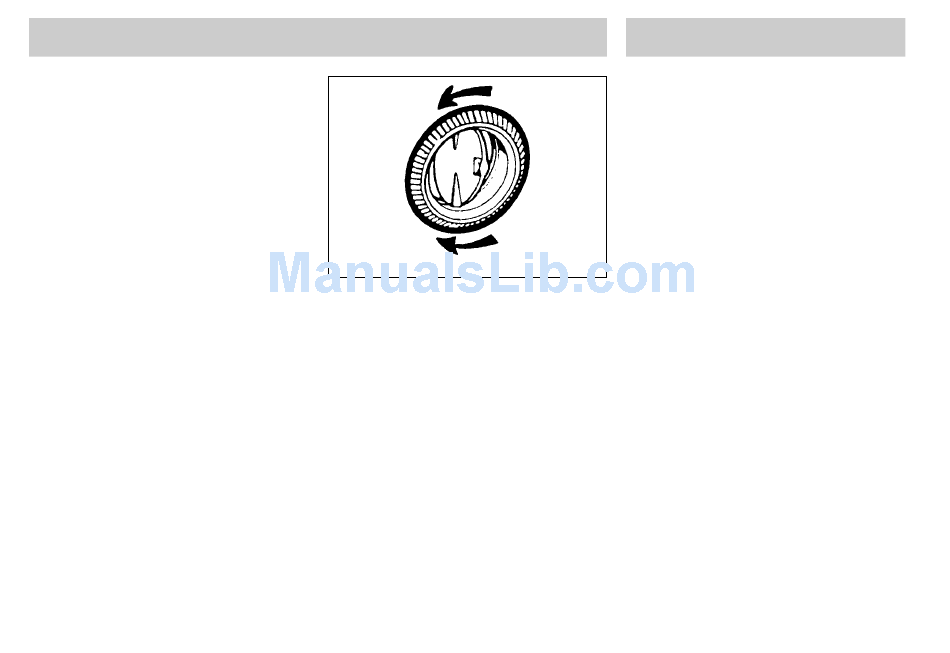

Butterfly Outlet
Blown air
The air ducting outlets are generally of the
butterfly type and may be opened or closed
by adjusting the butterfly valves. Twisting the
disc in its housing directs the flow in the
direction required.
One outlet on each leg of the air ducting
layout must be kept open at all times.
Switching off
Push slide switch (a) to the "OFF" position.
IMPORTANT OPERATING NOTES
1. Repairs may only be carried out by an
expert.
2. Under no circumstances should the hot
air outlet be blocked. Never hang clothes
or similar in front of or on top of the
heater to dry. This could cause serious
Equipment Details
damage to the heater as a result of
overheating. Do not place inflammable
materials near the heater! Please observe
these instructions for your own safety.
3. When operating a brand new heater for
the first time (or after it has been idle for
a lengthy period) you may temporarily
notice a slight smoke and smell. We
advise running the heater at full power
and thoroughly ventilating the room.
4. Any modifications to the appliance or the
use of spare parts and accessories
important for the operation, which are not
original Truma parts, or non-observance
of the instructions for installation and use
will result in the guarantee becoming
invalid and no liability will be assumed.
Furthermore, the approval for operating
the appliance will become invalid and in
some countries also the approval for
operating the vehicle.
TECHNICAL DATA
Power supply: 230 V ~, 50 Hz
Power consumption at power setting:
500 W: 2,2 A 1000W: 4,5 A 2000 W: 8,5 A
Weight: approx. 2 kg
