optional plug-in remote control pack the
Power and Auxiliary functions can be
operated by a key fob controller.
The system meets relevant UK legislation,
including the requirements of BS7671,
EN1648-1 and -2. Further technical data is
contained in section 5.

2. SYSTEM OVERVIEW

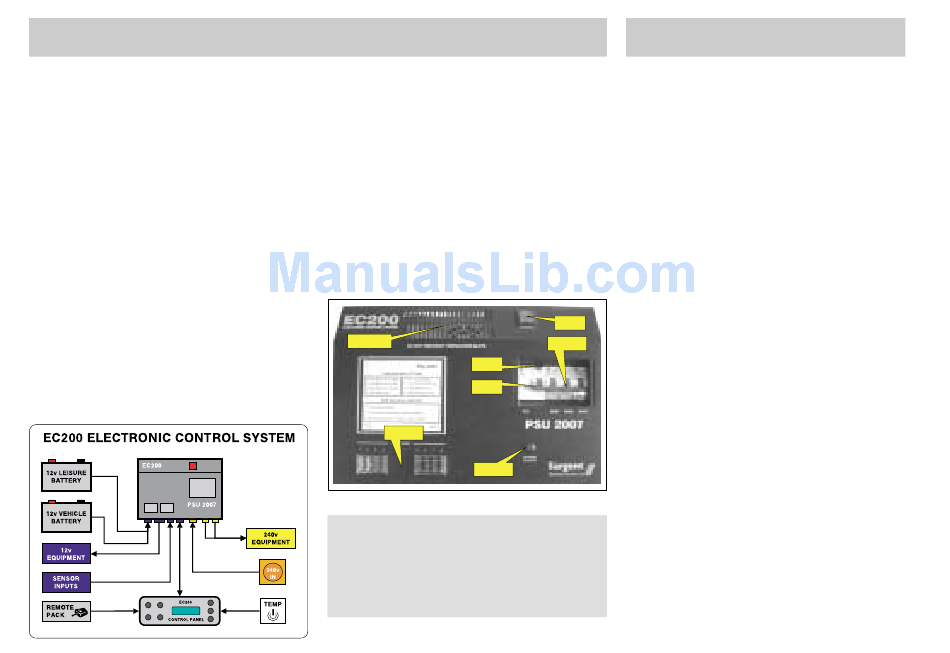

The following diagram shows the
components that make-up the EC200
system. The system basically comprises a
Power Supply and Control Unit (PSU2007)
that houses the Mains 240v protection
equipment, a 200 watt 12v charger / power
supply, and power control / protection for the
12v equipment. The PSU2007 is connected
to a Digital Control Panel via a data cable.
3. POWER SUPPLY UNIT –
SYSTEM OPERATION
3.1 INTRODUCTION
For the safe operation of all electrical
equipment within your Leisure Vehicle it is
important that you read and fully understand
these instructions. If you are unsure of any
point please contact your dealer / distributor
for advice before use.
The following diagram shows the PSU2007
layout.
CHARGER
VENTILATION
RCD TEST
BUTTON
RCD
SWITCH
DC SUPPLY
FUSES
POLARITY
INDICATOR
WARNING: Under heavy loads the
PSU2007 case will become hot.
ALWAYS ensure the ventilation slots
have a clear flow of air. Do not place
combustible materials against / adjacent
to the PSU2007
Electrical Systems
3.2 MAINS CONNECTION
For your safety it is IMPORTANT that you
follow these connections instructions each
time your Leisure Vehicle is connected to a
mains supply.
A) Ensure suitability of the Mains Supply.
Your Leisure Vehicle should only be
connected to an approved supply that
meets the requirements of BS7671. In
most cases the site warden will hold
information regarding suitability of supply.
If using a generator you also need to
comply with the requirements /
instructions supplied with the generator.
POWER
SWITCH
B) Switch the PSU2007 internal Charger
MCB
SWITCHES
unit OFF. Locate the red 'Charger' power
switch on the PSU2007 and ensure the
switch is in the OFF (0) position before
connection to the mains supply.
C) Connect the Hook-up Lead. Firstly
connect the supplied hook-up lead
(orange cable with blue connectors) to the
Leisure Vehicle and then connect to the
mains supply.
