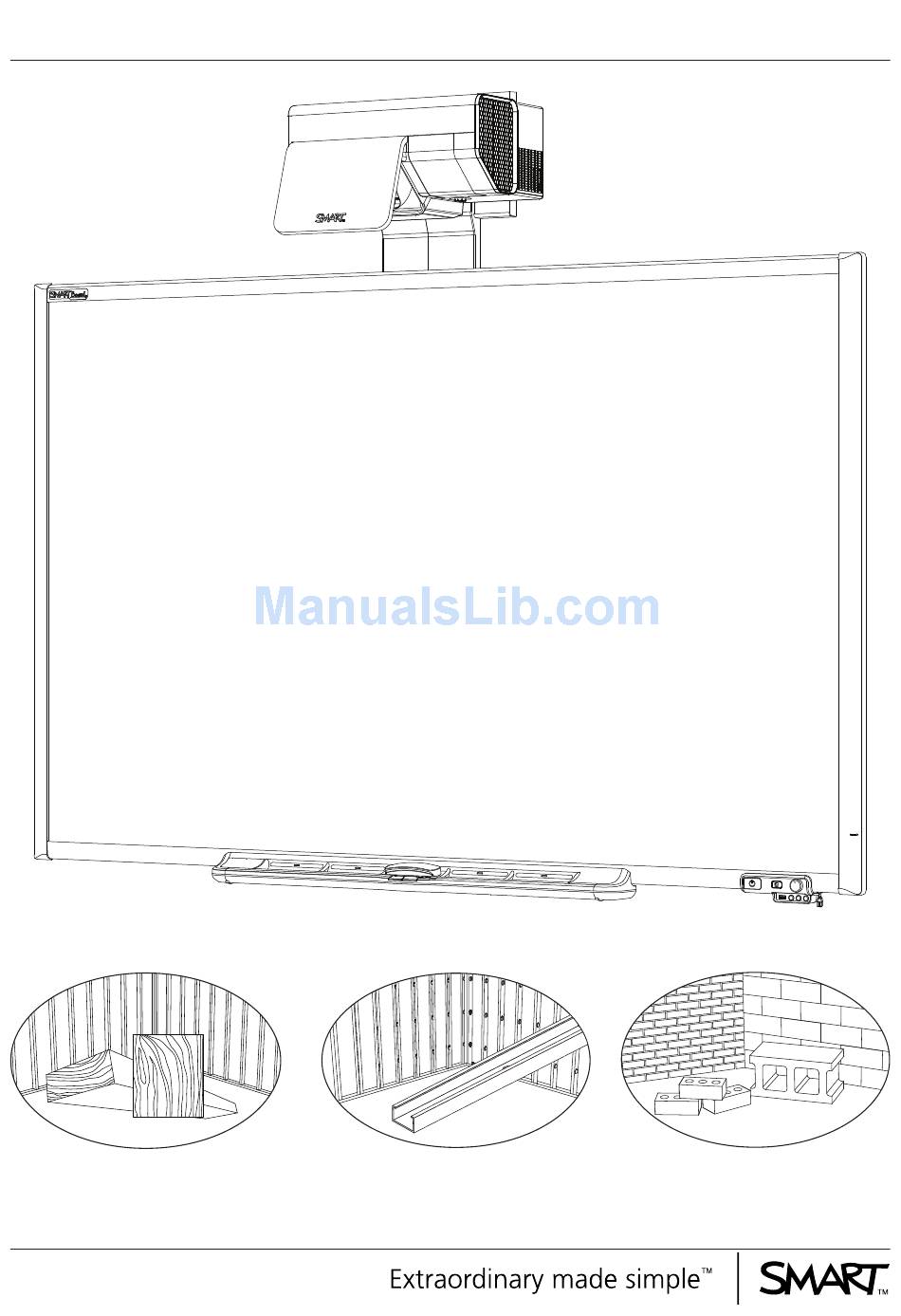

- Page 1 SMART Board™ 685ix and D685ix Interactive Whiteboard System Cautions, warnings and other important product information are contained in the Important Information for SMART Board 685ix and D685ix Interactive Whiteboard Users at smarttech.com/kb/137499.
- Page 2 Your SMART product includes instructions and parts for installation on metal and wood stud walls and certain masonry wall types only. In the event that you need to install your SMART product on reinforced concrete walls, walls with plaster lath finishing, walls of unusual construction or other types of walls, refer to your local building authority for instructions, recommendations, and safe work practices.
- Page 3 Au cas où vous deviez installer votre produit SMART sur un mur en béton armé, sur un mur de lattis, sur un mur de structure inhabituelle ou un autre type de mur, consultez votre service de l'urbanisme pour qu'il vous fournisse des instructions, des recommandations et vous dise comment travailler en toute sécurité.
- Page 4 Seu produto SMART inclui instruções e peças para instalação em paredes de metal e viga de madeira e somente em determinados tipos de parede de alvenaria....
- Page 5 SMART Board™ 685ix or D685ix series interactive whiteboard ×2 65 5/8" (166.9 cm) 49 1/4" 77 1/2" (125.1 cm) (196.9 cm) ×7 ×7 ×2 a (×12) b (×12) UX60 projector system CR-2025 Vol. 99-00982-20 D0...
- Page 6 c (×7) e (×6) d (×2) g (×7) j (×3) f (×5) m (×4) h (×3) n (×1) k (×4) 99-00982-20 D0...
- Page 7 ×2 1/4" (6 mm) 1/2" (13 mm) 10 mm z (×12) y (×12) 99-00982-20 D0...
- Page 8 All of the lines that you draw to install the SB600ix must be straight and level on a plumb wall. You must install the unit straight, level and plumb for it to operate properly. Všechny čáry, které při instalaci nakreslíte, musí být rovné a v rovnováze na svislé stěně SB600ix.
- Page 9 コンクリートのカウンタウェイトが枠の金属部分あるいは壁面に擦れる場合は、SB600ix 全体あるいは一部分が水平ではありません。垂直・水平に正しく取り付けなおしてくださ い。 SB600ix 의 설치를 위해 그리는 모든 선은 직선이고 샛기둥벽에 수평이어야 합니다 . 유닛을 설치할 때는 높이를 맞추고 수직으로 설치해야 정상적으로 작동할 수 있습니다 . Alle linjene du tegner for å installere SB600ix må være rette og plane på en loddrett vegg. Du må...
- Page 10 7" (17.8 cm) 7" (17.8 cm) × 4 4" (10.2 cm) 28" (71 cm) 78" Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 2× 99-00914-20 REV A0 *99-00914-20 A0* (198.1 cm)
- Page 11 7" (17.8 cm) 7" (17.8 cm) 7" (17.8 cm) × 4 4" (10.2 cm) 28" (71 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2×...
- Page 12 99-00982-20 D0...
- Page 13 1/2" (13 mm) c (×4) 99-00982-20 D0...
- Page 14 1/2" (13 mm) 1/4" (6 mm) c (×7) If you have a metal stud wall, drill the holes twice according to these instructions. 99-00982-20 D0...
- Page 15 Jestliže máte kovové příčky, vyvrtejte díry dvakrát dle tohoto návodu. Hvis du har en væg med metalstolper, skal der bores huller, som er dobbelt så store som angivet i disse instruktioner. Wenn Sie eine Metallständerwand haben, bohren Sie die Löcher dieser Anleitung gemäß doppelt.
- Page 16 1 3/4" (45 mm) 1/4" (6 mm) e (×5) g (×2) g (×3) f (×2) 99-00982-20 D0...
- Page 17 1/4" (6 mm) 99-00982-20 D0...
- Page 18 g (×2) f (×3) g (×4) j (×2) 99-00982-20 D0...
- Page 19 7" (17.8 cm) 4" (10.2 cm) 7" (17.8 cm) × 4 28" (71 cm) = 28" (71 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2×...
- Page 20 7" (17.8 cm) × 4 4" (10.2 cm) 28" (71 cm) = 28" (71 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport Installation Template for UF55/UF55w Projector System 99-00914-20 REV A0 Part of the SMART Board™...
- Page 21 7" (17.8 cm) 7" (17.8 cm) 28" (71 cm) 7" (17.8 cm) × 4 4" (10.2 cm) Installation Template for UF55/UF55w Projector System Part of the SMART Board™ 600i3 Interactive Whiteboard System SMART Technologies www.smarttech.com/support www.smarttech.com/contactsupport 99-00914-20 REV A0 2×...
- Page 22 99-00982-20 D0...
- Page 23 Fully insert the projector adjustment module into the wall mount bracket guide pins. You will hear a click when the adjustment module is fully inserted and the spring is locked. Refer to step 15 to safely secure the system using the three locking screws. Seřizovací...
- Page 24 프로젝터 조정 모듈을 벽 장착 브래킷 가이드 핀에 완전히 끼우십시오 . 조정 모듈이 완전히 끼워지고 스프링이 잠기면 딸각하고 소리가 들립니다 . 15 단계를 참조하여 세 개의 잠금 나 사를 사용해 시스템을 안전하게 고정하십시오 . Plaats het afstelmechanisme van de projector helemaal in de geleidepennen van de muurbevestiging.
- Page 25 h (×3) 99-00982-20 D0...
- Page 26 www.smarttech.com/ kb/142552 4 ½" (11.4 cm) d (×2) 99-00982-20 D0...
- Page 27 99-00982-20 D0...
- Page 28 99-00982-20 D0...
- Page 29 99-00982-20 D0...
- Page 30 99-00982-20 D0...
- Page 31 99-00982-20 D0...
- Page 32 99-00982-20 D0...
- Page 33 VGA Out Audio Out DC 5V 1A VGA 1 Audio In DC 5V 2A VGA 2 Audio In Control S-Video Composite Video HDMI 100V - 240V 50 Hz - 60 Hz 99-00982-20 D0...
- Page 34 99-00982-20 D0...
- Page 35 99-00982-20 D0...
- Page 36 Input Menu Hide Display Mode Mute 99-00982-20 D0...
- Page 37 99-00982-20 D0...
- Page 38 99-00982-20 D0...
- Page 39 Use the adjustment knobs to carefully align the projected image, as outlined in step 41. For more detailed alignment instructions, refer to the user’s guide on the CD included with your product. Seřizovacími knoflíky opatrně vyrovnejte promítaný obraz, viz krok 41. Bližší informace o vyrovnávání41 obrazu najdete v uživatelské...
- Page 40 Gebruik de afstelknoppen op de wijze die in stap 41 is beschreven om het geprojecteerde beeld nauwkeurig af te stellen. Zie de gebruikershandleiding op de cd die bij het product is geleverd voor meer informatie over het afstellen. Bruk justeringsknottene til å rette forsiktig inn det projiserte bildet, som beskrevet i trinn 41. Du finner mer detaljerte justeringsanvisninger i brukerhåndboken på...
- Page 41 99-00982-20 D0...
- Page 42 ½ 99-00982-20 D0...
- Page 43 99-00982-20 D0...
- Page 44 3" (7.62 cm) 1/4" (6 mm) 1 3/4" (45 mm) 99-00982-20 D0...
- Page 45 600 or SBD600 series interactive whiteboard a (×2) y (×2) z (×2) (×2) ~3.5″ (8.9 cm) ~3.5″ (8.9 cm) 99-00982-20 D0...
- Page 46 2× 1/4" (6 mm) 2× 2× 99-00982-20 D0...
- Page 47 b (×2) 3.5″ (8.9 cm) z (×2) 99-00982-20 D0...
-
Page 48: Hardware Environmental Compliance
Batteries are regulated in many countries. Check with your reseller to find out how to recycle used batteries. Packaging Many countries have regulations restricting the use of certain heavy metals in product packaging. The packaging used by SMART Technologies to ship products complies with packaging laws.
