Set Up
XBOX 360®
WITH HDMI CABLE
(HDMI Option 2)
TV / MONITOR
HDMI INPUT
You need the following cable for this set up option:
1. HDMI CABLE (not supplied)
N.B. Your TV/monitor will need to have Audio Out (RED/WHITE) sockets. Most, but not all TVs/
Monitors have RED/WHITE Audio IN and YELLOW Video IN sockets but not all TV's,and even
fewer monitors have RED/WHITE Audio OUT sockets!

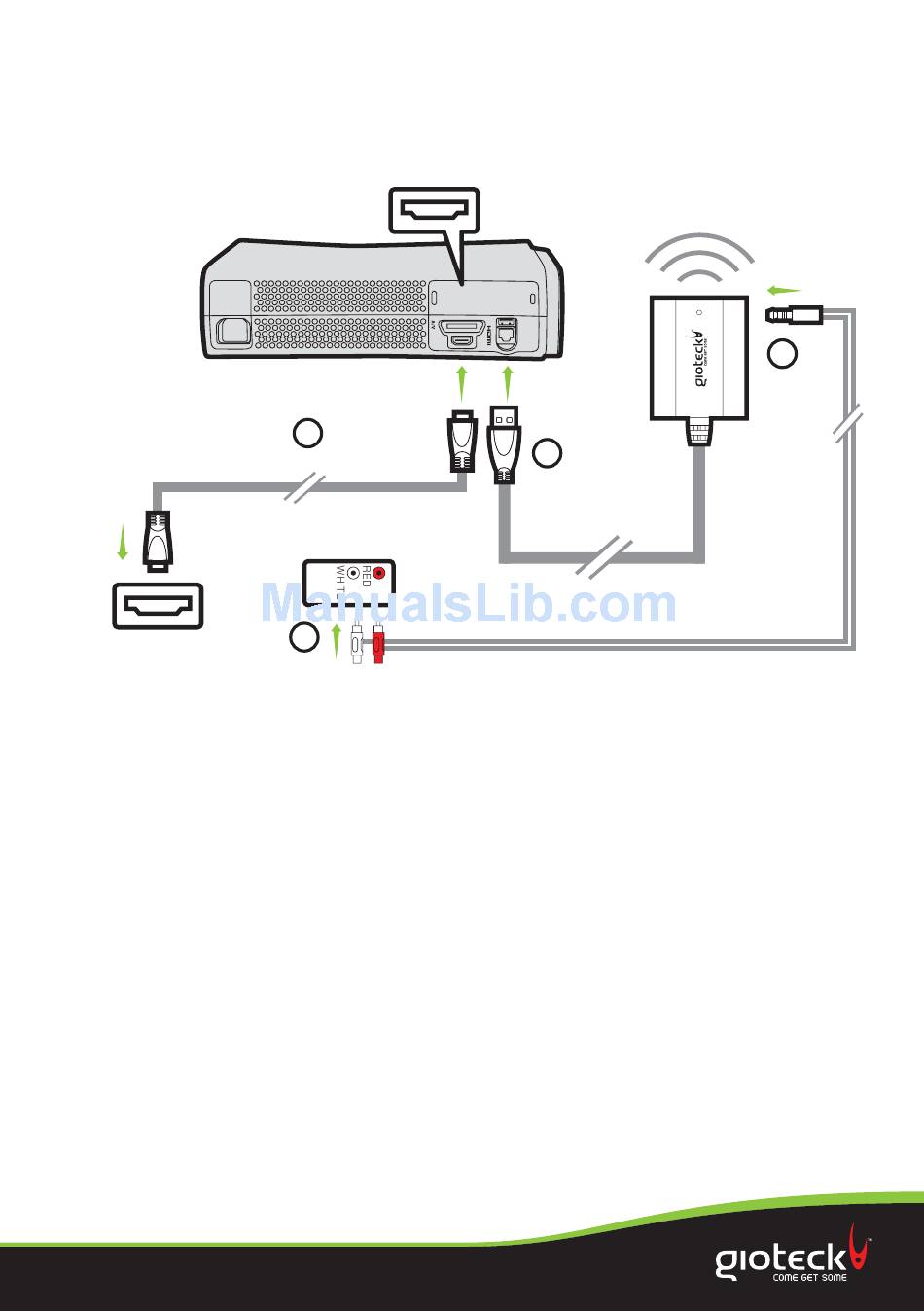

1 Connect the HDMI lead between your XBOX Console and TV/Monitor.
2 Plug the Gioteck Wireless Receiver USB connector into a spare USB port on
your XBOX 360.
3 Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
4 Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into
the Audio OUT RED/WHITE sockets on your TV/Monitor
Please note that you may need to make some adjustments to your TV/Monitor's
settings to enable the audio to come through the headset (Consult your TV
manual)
Then proceed as HDMI Option 1, Instructions 6 – 17.
HDMI OUTPUT
HDMI CABLE
1
(NOT SUPPLIED)
TV / MONITOR
AUDIO OUT
4
USB
2
Page 8 of 11
3
