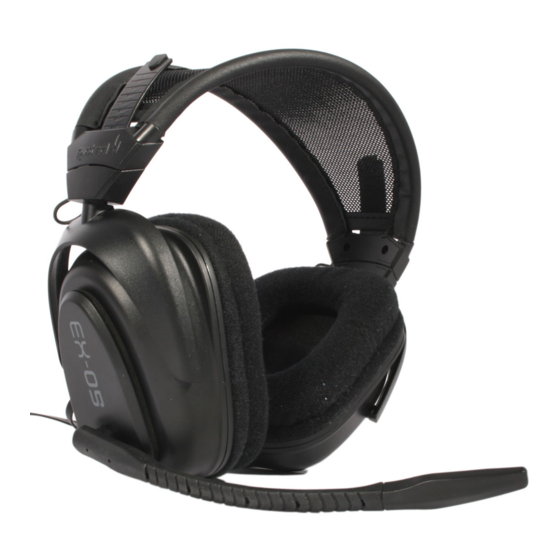

Gioteck EX-05 Military Style User Manual
Crisp and deep wired stereo headphones
Hide thumbs
Also See for EX-05 Military Style:
- Manual (72 pages) ,
- Quick setup manual (11 pages) ,
- User manual (2 pages)
Related Manuals for Gioteck EX-05 Military Style
Summary of Contents for Gioteck EX-05 Military Style

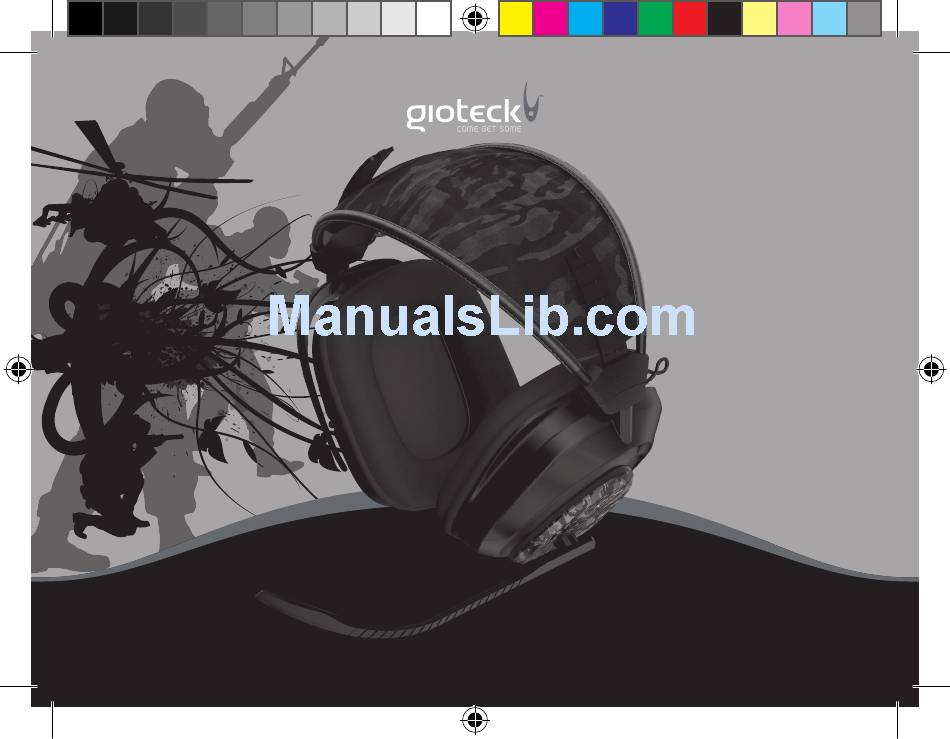

- Page 1 EX - 05 MILITARY STYLE HEADSET CRISP AND DEEP WIRED STEREO HEADPHONES ex05_wireless_universal_eu_manual.indd 1 05/09/2011 12:14...
-
Page 2: Thank You
Thank you for purchasing the EX-05 Military Style Headset from Gioteck. We hope that this product will go beyond your expectations for a quality made accessory. Please read this booklet thoroughly before using the product. Thank you & enjoy! - Page 3 features & details The EX-05 comes with true-to-life sound acoustics that make sure you hear your enemy, before you see them. Providing high quality, true sound & using the latest cutting edge audio technology, the EX-05 comes with a lightweight headband, ergonomic adjusters and circumaural ear cups to provide outstanding comfort. headset Lightweight Headband Headset Adjusters...
- Page 4 features & details wireless control box Headset Connector Wireless Control Box Power Switch ON/OFF DC Input Game Volume Xbox Live Chat Input Mute Switch Chat Volume wireless receiver Wireless Receiver USB Connector Mini Jack Cable RCA Pass Through Connectors 04 | FEATURES & DETAILS ex05_wireless_universal_eu_manual.indd 4 05/09/2011 12:14...
- Page 5 set up - xbox 360 slim using standard a/v cables Use the AV cable supplied with your Xbox 360 to connect your console to your TV (or sound system) as shown. This will allow you to hear your game time through your TV or EX-05 Headset. AV MULTI OUT MINI JACK AV CABLE SUPPLIED...
- Page 6 set up - xbox 360 using hdmi HDMI OUTPUT AV MULTI OUT MINI JACK HDMI CABLE AV CABLE (NOT SUPPLIED) SUPPLIED WITH WIRELESS XBOX 360® CONSOLE RECEIVER (INCLUDED) RCA SPLITTER CABLE (INCLUDED) HDMI TV 06 | SET UP - XBOX ex05_wireless_universal_eu_manual.indd 6 05/09/2011 12:14...
- Page 7 set up - xbox 360 slim using hdmi HDMI OUTPUT AV MULTI OUT MINI JACK HDMI CABLE (NOT SUPPLIED) WIRELESS RECEIVER (INCLUDED) RCA TV OUTPUT AV CABLE HDMI TV (SOLD SEPERATELY) ALTERNATIVE SET UP RCA SPLITTER CABLE (INCLUDED) SET UP - XBOX | 07 ex05_wireless_universal_eu_manual.indd 7 05/09/2011 12:14...
- Page 8 set up - chat on xbox 360 The EX-05 may be used to communicate with other players during XBOX live multi player gaming sessions. Plug the Mini Jack cable supplied into the Mini Jack cable port of the wireless control box (1) and connect the other end of the cable to the input of your Xbox controller (2).
- Page 9 1. At the Xbox dashboard select the 'settings' menu. 2. Select 'preferences' from the 'settings' menu. Xbox Guide Xbox Guide Xbox Dashboard Profile Friends Preferences Party Family Settings Messages System Settings Chat & IM Account Managment Play a Game Turn O Console Select Back Sign Out...
- Page 10 set up - ps3 using standard a/v cables AV MULTI OUT USB PORT AV CABLE (SUPPLIED WITH PS3™ CONSOLE) 1. After navigating to the Sound Settings' menu, press X on Audio Output Settings. WIRELESS RECEIVER (INCLUDED) 2. Press X on the icon labelled: Audio Input Connector / SCART / AV MULTI to select this option.
- Page 11 set up - ps3 using hdmi HDMI OUTPUT AV MULTI OUT USB PORT HDMI CABLE AV CABLE (SUPPLIED (NOT SUPPLIED) WITH PS3™ CONSOLE) 1. Within the Settings' menu, press X on Sound Settings. WIRELESS RECEIVER (INCLUDED) HDMI TV 2. Press X on the icon labelled: NOTE: If your TV Audio Multi Output and turn supports RCA output...
- Page 12 Press X to confirm. 3. Set the microphone level to 3 or 4 press X on OK. Your EX-05 Military Style Headset is now ready to use.. Enjoy :) 12 | SET UP - PS3 ex05_wireless_universal_eu_manual.indd 12...
- Page 13 set up - connection to a pc To connect the EX-05 to a PC, plug the usb cable (1) into spare usb port on your PC. WIRELESS RECEIVER (INCLUDED) SET UP - PC | 13 ex05_wireless_universal_eu_manual.indd 13 05/09/2011 12:14...
-
Page 14: Pairing Your Headset
Charging Charged Low Battery Sleep Mode Out of range (6M+) pairing your headset 1. Connect the transmitter 2. Turn the headset ON. 3. Press and hold the mute button for 5 seconds. 4. The headset and transmitter LEDs will flash repeatedly (A) until paired (B). charging your headset game time The headset contains a rechargeable Lithium-ion... -
Page 15: Troubleshooting
Having trouble with your EX-05 Military Style Headset? These troubleshooting steps will show you the smoothest path to resolving your issue. Be sure to perform troubleshooting before returning your headset. When using chat my friends can’t hear me • Check that the headset is connected to the Xbox 360® Controller. - Page 16 FCC Notice to User This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection ...
