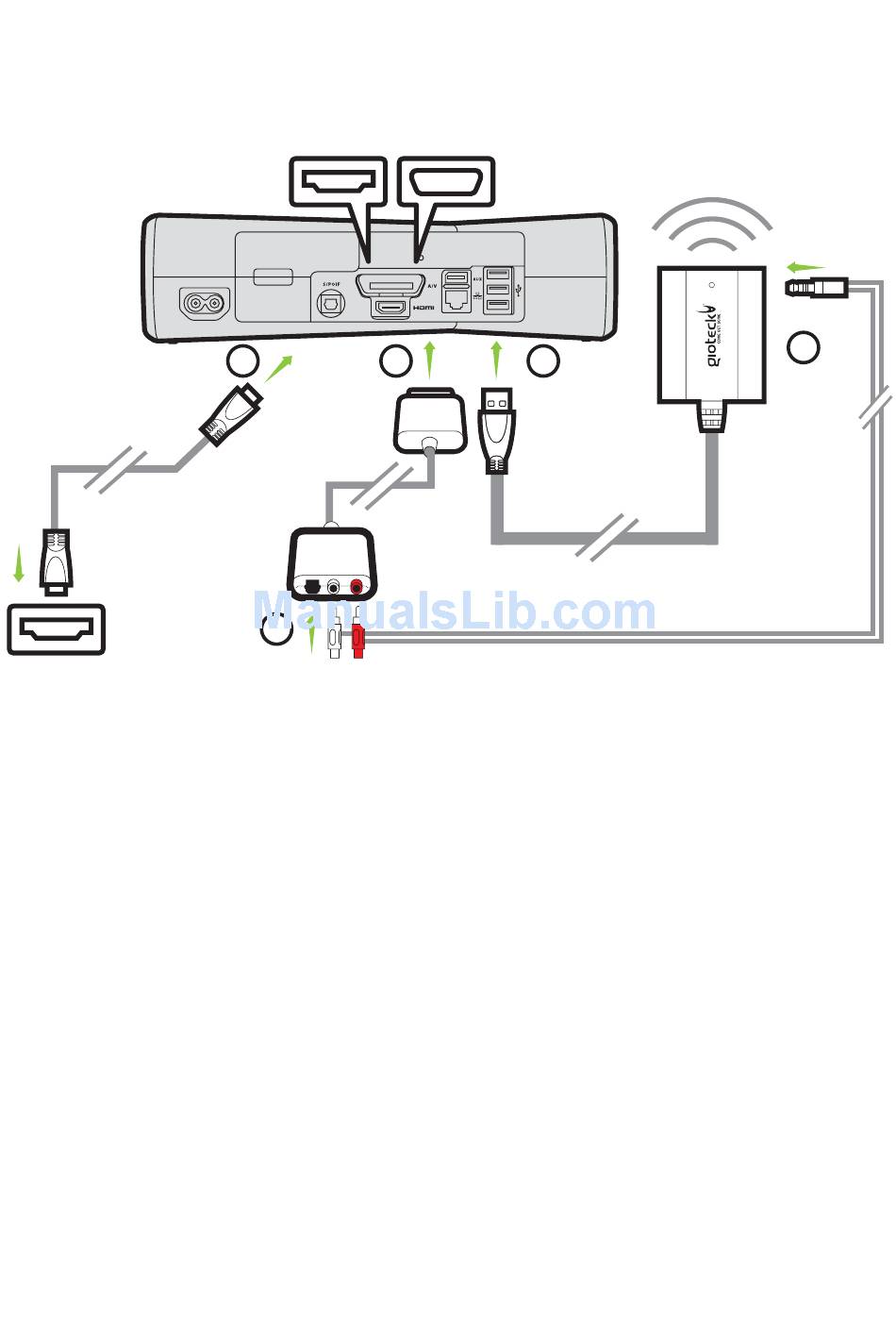

Set Up
XBOX 360® SLIM
(HDMI Option 1)
HDMI CABLE
(NOT SUPPLIED)
TV/MONITOR
HDMI INPUT
You need the following cables for this set up option:
1. HDMI CABLE (not supplied) 2. AV RCA ADAPTOR (not supplied)
Unfortunately the design of the AV cable supplied with the XBOX does not allow for the
simultaneous use with an HDMI cable because the shape of the AV connector covers the
HDMI socket. Microsoft produces a cable adaptor such as the one shown in this link to solve
this problem: http://www.amazon.co.uk/Microsoft-Audio-Cable-Adaptor-Xbox/dp/
B004S5EH6Q/ref=sr_1_5?s=electronics&ie=UTF8&qid=1320753739&sr=1-5
1 Connect the HDMI lead between the XBOX and your TV/Monitor.
2 Plug the AV RCA Adaptor into the back of your XBOX console.
3 Plug the Gioteck Wireless Receiver USB connector into a spare USB port
on your XBOX console.
4 Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
5 Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into
the corresponding sockets of the AV RCA Adaptor.
6 Turn on your console and make sure that your controller is wirelessly
connected to your console (do not leave the controller charging or it may
transfer electrical noise into your headset).
See next page for chat set up
WITH HDMI CABLE
HDMI OUTPUT
1
AV RCA ADAPTOR
(NOT SUPPLIED)
5
AV MULTI OUT
2
3
USB
Page 9 of 11
4
