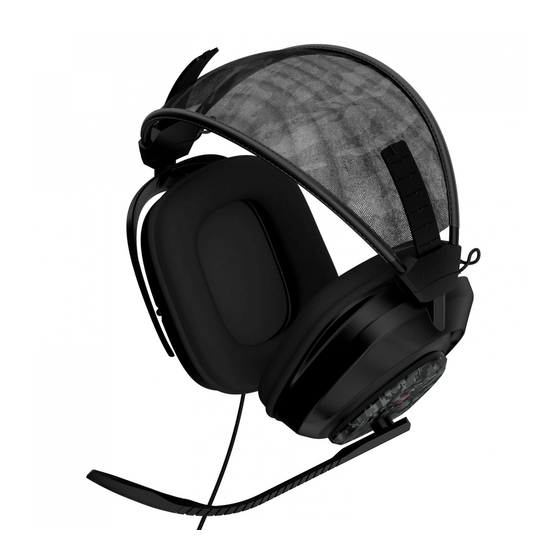

Gioteck EX-05 Instructions

EX - 05
Features & Details
gB
01 | Lightweight Headband
02 | Headset Adjusters
03 | Micro-Fibre Mufflers
04 | Flexible Rubber Mic Boom
05 | Gioteck Inline Controller
WIRED STEREO HEADSET
06 | Chat Volume
07 | Game Volume
FOR XBOX / PS3 / PC / MAC
08 | PS3/XBOX Switch
09 | Mute
10 | LED
11 | Xbox Live Chat Input
Thank you for purchasing the
Fr
EX-05 Wired Stereo Headset
01 | Serre-tête léger
from Gioteck.
02 | Ajusteurs casque
03 | Silencieux en micro-fibres
04 | Microphone en caoutchouc souple
We hope that this product will
05 | Contrôleur Inline Gioteck
06 | Volume de chat
go beyond your expectations for a
07 | Volume du jeu
quality made accessory.
08 | PS3/XBOX changer
09 | Commutateur de mode Muet (Mute)
10 | Voyant lumineux
Please read this booklet thoroughly
11 | Entrée Chat Xbox Live
before using the product and review
De
01 | Leichtes Kopfband
specific console manuals for
02 | Einstellbügel
additional operation details.
03 | Ohrmuscheln aus Mikro-Faser
04 | Mikrofonbügel aus flexiblem Gummi
05 | Gioteck Inline Controller
Thank you & enjoy!
06 | Chat-Lautstärke
07 | Game-Lautstärke
08 | PS3/XBOX wechsel
09 | Stummschalter
10 | LED
11 | Xbox LIVE Chat-Eingang
ps3 set up
set up 1: With a/v caBles (Without hDmi)
1. Connect the AV RCA cable into the back of your PS3.
FOR TROUBLESHOOTING &
2. Connect the RED/WHITE connectors into the corresponding
VIEW THIS MANUAL ONLINE:
RED/WHITE sockets of the cables coming from the
Gioteck Inline Controller.
www.gioteck.com
3. Connect the yellow VIDEO connector into the Video IN socket
of your TV/Monitor.
4. Connect the USB lead attached to the Gioteck Inline Controller
into an available USB port on the front of your PS3 console.
5. Make sure the switch on the Gioteck Inline Controller
is set to PS3 and the microphone is not set to mute.
6. Turn on your PS3 console.
7. Make sure the microphone is not set to mute.
8. Go to Settings > Accessory Settings > Audio Device Settings
and select EX-05 Headset (which will appear in the drop down
menu) for both the Input and Output. You will be able to hear
PLEASE NOTE: Your TV/Monitor will need to have yourself talking into the microphone through the headset
earcups. Set the desired volume level.
Audio Out (RED/WHITE) sockets. Most, but not all
TVs/Monitors have RED/WHITE Audio IN and
9. Go to Settings > Sound Settings > Audio Output Settings,
YELLOW Video IN sockets but not all TV's, and even
choose Audio Input Connector/ Scart / AV Multi.
fewer monitors have RED/WHITE Audio OUT sockets.
set up 2: With hDmi (option a)
1. Connect the HDMI lead between the PS3 console and
your TV/Monitor.
PLEASE NOTE: You may need to make some
2. Connect the AV RCA cable into the back of your PS3.
adjustments to your TV/Monitor's settings to enable
3. Connect the RED/WHITE connectors into the corresponding
the audio to come through the headset
RED/WHITE sockets of the cables coming from the
(Consult your TV manual).
Gioteck Inline Controller.
4. Connect the USB lead attached to the Gioteck Inline Controller
into an available USB port on the front of your PS3 console.
5. Make sure the switch on the Gioteck Inline Controller is set to
PS3 and the microphone is not set to mute.
6. Turn on your PS3 console.
7. Make sure the microphone is not set to mute.
8. Go to Settings > Accessory Settings > Audio Device Settings
and select EX-05 Headset (which will appear in the drop down
menu) for both the Input and Output. You will be able to hear
yourself talking into the microphone through the headset
earcups. Set the desired volume level.
9. Go to Settings > Sound Settings > Audio Output Settings,
choose Audio Input Connector/ Scart / AV Multi.
set up 2: With hDmi (option B)
1. Connect the HDMI lead between the PS3 console
and TV/Monitor.
2. Connect the RED/WHITE connectors attached to the
Gioteck Inline Controller into the Audio OUT RED/WHITE
sockets on your TV/Monitor.
3. Connect the USB lead attached to the Gioteck Inline Controller
into an available USB port on the front of your PS3 console.
4. Make sure the switch on the Gioteck Inline Controller is set to
PS3 and the microphone is not set to mute.
5. Turn on your PS3 console.
6. Make sure the microphone is not set to mute.
7. Go to Settings > Accessory Settings > Audio Device Settings
and select EX-05 Headset (which will appear in the drop down
menu) for both the Input and Output. You will be able to hear
yourself talking into the microphone through the headset
earcups. Set the desired volume level.
8. Go to Settings > Sound Settings > Audio Output Settings,
choose Audio Input Connector/ Scart / AV Multi.
01
05 11
06 08
02
07 09
03
10
04
es
01 | Banda ligera
02 | Ajustes del auricular
03 | Almohadillas de microfibra
04 | Micrófono de goma flexible
05 | Controlador Inline de Gioteck
06 | Volumen de charla
07 | Volumen del juego
08 | PS3/XBOX cambiar
09 | Interruptor de silencio
10 | LED
11 | Entrada de charla de Xbox Live
XBoX set up
set up 1: With a/v caBles (Without hDmi)
AV MULTI OUT
1. Connect the AV RCA Cable into the back of your
XBOX 360 console.
USB
2. Connect the RED/WHITE connectors into the corresponding
sockets of the cables coming from the Gioteck Inline Controller.
04
3. Connect the yellow VIDEO connector into the Video IN socket
on your TV/Monitor.
4. Connect the USB lead of the Gioteck Inline Controller into an
01
AV RCA CABLE available USB port on your console.
03 (SUPPLIED WITH
PS3 CONSOLE)
5. Make sure the microphone is not set to mute.
05
6. Turn on your console and make sure that your controller is
YELLOW/
SLIDE SWITCH wirelessly connected to your console (do not leave the
VIDEO
TO PS3
controller charging or it will transfer electrical noise into
TV/MONITOR
your headset).
INPUTS
SLIDE SWITCH
TO UN-MUTE
7. Go to chat set up.
02
set up 2: With hDmi (option a)
1. Connect the HDMI (not included) lead between the XBOX 360
HDMI OUTPUT AV MULTI OUT
and your TV/Monitor.
2. Connect the AV RCA Adaptor Cable (not included) into the
04
USB
XBOX 360.
3. Connect the RED/WHITE connects that are attached to the
Gioteck Inline Controller into the correct inputs of the AV RCA
Adaptor Cable (not included).
4. Connect the USB lead of the Gioteck Inline Controller into an
01 02
AV RCA CABLE available USB port on your console.
(SUPPLIED WITH
HDMI CABLE PS3 CONSOLE) 5. Make sure the microphone is not set to mute.
(NOT SUPPLIED) 05
6. Turn on your console and make sure that your controller is
wirelessly connected to your console (do not leave the
SLIDE SWITCH controller charging or it will transfer electrical noise into
03
TO PS3
your headset).
7. Go to chat set up.
SLIDE SWITCH
TO UN-MUTE
TV/MONITOR
HDMI INPUT
set up 2: With hDmi (option B)
USB
HDMI OUTPUT
1. Connect the HDMI (not included) lead between your
03
XBOX 360® and TV/Monitor.
2. Connect the RED/WHITE connectors attached to the
Gioteck Inline Controller into the Audio OUT RED/WHITE
sockets on your TV/Monitor.
3. Connect the USB lead of the Gioteck Inline Controller into an
available USB port on your console.
01
04 4. Make sure the microphone is not set to mute.
HDMI CABLE 02
(NOT SUPPLIED)
5. Turn on your console and make sure that your controller is
SLIDE SWITCH
wirelessly connected to your console (do not leave the
TO PS3
controller charging or it will transfer electrical noise into
your headset).
SLIDE SWITCH
TO UN-MUTE
6. Go to chat set up.
TV / MONITOR
AUDIO OUT
TV / MONITOR
HDMI INPUT
precautions
it
This product has been designed
with the highest concern for
01 | Fascia per la testa leggera
safety. However, any electrical
02 | Regolatori cuffie
device, if used improperly, has
03 | Padiglioni in microfibra
the potential to cause harm. To
04 | Asta microfono in gomma flessibile
help ensure risk-free operation
05 | Connettore in linea con cavo
please pay attention to the
06 | Volume chat
following guidelines:
07 | Volume gioco
08 | PS3/XBOX passare
• Use only as intended.
09 | Interruttore silenziamento audio
This is a precision product,
10 | LED
handle with care.
11 | Ingresso chat Xbox live
• Contains small parts.
Not suitable for children under
pt
three years of age.
01 | Suporte para a cabeça de peso reduzido
• Store in a dry & dust free area.
02 | Ajustadores dos auscultadores
Do not store in areas of extreme
03 | Protectores com micro-fibras
heat or cold, and avoid direct
04 | Haste do microfone flexível em borracha
sunlight or heat sources
05 | Controlador com fios Gioteck
e.g. heaters.
06 | Volume da conversação
• Do not allow the product to get
07 | Volume do jogo
wet or dirty; doing so may cause
08 | PS3/XBOX mudar
damage.
09 | Interruptor para desligar o som
• Do not clean with benzene,
10 | LED
paint thinner, acetone, alcohol, or
11 | Entrada para conversação Xbox LIVE
other such solvents.
cz • Do not take the product apart;
doing so will void your warranty
01 | Lehká čelenka
and may cause electrical shock
02 | Nastavení sluchátek
on your console.
03 | Tlumič z mikrovláken
04 | Flexibilní gumový držák na mikrofon
This symbol indicates
05 | Řadového ovladače Gioteck
important installation,
06 | Hlasitost pro chat
operational or maintenance
07 | Herní hlasitost
instructions. Follow these
08 | PS3/XBOX přepnout
instructions closely.
09 | Ztlumení
10 | LED
11 | Vstup pro Xbox Live Chat
AV RCA CABLE
03
(SUPPLIED WITH
XBOX CONSOLE)
YELLOW/
VIDEO
TV/MONITOR
AUDIO/VIDEO
INPUTS
02
01
HDMI CABLE AV RCA ADAPTOR
(NOT SUPPLIED) (NOT SUPPLIED)
IMPORTANT: The AV cable supplied with the
XBOX 360 does not allow for simultaneous use with 03
a HDMI cable, as the shape of the AV connector
TV/MONITOR
covers the HDMI socket. You will need to purchase
HDMI INPUT
one from Amazon for this set up method:
http://tinyurl.com/360-RCA-Adaptor
(NOT SUPPLIED)
02
TV / MONITOR
HDMI INPUT
environment
Please help to conserve
the environment by
recycling the cardboard
packaging of this product.
This product should NOT
be disposed of in normal
household waste. It should
be disposed of separately.
Please take it to an electrical
waste collection point. EX - 05
legals
This product complies with the
following legal regulations.
For further information go to
www.gioteck.com.
The product is classified as
a Class B personal WIRED STEREO HEADSET
computers and peripherals for
which the following markings,
PS3 / XBOX / PC / MAC
instructions and Declaration of
Conformity are required.
Gioteck hereby declares
that this headset is in
compliance with the essential
requirements and other
provisions of Directive 2004/108/
EC. To view the full version of the
Declaration of Conformity please
go online to: doc.gioteck.com
VERSION 1.0 | EX5UNI-M0
chat set up : XBoX live
1. Plug one end of the short mini jack cable into the correct
socket on the Gioteck Inline Controller and the other end into
AV MULTI OUT
your XBOX 360 controller. (It is important to do this in the
correct order so that the console connects to the headset's
microphone!)
2. Go to XBOX Dashboard > Settings > Preferences > Voice.
3. Set Voice Output to: Play through Headset.
SLIDE SWITCH
4. Set the desired volume for the Game Sound and Voice.
TO UN-MUTE
(You should now hear sound from your XBOX 360® through
01 04
your headset.)
5. To test the microphone go to messages and record and
USB
play back a message.
05
HDMI OUTPUT AV MULTI OUT
XBOX PS3/PC
SLIDE SWITCH
TO UN-MUTE
04
02
05
USB
pc/mac set up
1. Connect the Headset into the Gioteck Inline Controller.
2. Make sure the microphone is not set to mute.
3. Check that the switch on the Gioteck Inline Controller is set
to PS3 as this is also the correct position for PC or MAC use.
4. Plug the USB cable into an available port on your PC or MAC.
5. The RED/WHITE audio cables are not required.
6. Your PC (windows 7) will automatically find the Headset
and assign it as the device for audio output.
7. For MAC, open system preferences and go to sound. (You can
then assign the audio output to the Gioteck EX-05 Headset.)
HDMI OUTPUT
SLIDE SWITCH
TO UN-MUTE
01 03
04
HDMI CABLE USB
04
USB
TV / MONITOR AUDIO
OUT
RCA PASS
THROUGH CABLE
(NOT REQUIRED)
SLIDE SWITCH
02
TO UN-MUTE
SLIDE SWITCH 03
TO PS3
