AP6562 Access Point
INSTALLATION GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Motorola AP6562

Summary of Contents for Motorola AP6562

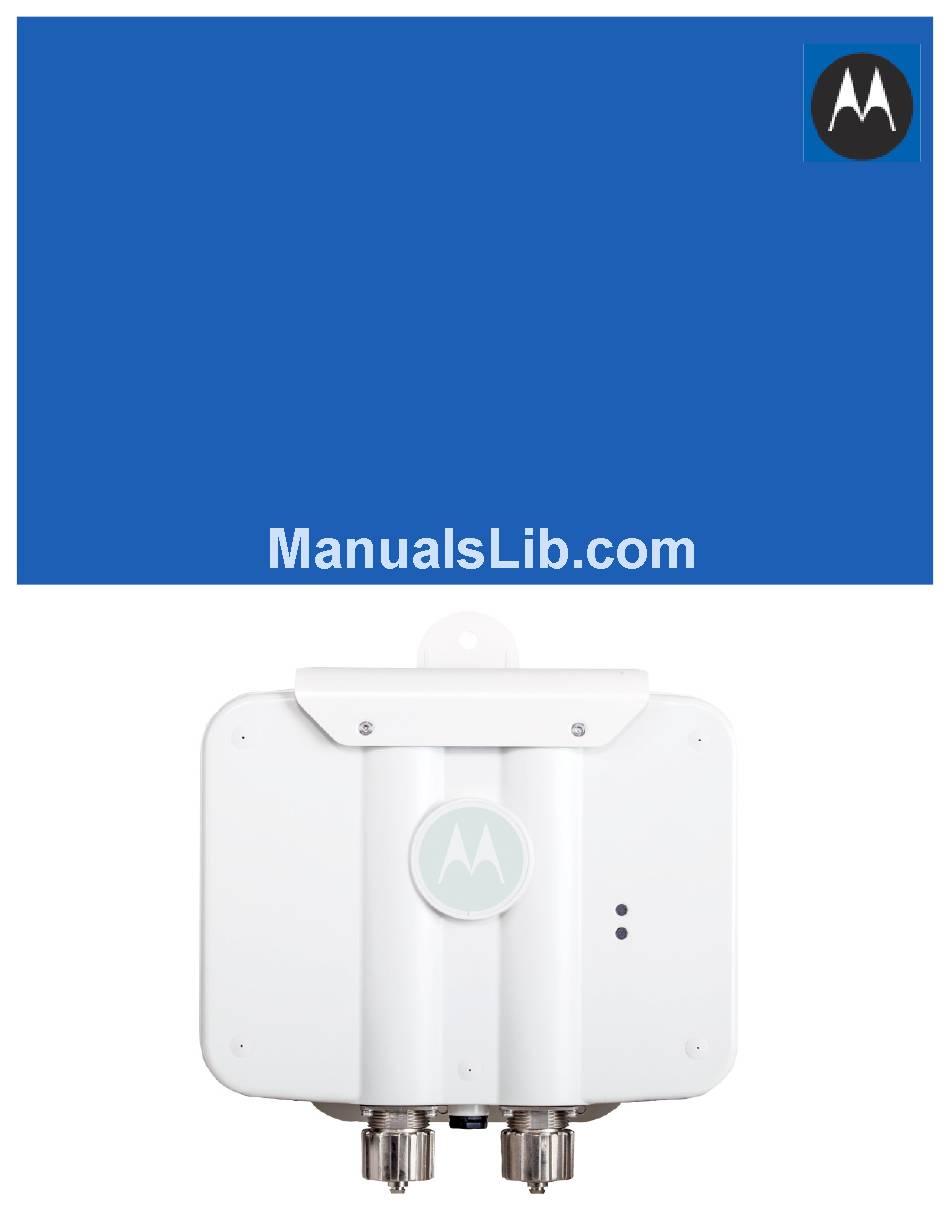

  • Page 1 AP6562 Access Point INSTALLATION GUIDE...
  • Page 2 AP6562 Access Point MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions, Inc. 2013. All rights reserved.

  • Page 3: Table Of Contents

    2.2 Access Point Placement ..........8 2.3 AP6562 Hardware Mouting and Installation ......9 2.3.1 Mounting Bracket Kit .
  • Page 4 5.14 Turkish WEEE Statement of Compliance ......44 6.0 Motorola Solutions Support Center ....... . . 45...

  • Page 5: Introduction

    The AP6562 access point provides multiple deployment options. The AP6562 access point receives all power and transfers data through the same CAT-5 or better Ethernet cable. An 802.3at Ethernet switch or power supply (specifically rated for the AP6562) is required. Motorola Solutions recommends the AP-PSBIAS-7161-US or AP-PSBIAS-7161-WW outdoor rated power supply An AP6562 model access point uses WiNG 5 software as its onboard operating system.

  • Page 6: Warnings

    • Verify cable lengths are within the maximum allowable distances for optimal signal transmission. 1.4 AP6562 Package Contents An AP6562 access point is available in internal antenna and external antenna models. Contents differ depending on the model ordered. 1.4.1 Internal Antenna Model Package Contents...

  • Page 7: External Antenna Model Package Contents

    Gigabit operation. The AP6562 access point comes with dual radios supporting 802.11abgn. The access point contains runtime firmware which enables the unit to boot after a power up. The runtime firmware on the access point and the...

  • Page 8: Hardware Installation

    1. Match the model number on the purchase order with the model numbers in the packing list and on the case of the access point. 2. Verify the contents of the box include the intended AP6562 access point, and the included hardware Internal Antenna Model...

  • Page 9: Ap6562 Hardware Mouting And Installation

    2.3 AP6562 Hardware Mounting and Installation It is recommended to use the AP6562 mounting bracket kit (KT-147407-01) for most deployments. When a standoff distance is required for a pole mounted or wall mounted installation, use the extension arm kit (KT-150173-01).

  • Page 10: Extension Arm Kit

    2.3.2 Extension Arm Kit When mounting an AP6562 on poles more than 3 inches in diameter, use the extension arm kit (KT-150173-01) to provide a minimum standoff distance of twelve inches to avoid interference with the antennas. The extension arm...

  • Page 11: Pole Mounted Installations

    2.3.3 Pole Mounted Installations The mounting hardware kit and extension arm can be used in various combinations to properly install the AP6562 on a pole. For poles of up to 3 inches in diameter, attach the pole mount bracket of the mounting hardware kit at the desired position on the pole using band clamps up to 3/4 inch width, or a 1/2 inch x 4 inch wide U-bolt and nuts.

  • Page 12: Vertical Pole Mount

    10mm socket, or an adjustable wrench, attach (but don’t tighten) the access point bracket section to the AP6562 with the with four M6 hex flange screws. 7. Insert two M6 hex flange screws into the bottom holes on the sides of the access point bracket section.
  • Page 13 Installation Guide 15. Verify the unit has power by observing that the LEDs are lit or flashing. If not using a 802.3at capable controller to power the AP6562, ensure CAUTION only the AP6562’s designated outdoor power supply (AP-PSBIAS-7161-US or AP-PSBIAS-7161-WW) is used to supply power to the access point.
  • Page 14 AP6562 Access Point 11. Verify the unit has power by observing that the LEDs are lit or flashing. If not using a 802.3at capable controller to power the AP6562, ensure CAUTION only the AP6562’s designated outdoor power supply (AP-PSBIAS-7161-US or AP-PSBIAS-7161-WW) is used to supply power to the access point.

  • Page 15: Wall Mounted Installation

    2. Using a torque wrench or a ratchet and a 10mm socket, or an adjustable wrench, attach (but don’t tighten) the access point bracket section to the AP6562 with four M6 hex flange screws and insert two M6 hex flange screws into the bottom holes on the sides of the access point bracket section.
  • Page 16 AP6562 Access Point If not using a 802.3at capable controller to power the AP6562, ensure CAUTION only the AP6562’s designated outdoor power supply (AP-PSBIAS-7161-US or AP-PSBIAS-7161-WW) is used to supply power to the access point. Using an incorrectly rated power supply could damage the unit and void the product warranty.

  • Page 17: Ap6562 Internal Antenna Model Antenna Options

    Installation Guide 2.4 AP6562 Internal Antenna Model AP6562 internal antenna models (AP-6562-66030-US, AP-6562-66030-WR and AP-6562-66030-EU) are configured with four internal antennas.

  • Page 18: Ap6562 External Antenna Model Antenna Options

    AP6562 Access Point 2.5 AP6562 External Antenna Model AP6562 external antenna models ( AP-6562-66040-US, AP-6562-66040-WR and AP-6562-66040-EU) are configured with four external N type connectors.
  • Page 19 The labels for Radio 1-0, Radio 1-1, Radio 2-0 and Radio 2-1 are molded into the AP6562 access point enclosure beside the antenna connectors. When mounting antennas to the connectors, ensure that you have selected the appropriate band for the configured radio.

  • Page 20: Ap6562 Led Indicators

    AP6562 Access Point 2.6 AP6562 LED Indicators Both internal antenna and external antenna models have LED activity indicators on the front of the case.

  • Page 21: Installation Guide

    Installation Guide The LEDs provide a status display indicating error conditions, transmission, and network activity for the 5 GHz 802.11an (amber) radio or the 2.4 GHz 802.11bgn (green) radio. Task 5 GHz Activity LED (Amber) 2.4 GHz Activity LED (Green) Unadopted Blink interval at 5 times a second Normal...

  • Page 22: Basic Access Point Configuration

    (AP-PSBIAS-7161-US or AP-PSBIAS-7161-WW) to supply power to the AP6562 (once fully cabled). If your host system is a DHCP server, an IP address is automatically assigned to the Access Point and can be used for device connection.
  • Page 23 Installation Guide 3. Enter the default username admin in the Username field. 4. Enter the default password motorola in the Password field. 5. Click the Login button to load the management interface. When logging in for the first time, you’re prompted to change the NOTE password to enhance device security in subsequent logins.
  • Page 24 Access Point model supported. The only difference being the number of radios configurable by model, as an AP7131 model can support up to three radios, AP6522, AP6532, AP6562, AP8132 and AP7161 models support two radios and AP6511 and AP6521 models support a single radio.
  • Page 25 Installation Guide 7. Select Save/Commit within each page to save the updates made to that page's configuration. Select Next to proceed to the next page listed in the Navigation Panel without saving your updates. While you can navigate to any page in the navigation panel, you cannot NOTE complete the Initial AP Setup Wizard until each task in the Navigation Panel has a green checkmark.
  • Page 26 UI to connect to the Access Point, provision its configuration and administrate the Access Point’s configuration. If designating the Access Point as a Standalone AP, Motorola Solutions NOTE recommends the Access Point’s UI be used exclusively to define its device configuration, and not the CLI.
  • Page 27 Installation Guide 13. The Typical Setup Wizard displays the Network Topology screen to define how the Access Point handles network traffic. 14. Select an Access Point Mode from the available options. • Router Mode -In Router Mode, the Access Point routes traffic between the local network (LAN) and the Internet or external network (WAN).
  • Page 28 AP6562 Access Point 15. Select Next. The Typical Setup Wizard displays the LAN Configuration screen to set the Access Point's LAN interface configuration. 16. Set the following DHCP and Static IP Address/Subnet information for the LAN interface: • Use DHCP - Select the checkbox to enable an automatic network address configuration using the Access Point’s DHCP server.
  • Page 29 Installation Guide • DNS Forwarding - Select this option to allow a DNS server to translate domain names into IP addresses. If this option is not selected, a primary and secondary DNS resource must be specified. DNS forwarding is useful when a request for a domain name is made but the DNS server, responsible for converting the name into its corresponding IP address, cannot locate the matching IP address.
  • Page 30 AP6562 Access Point 19. Select Next. The Typical Setup Wizard displays the RADIUS Server Configuration screen if required. Otherwise, the Typical Setup Wizard displays the Summary and Commit screen. 20. Use the Radius Server Configuration screen to configure the users for the onboard RADIUS server. Use...
  • Page 31 Installation Guide 21. Select Add User to display the dialog to enter user information to add to the RADIUS server user database. 22. Enter the following user information: • Username - Provide a user name used to authenticate the user. •...
  • Page 32 AP6562 Access Point 28. Select Next. The Typical Setup Wizard displays the Summary and Commit screen to summarize the screens (pages) and settings updated using the Typical Setup Wizard. No user intervention or additional settings are required. Its an additional means of validating the Access Point’s updated configuration before it’s deployed.

  • Page 33: Specifications

    Power in (PoE) 802.3at 4.2 AP6562 Internal Antenna Model Physical Specifications An AP6562 internal antenna model access point has the following physical specifications: Dimensions 9.1 in W x 9.8 in H x 2.6 in D 23.1cm W x 24.9cm H x 24.9cm D...

  • Page 34: Ap6562 External Antenna Model Electrical Specifications

    AP6562 Access Point 4.4 AP6562 External Antenna Model Power Specifications An AP6562 external antenna model access point has the following power specifications: Operating voltage 36-57 VDC Power in (PoE) 802.3at 4.5 AP6562 External Antenna Model Physical Specifications An AP6562 external antenna model access point has the following physical specifications: Dimensions 9.1 in W x 9.8 in H x 2.6 in D...

  • Page 35: Radio Specifications

    Installation Guide 4.6 Radio Specifications AP6562 model access points have the following radio specifications: Data rates supported 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54Mbps 802.11a: 6,9,12,18,24,36,48, and 54Mbps 802.11n: MCS 0-15 up to 300Mbps Network standard 802.11a, 802.11b, 802.11g, 802.11n Wireless medium Direct Sequence Spread Spectrum (DSSS),...

  • Page 36: Regulatory Information

    This device is approved under Motorola Solutions, Inc. This guide applies to MODEL: AP6562 All Motorola devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following web site: http://www.motorolasolutions.com/support...

  • Page 37: Frequency Of Operation - Fcc And Ic

    FCC Grant and the IC Listing. The transmitter power settings for each of the authorized antennas are contained in the Motorola Antenna Guide. Avertissement: Le dispositive fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à...

  • Page 38: Safety In Hospitals

    The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on "International" human exposure to electromagnic fields refer to the Motorola Declaration of Conformity (DoC) at http://www.motorolasolutions.com/doc For further information on the safety of RF energy from wireless devices - see http://responsibility.motorolasolutions.com/index.php/ourapproach/wirelessscomhealth...

  • Page 39: Us And Canada

    Installation Guide 5.7 US and Canada Co-located statement To comply with FCC RF exposure compliance requirement, the antennas used for this transmitter must not be co-located or operating in conjunction with any other transmitter/antenna except those already approved in this filling.

  • Page 40: Radio Frequency Interference Requirements - Canada

    This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed in the Motorola Antenna Guides 72E-162906-01 at http://www.motorolasolutions.com...

  • Page 41: Ce Marking Ad European Economic Area (Eea)

    Brazil Declarações Regulamentares para AP6562 - Brasil Nota: A marca de certificação se aplica ao Transceptor, modelo AP6562. Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.
  • Page 42 AP6562 Access Point Mexico Restrict Frequency Range to: 2.450 – 2.4835 GHz. "La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada."...

  • Page 43: Waste Electrical And Electronic Waste Equipment (Weee)

    Installation Guide 5.14 Waste Electrical and Electronic Waste Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to Motorola Solutions for recycling. For information on how to return product, please go to: http://www.motorolasolutions.com/recycling/weee.

  • Page 44: Turkish Weee Statement Of Compliance

    AP6562 Access Point Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola Solutions til recirkulering, når de er udtjent. Læs oplysningerne om returnering af produkter på: http://www.motorolasolutions.com/recycling/weee. Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται...

  • Page 45: Motorola Solutions Support Center

    • Model number or product name • Software type and version number Motorola Solutions responds to calls by e-mail, telephone, or fax within the time limits set forth in support agreements. If you purchased your product from a Motorola Solutions business partner, contact that business partner for support.

  • Page 46: Ap6562 Access Point China Rohs Compliance

    (Hg) (Cd) (Parts) (PBB) (PBDE) (Metal Parts) (Circuit Modules) (Cables and Cable Assemblies) (Plastic and Polymeric Parts) (Optics and Optical Components) (Batteries) SJ/T11363-2006 SJ/T11363-2006 This table was created to comply with China RoHS requirements for Motorola Solutions‘ AP6562 Access Point.
  • Page 47 Installation Guide...
  • Page 48 Schaumburg, IL 60196-1078, U.S.A. http://www.motorolasolutions.com MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2013 Motorola Solutions, Inc. All Rights Reserved.
