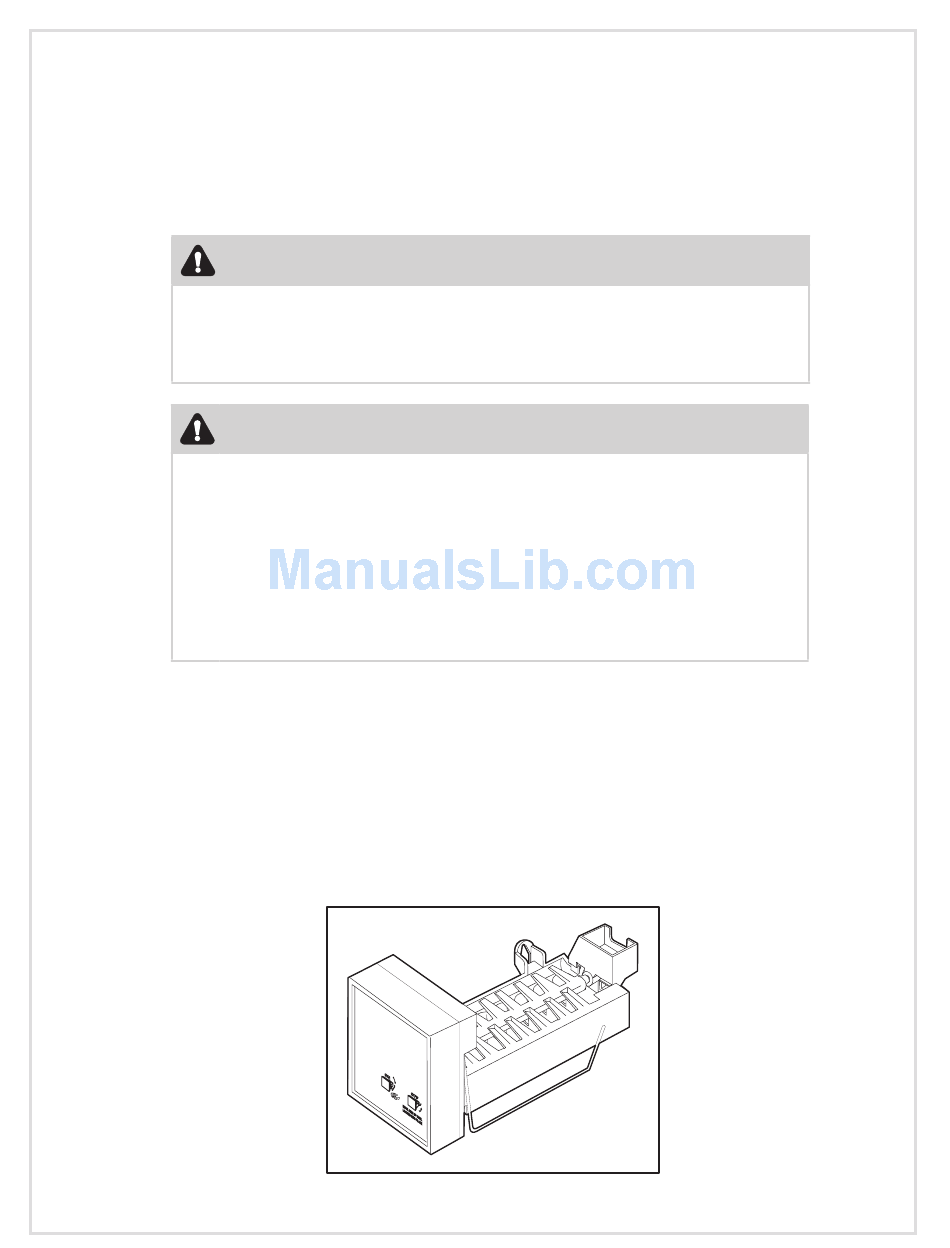

AUTOMATIC ICE MAKER
INSTALLATION INSTRUCTIONS
WARNING
To avoid electric shock, which can cause death or severe personal injury,
disconnect the refrigerator from electrical power before connecting a water
supply line to the refrigerator.
Connect the ice maker to a potable water supply only.
CAUTION
To Avoid Property Damage:
Copper tubing is recommended for the water supply line. Water supply tubing
made of 1/4" plastic is not recommended since it greatly increases the potential
for water leaks. The manufacturer will not be responsible for any damage if plastic
tubing is used for the supply line.
DO NOT
install water supply tubing in areas where temperatures fall below
freezing.
Chemicals from a malfunctioning water softener can damage the ice maker. If the
ice maker is connected to softened water, ensure that the softener is maintained
and working properly.
The following items will be required to install the ice maker kit.
1/4 inch copper or stainless steel supply line with shut off valve
1/4 inch brass compression nut and ferrule (cooper tubing only)
Freezer shelf (Some models not equipped with shelf). If your model does not have
one, contact your dealer to order one.
The copper tubing and shut off valve are available in a kit from your local hardware or
plumbing supply store. Coil enough tubing at the back of the unit to allow movement for
cleaning.
P/N: 242102400

Advertisement

   Related Manuals for Frigidaire 242102400

   Summary of Contents for Frigidaire 242102400

  • Page 1: Installation Instructions

    The copper tubing and shut off valve are available in a kit from your local hardware or plumbing supply store. Coil enough tubing at the back of the unit to allow movement for cleaning. P/N: 242102400...

  • Page 2

    USE ThIS PAgE TO IDENTIfy PARTS 1. Ice Maker 2. Ice Container 4. Leveling Bracket Screw 3. Screws - Qty 2 (used to mount leveling bracket to Ice maker) Tools Required: • Plastic Putty Knife • ¼ inch Socket Wrench or Nut Driver •...

  • Page 3

    ICE MAKER INSTALLATION INSTRUCTIONS  NOTE It requires the use of both hands to hook up and secure the Ice Maker to the freezer wall. DO NOT let the Ice Maker dangle free after the wiring harness is plugged into the connector on the back freezer wall.

  • Page 4: Connecting Ice Maker To Water Supply

    5305510264 (with a 20 ft. Copper Water Line with self- ® Your refrigerator’s water supply system includes several tubing tapping saddle valve). Please refer to www.frigidaire.com/store for lines, a water filter, a water valve, and a water tank. To ensure that more information.

  • Page 5

    AUTOMATIC ICE MAKER TIPS Remember that water quality determines your ice quality. If the water source uses a water softener, ensure that the softener is maintained and working properly. Chemicals from a malfunctioning softener can damage the ice maker. To stop the ice maker, lift the wire signal arm until it clicks and locks in the “up” or OFF position.
