Introduction..............................................................................
Important Safety Information............................................
Safety Instructions.................................................................. 4
Getting to Know Your Unit..................................................
Operating Procedures & Maintenance............................
Using Your Ice Maker.............................................................
Troubleshooting Guide........................................................
Limited Warranty...................................................................
USA CANADA 1-800-
EFIC255-GREY, EFIC255-BLACK,
EFIC255-NAVY, EFIC255-CREAM
ICE MAKER
2
3
5
6
7
11
12
13
Advertisement
Chapters
Table of Contents
Related Manuals for Frigidaire EFIC255-GREY
Summary of Contents for Frigidaire EFIC255-GREY
-
Page 1: Table Of Contents
EFIC255-GREY, EFIC255-BLACK, EFIC255-NAVY, EFIC255-CREAM ICE MAKER Introduction................Important Safety Information..........Safety Instructions..............4 Getting to Know Your Unit..........Operating Procedures & Maintenance......Using Your Ice Maker............. Troubleshooting Guide............Product Specifications............Limited Warranty..............USA CANADA 1-800-... -
Page 2: Introduction
INTRODUCTION When you unpack your ice maker, you may find a small amount of water inside. Your unit is brand new. Any water you may find is from the standard quality control testing that all of our ice makers undergo as part of the manufacturing process. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety Instructions WARNING • DO NOT store or use gasoline, or other flammable liquids in the vicinity Please read all instructions before using of this or any other appliance. Read this appliance. product labels for warnings regarding flammability and other hazards. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz GROUNDED OUTLET. This appliance must be grounded. It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. -
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Control panel 2. Drawer water tank: drawer for water 3. Drawer ice basket: drawer for ice 4. Drip tray 5. Unit shell 6. Water drain cap: after cleaning procedure, remove drain cap from the back of the appliance, pull out the cap from the drainpipe, empty the tank under the drawer, then reinsert the cap and put it back again. -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging, and then check all the accessories are included. If any parts are missing, please contact our customer service. 2. Remove all the tapes on the unit; take out the accessory parts inside. 3. -
Page 7: Using Your Ice Maker
USING YOUR ICE MAKER How to start the unit 1. Pull out the drawer water tank, Open the lid of the drawer water tank, pour potable water into drawer water tank, until the drawer water tank is filled with water, then push it back to the original place. 2. - Page 8 USING YOUR ICE MAKER Clean For the first time, or the clean procedure has not been running for a long time, it is highly recommended to run this procedure at first. 5. Before clean procedure, please fill the drawer tank with water and check the drainpipe behind the appliance, make sure the water drain cap has been inserted into the drainpipe;...
- Page 9 USING YOUR ICE MAKER When Ice Full indicator is on 12. The ice maker automatically stops working when the ice-cube is full inside and the “ ice full” Indicator is on. Open the Drawer Ice Basket 13. Hold the drawer handle gently and pull it out along the horizontal direction, until the back of the drawer contacts the front panel and then gently put it down, the drawer will have a certain angle hanging in the front panel.
- Page 10 USING YOUR ICE MAKER Take Out the Drawer Water Tank 16. Hold the handle of the drawer and gently pull it out in the horizontal direction until the bottom of the drawer hooks the frame, lift it up at a certain angle, and then pull it out to take out the drawer.
-
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSES SOLUTION Stop the ice maker, fill water, and press “ICE/ Lack of Water. CLEAN” button again to restart the unit. “Add Water” indicator lights up Reinstall the internal Internal water tank ba e is not water tank ba e in place. -
Page 12: Product Specifications
PRODUCT SPECIFICATIONS Input Voltage: 115V 60Hz Power Consumption: 185 W Daily Ice Output: 20 KGS/24H Refrigerant: R600a Dimensions Product Depth (IN.) 14.6 Product Height (IN.) 16.5 Product Width (IN.) 10... -
Page 13: Limited Warranty
LIMITED WARRANTY To make a warranty claim, please email support@curtiscs.com or call 1-800-968-9853. 1 Year warranty This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option;... - Page 14 FRIGIDAIRE GALLERY is a pending or registered trademark of Electrolux Home Products Inc. and used under a license from Electrolux Home Products, Inc.
- Page 15 EFIC255-GREY, EFIC255-BLACK, EFIC255-NAVY, EFIC255-CREAM APPAREIL À GLAÇON Les Instructions de Sécurité Importantes......Préparer Votre Machine À Glaçons Pour L'utiliser..Apprendre À Connaître Votre Unité........Procedures D'exploitation et Maintenance...... Utilisation de Votre Ice Maker..........Dépannage.................. Spécifications du Produit............Carte de Garantie..............
-
Page 16: Les Instructions De Sécurité Importantes
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Votresécuritéetlasécuritédesautressonttrèsimportant Nousavonsfourniplusieursmanuelsdesécuritéimportantsetvotreappareil. Lire et obéir à tous les messages de sécurité, s'il vous plaît C'estlesymboled'alertedesécurité: Touslesmessagesdesécuritésuivrontlesymboled'alertedesécuritéetlesmots« DANGER»ou«ATTENTION». DANGER ATTENTION Lessensdecesmots: Vouspouvezêtretuéougravementblessésivousnesuivezpasinstructions immédiatement. Touslesmessagesdesécuritévousdirontquelestledangerpotentiel, commentréduire lerisquedeblessureetcequipeutarriversilesinstructionsnesontpassuivies. Lorsque vous déballez votre machine à glaçons, vous pouvez trouver une petite quantité... -
Page 17: Préparer Votre Machine À Glaçons Pour L'utiliser
PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER LESCONSEILSDESÉCURITÉIMPORTANTS Lors de l'utilisation d'appareils électriques, des précautions de sécurité élémentaires doivent être respectées afin de réduire les risques d'incendie, d'électrocution et de blessures aux personnes ou aux biens. Lisez toutes les instructions avant d'utiliser un appareil. - Page 18 PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER DANGER - Risque d'incendie ou d'explosion. Utiliser un réfrigérant inflammable. Les réparations ne doivent être e ectuées que par du personnel de service qualifié. Ne percez pas les conduites de réfrigérant. CAUTION - Risque d'incendie ou d'explosion. Utiliser un réfrigérant inflammable. ...
-
Page 19: Apprendre À Connaître Votre Unité
APPRENDRE À CONNAÎTRE VOTRE UNITÉ 1. Panneau de configuration 2. Tiroir: tiroir de vidange 3. Panier à glace de type tiroir: tiroir à glace 4. Bac collecteur 5. Logement unitaire 6. Bouchon de vidange d'eau: après la procédure de nettoyage, retirez le bouchon devidange à... -
Page 20: Procedures D'exploitation Et Maintenance
PROCEDURES D'EXPLOITATION ET MAINTENANCE DÉBALLERVOTREMACHINEÀGLAÇONS 1. Retirez l'emballage extérieur et intérieur. Vérifiez que la corbeille à glace et la pelle à glace sont incluses. Si des pièces manquent, veuillez contacter notre service clientèle. 2. Retirer tout ruban adhésif de l'unit é; Enlevez les accessoires à l'intérieur. 3. -
Page 21: Utilisation De Votre Ice Maker
UTILISATION DE VOTRE ICE MAKER Comment démarrer l'unité 1. Retirez le réservoir d'eau du tiroir, ouvrez le couvercle du réservoir d'eau du tiroir, versez de l'eau potable dans le réservoir d'eau du tiroir, jusqu'à ce que le réservoir d'eau du tiroir soit rempli d'eau, puis repoussez-le à l'endroit d'origine. 2. - Page 22 UTILISATION DE VOTRE ICE MAKER Nettoyer Si vous utilisez la machine pour la première fois ou si vous n'avez pas exécuté la procédure de nettoyage pendant une longue période, il est fortement recommandé pour lancer la procédure de nettoyage en premier. 5.
- Page 23 UTILISATION DE VOTRE ICE MAKER 11. Lorsque la machine à glaçons est allumée, vérifiez périodiquement le niveau d'eau. Si la pompe à eau ne peut pas pomper l’eau, la machine à glaçons s’arrêtera automatiquement et l’indicateur «Ajouter de l’eau» s’allumera. Besoin de verser de l'eau dans le réservoir d'eau à...
- Page 24 UTILISATION DE VOTRE ICE MAKER Sortez le réservoir d'eau du tiroir 16. Tenez la poignée du tiroir et tirez-la doucement dans le sens horizontal jusqu'à ce que le bas du tiroir accroche le cadre, soulevez-le à un certain angle, puis tirez-le pour sortir le tiroir.
-
Page 25: Dépannage
DÉPANNAGE PROBLEM POSSIBLE CAUSES SOLUTION Arrêtez la machine à glaçons, remplissez d'eau Manque d'eau. et appuyez à nouveau sur le bouton «ICE» /«CLEAN» L'indicateur pour redémarrer l'appareil. «Ajouter de l'eau» s'allume Réinstallez le déflecteur Le déflecteur du réservoir d'eau du réservoir d'eau interne interne n'est pas installé... -
Page 26: Spécifications Du Produit
DÉPANNAGE La sortie d'air chaud doit être garantie d'avoir plus La sortie d'air chaud a été de 15 cm de distance de bloquée par quelque chose. ventilation. Faire de la glace Exigence de température La température de l'eau dans le trop lentementV de l'eau entre 44.6°F- réservoir interne est trop élevée. -
Page 27: Carte De Garantie
CARTE DE GARANTIE Pour faire une demande de garantie, veuillez envoyer un courriel électronique à support @curtiscs.com ou appeler le 1-800-968-9853. 1 ans de garantie Ce produit est garanti contre tout défaut de matériel et de fabrication pendant une période de un (1) ans à compter de la date d'achat d'origine. Pendant cette période, votre seul recours est la réparation ou le remplacement de ce produit ou composant jugé... - Page 28 Notre maison est votre maison. Visitez-nous si vous besoin d'aide pour l'une de ces choses: soutien du propriétaire un service FRIGIDAIRE GALLERY est une marque déposée ou en instance d'Electrolux Home Products Inc. Et utilisée sous licence d'Electrolux Home Products, Inc.
Need help?
Do you have a question about the EFIC255-GREY and is the answer not in the manual?
Questions and answers
Our ice maker will not make ice. Plugged in, filled water, hit ice button, water is just draining to the tank below. It doesn't appear the refrigerator motor is engaging. We've only had this appliance since October 2024.
I got it to work. Nevermind.
@Heather Whittier how did you fixt it?
If the Frigidaire EFIC255-GREY ice maker is not making ice and water is draining to the tank below, possible issues include:
1. The internal water tank baffle is not installed properly — reinstall it correctly.
2. The water pump may have failed — requires verification by a qualified technician.
3. The ambient or water temperature is too high — ensure it is below 90°F and use colder water.
This answer is automatically generated
@Heather Whittier What did you do to fix it?!
The ice button quit working
The ice button on the Frigidaire EFIC255-GREY may not be working because the water drain cap is not properly inserted into the drainpipe. If the cap is missing or not correctly placed, the appliance will not function properly. Ensure the drawer tank is filled with water and the drain cap is securely in place.
This answer is automatically generated
@Mr. Anderson it is in place properly and the unit is full of water. I ran the self-clean cycle but now the ice button won’t turn on.
having the same problem with our machine.
@or I am too the ice button is not turning on or working.

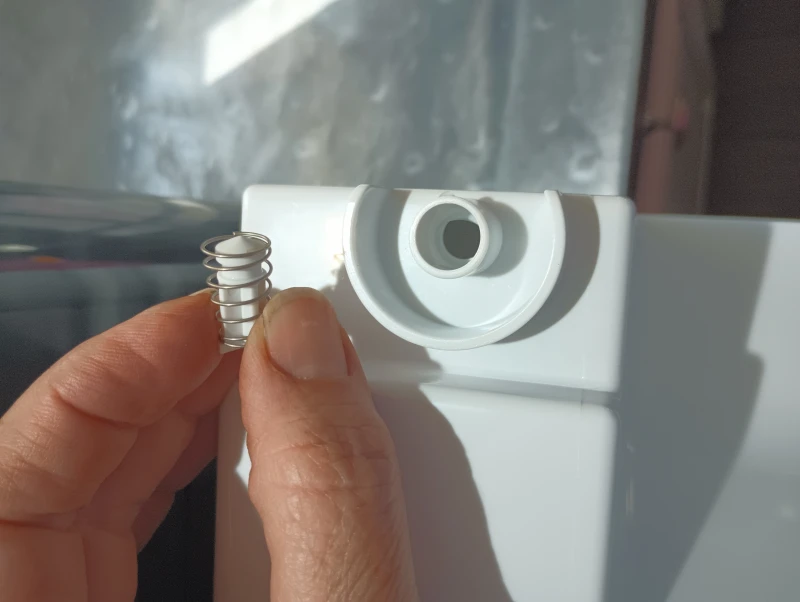

I need to get the plug and spring back into the water reservoir tank... any suggestions?
@Robin Driskill Is this the plug you are referring to? Mine slips right in the hole, but it appears that there is a rubber washer or some other part missing from mine. Husband tried to clean it and has lost something, but I don't know what it looks like. Do you have a picture of yours?
@Robin Driskill You need an O-Ring on the end of the plunger.
@Niki Spivey You need an O Ring on the end
it just fills the lower take with water. Light above the clean button will not light up.
The issue could be caused by the water drain cap not being inserted into the drainpipe. If the cap is not inserted, the appliance will not work properly, which can prevent the clean button light from illuminating. Make sure the drawer tank is filled with water and the drain cap is securely inserted into the drainpipe before starting the cleaning procedure.
This answer is automatically generated
Why are all the control panel lights not working
The control panel lights on the Frigidaire EFIC255-GREY may not be working due to one of the following reasons:
1. The unit is not properly plugged in or the power supply is interrupted.
2. There is a problem with the power cord, such as damage.
3. The appliance is not connected to a properly polarized outlet.
4. The fuse is blown or the circuit breaker is off at the household panel.
5. Pressing the Power ON/OFF button does not fully disconnect power; the unit must be unplugged or power must be shut off at the panel for maintenance.
Check the power connection and circuit breaker first.
This answer is automatically generated
My Machine will clean but that is it . None of the lights will come on except the clean light
If the Frigidaire EFIC255-GREY machine cleans but none of the lights, except the clean light, come on, it could indicate that the ice-making process has not started. This may be because:
1. The water tank is empty or not filled properly.
2. The internal water tank baffle is not installed correctly.
3. The unit was not restarted after cleaning.
To resolve this:
- Fill the water tank.
- Check and reinstall the internal water tank baffle.
- Press the "ICE/CLEAN" button again to restart the unit.
This answer is automatically generated
How to use the automatic cleaning feature.
To use the automatic cleaning feature on the Frigidaire EFIC255-GREY:
1. Fill the drawer tank with water.
2. Check that the water drain cap is inserted into the drainpipe at the back.
3. Press the “CLEAN” button; the clean icon will light up.
4. The cleaning procedure runs for at least 20 minutes, then the icon turns off.
5. To stop cleaning early, press the “CLEAN” button again.
6. After cleaning, move the appliance to the edge of the desktop.
7. Place a water container under the drain.
8. Remove the drain plug and pull out the plug from the drainpipe to drain the water.
9. Reinsert the plug and place it back.
This answer is automatically generated
Do I have to unscrew the back to clean out the internal tubes?
No, you do not need to unscrew the back of the Frigidaire EFIC255-GREY to clean the internal tubes. The cleaning procedure involves unplugging the unit, removing the drain pipe to drain water, adding a cleaning solution to the water reservoir, and using the "Clean" function.
This answer is automatically generated
How often should I deep clean this?
You should deep clean the Frigidaire EFIC255-GREY monthly to remove mineral deposits.
This answer is automatically generated
is this model completely self cleaning? I don't need to use diluted vinegar or diluted bleach to clean it?
No, the Frigidaire EFIC255-GREY model is not completely self-cleaning without the need for diluted vinegar or bleach. The cleaning process involves manually cleaning the interior with diluted detergent and warm water, rinsing, and draining. There is no mention of an automatic use of vinegar or bleach in the self-cleaning process.
This answer is automatically generated
