Page 2: Introduction
INTRODUCTION When you unpack your ice maker, you may find a small amount of water inside. Your unit is brand new. Any water you may find is from the standard quality control testing that all of our ice makers undergo as part of the manufacturing process. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety Instructions WARNING • DO NOT store or use gasoline, or other flammable liquids in the vicinity Please read all instructions before using of this or any other appliance. Read this appliance. product labels for warnings regarding flammability and other hazards. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz GROUNDED OUTLET. This appliance must be grounded. It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. -

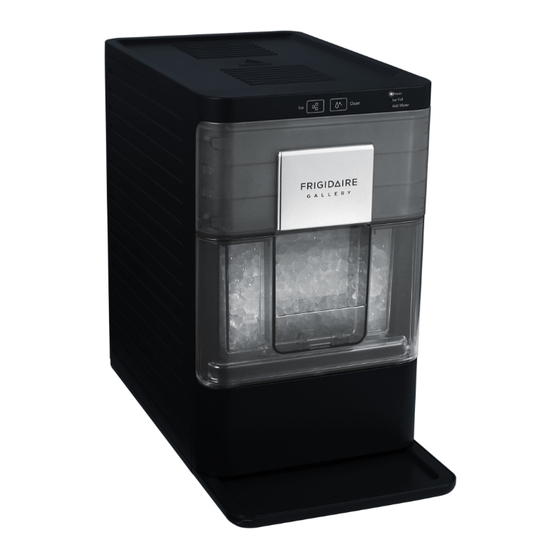

Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Control panel 2. Drawer water tank: drawer for water 3. Drawer ice basket: drawer for ice 4. Drip tray 5. Unit shell 6. Water drain cap: after cleaning procedure, remove drain cap from the back of the appliance, pull out the cap from the drainpipe, empty the tank under the drawer, then reinsert the cap and put it back again. -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging, and then check all the accessories are included. If any parts are missing, please contact our customer service. 2. Remove all the tapes on the unit; take out the accessory parts inside. 3. -
Page 7: Using Your Ice Maker
USING YOUR ICE MAKER How to start the unit 1. Pull out the drawer water tank, Open the lid of the drawer water tank, pour potable water into drawer water tank, until the drawer water tank is filled with water, then push it back to the original place. 2. - Page 8 USING YOUR ICE MAKER Clean For the first time, or the clean procedure has not been running for a long time, it is highly recommended to run this procedure at first. 5. Before clean procedure, please fill the drawer tank with water and check the drainpipe behind the appliance, make sure the water drain cap has been inserted into the drainpipe;...
- Page 9 USING YOUR ICE MAKER When Ice Full indicator is on 12. The ice maker automatically stops working when the ice-cube is full inside and the “ ice full” Indicator is on. Open the Drawer Ice Basket 13. Hold the drawer handle gently and pull it out along the horizontal direction, until the back of the drawer contacts the front panel and then gently put it down, the drawer will have a certain angle hanging in the front panel.
- Page 10 USING YOUR ICE MAKER Take Out the Drawer Water Tank 16. Hold the handle of the drawer and gently pull it out in the horizontal direction until the bottom of the drawer hooks the frame, lift it up at a certain angle, and then pull it out to take out the drawer.
- Page 11 USING YOUR ICE MAKER System Cleaning/Sanitizing Procedure To clean internal parts of nugget ice maker, please complete the following steps: 1. Unplug the nugget ice maker. 2. Remove the back drain pipe and drain the water into the sink. See the figure below. 3.
- Page 12 USING YOUR ICE MAKER 5. Plug in the Nugget ice maker, press the "Clean" button to initiate the cleaning process(20mins). See the figure below. drain pipe and drain the water into the sink. 7. Repeat the step 4 to 6 with fresh water for two more cycles to rinse the inside. 8.
-
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSES SOLUTION Stop the ice maker, fill water, and press “ICE/ Lack of Water. CLEAN” button again to restart the unit. “Add Water” indicator lights up Reinstall the internal Internal water tank baffle is not water tank baffle in place. installed in place. -
Page 14: Product Specifications
PRODUCT SPECIFICATIONS Input Voltage: 115V 60Hz Ice-Making Capacity: 44lbs/24H Out of Box Weight (lbs.): 33.5 In Box Weight (lbs.): 36.0 Box Dimensions (in.): 11.8X16.7X20.3 Power Cord Length (in.): 70.9 Unit Width (in.): 10.0 Unit Depth (in.): 14.6 Unit Height (in.): 16.5 Amperage of power required when unit is running: 2.5 A Wattage of power required when unit is running: 185 W... -
Page 15: Limited Warranty
LIMITED WARRANTY To make a warranty claim, please email support2@curtiscs.com or call 1-800-968-9853. 1 Year warranty This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option;... - Page 16 FRIGIDAIRE GALLERY is a pending or registered trademark of Electrolux Home Products Inc. and used under a license from Electrolux Home Products, Inc.
- Page 17 EFIC255-GREY, EFIC255-BLACK, EFIC255-NAVY, EFIC255-CREAM, EFIC165-BLACK, EFIC256-BLACK, EFIC256-GREY, EFIC256-NAVY, EFIC202-BLACK, EFIC202-WHITE APPAREIL À GLAÇON Les Instructions de Sécurité Importantes......Préparer Votre Machine À Glaçons Pour L'utiliser..Apprendre À Connaître Votre Unité........Procedures D'exploitation et Maintenance...... Utilisation de Votre Ice Maker......... 7-12 Dépannage..................
-
Page 18: Les Instructions De Sécurité Importantes
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Votresécuritéetlasécuritédesautressonttrèsimportant Nousavonsfourniplusieursmanuelsdesécuritéimportantsetvotreappareil. Lire et obéir à tous les messages de sécurité, s'il vous plaît C'estlesymboled'alertedesécurité: Touslesmessagesdesécuritésuivrontlesymboled'alertedesécuritéetlesmots« DANGER»ou«ATTENTION». DANGER ATTENTION Lessensdecesmots: Vouspouvezêtretuéougravementblessésivousnesuivezpasinstructions immédiatement. Touslesmessagesdesécuritévousdirontquelestledangerpotentiel, commentréduire lerisquedeblessureetcequipeutarriversilesinstructionsnesontpassuivies. Lorsque vous déballez votre machine à glaçons, vous pouvez trouver une petite quantité... -
Page 19: Préparer Votre Machine À Glaçons Pour L'utiliser
PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER LESCONSEILSDESÉCURITÉIMPORTANTS Lors de l'utilisation d'appareils électriques, des précautions de sécurité élémentaires doivent être respectées afin de réduire les risques d'incendie, d'électrocution et de blessures aux personnes ou aux biens. Lisez toutes les instructions avant d'utiliser un appareil. - Page 20 PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER DANGER - Risque d'incendie ou d'explosion. Utiliser un réfrigérant inflammable. Les réparations ne doivent être effectuées que par du personnel de service qualifié. Ne percez pas les conduites de réfrigérant. CAUTION - Risque d'incendie ou d'explosion. Utiliser un réfrigérant inflammable. Consultez le manuel de service / guide de l'utilisateur avant d'essayer d'installer ou de réparer ce produit.
-
Page 21: Apprendre À Connaître Votre Unité
APPRENDRE À CONNAÎTRE VOTRE UNITÉ 1. Panneau de configuration 2. Tiroir: tiroir de vidange 3. Panier à glace de type tiroir: tiroir à glace 4. Bac collecteur 5. Logement unitaire 6. Bouchon de vidange d'eau: après la procédure de nettoyage, retirez le bouchon devidange à... -
Page 22: Procedures D'exploitation Et Maintenance
PROCEDURES D'EXPLOITATION ET MAINTENANCE DÉBALLERVOTREMACHINEÀGLAÇONS 1. Retirez l'emballage extérieur et intérieur. Vérifiez que la corbeille à glace et la pelle à glace sont incluses. Si des pièces manquent, veuillez contacter notre service clientèle. 2. Retirer tout ruban adhésif de l'unit é; Enlevez les accessoires à l'intérieur. 3. -
Page 23: Utilisation De Votre Ice Maker
UTILISATION DE VOTRE ICE MAKER Comment démarrer l'unité 1. Retirez le réservoir d'eau du tiroir, ouvrez le couvercle du réservoir d'eau du tiroir, versez de l'eau potable dans le réservoir d'eau du tiroir, jusqu'à ce que le réservoir d'eau du tiroir soit rempli d'eau, puis repoussez-le à l'endroit d'origine. 2. - Page 24 UTILISATION DE VOTRE ICE MAKER Nettoyer Si vous utilisez la machine pour la première fois ou si vous n'avez pas exécuté la procédure de nettoyage pendant une longue période, il est fortement recommandé pour lancer la procédure de nettoyage en premier. 5.
- Page 25 UTILISATION DE VOTRE ICE MAKER 11. Lorsque la machine à glaçons est allumée, vérifiez périodiquement le niveau d'eau. Si la pompe à eau ne peut pas pomper l’eau, la machine à glaçons s’arrêtera automatiquement et l’indicateur «Ajouter de l’eau» s’allumera. Besoin de verser de l'eau dans le réservoir d'eau à...
- Page 26 UTILISATION DE VOTRE ICE MAKER Sortez le réservoir d'eau du tiroir 16. Tenez la poignée du tiroir et tirez-la doucement dans le sens horizontal jusqu'à ce que le bas du tiroir accroche le cadre, soulevez-le à un certain angle, puis tirez-le pour sortir le tiroir.
- Page 27 UTILISATION DE VOTRE ICE MAKER Procédure de nettoyage / désinfection du système Pour nettoyer les parties internes de la machine à glaçons en or, suivez les étapes suivantes: 1. Retirez la machine à glace en or. 2. Retirer le tuyau de drainage arrière et drainer l'eau dans le réservoir. Voir la figure ci - dessous.
- Page 28 UTILISATION DE VOTRE ICE MAKER 5. Insérez la machine à glace Nugget et appuyez sur le bouton « nettoyer » pour démarrer le processus de nettoyage (20 minutes).Voir la figure ci - dessous. 6. Une fois le nettoyage terminé et l'indicateur éteint, retirer le drain arrière et drainer l'eau dans le réservoir.
-
Page 29: Dépannage
DÉPANNAGE PROBLEM POSSIBLE CAUSES SOLUTION Arrêtez la machine à glaçons, remplissez d'eau Manque d'eau. et appuyez à nouveau sur le bouton «ICE» /«CLEAN» L'indicateur pour redémarrer l'appareil. «Ajouter de l'eau» s'allume Réinstallez le déflecteur Le déflecteur du réservoir d'eau du réservoir d'eau interne interne n'est pas installé... -
Page 30: Spécifications Du Produit
DÉPANNAGE La sortie d'air chaud doit être garantie d'avoir plus La sortie d'air chaud a été de 15 cm de distance de bloquée par quelque chose. ventilation. Faire de la glace Exigence de température La température de l'eau dans le trop lentementV de l'eau entre 44.6°F- réservoir interne est trop élevée. -
Page 31: Carte De Garantie
CARTE DE GARANTIE Pour faire une demande de garantie, veuillez envoyer un courriel électronique à support2@curtiscs.com ou appeler le 1-800-968-9853. 1 ans de garantie Ce produit est garanti contre tout défaut de matériel et de fabrication pendant une période de un (1) ans à compter de la date d'achat d'origine. Pendant cette période, votre seul recours est la réparation ou le remplacement de ce produit ou composant jugé... - Page 32 Notre maison est votre maison. Visitez-nous si vous besoin d'aide pour l'une de ces choses: soutien du propriétaire un service support2@curtiscs.com FRIGIDAIRE GALLERY est une marque déposée ou en instance d'Electrolux Home Products Inc. Et utilisée sous licence d'Electrolux Home Products, Inc.
Need help?
Do you have a question about the Gallery EFIC202-BLACK and is the answer not in the manual?
Questions and answers
How much water does the reservoir hold?

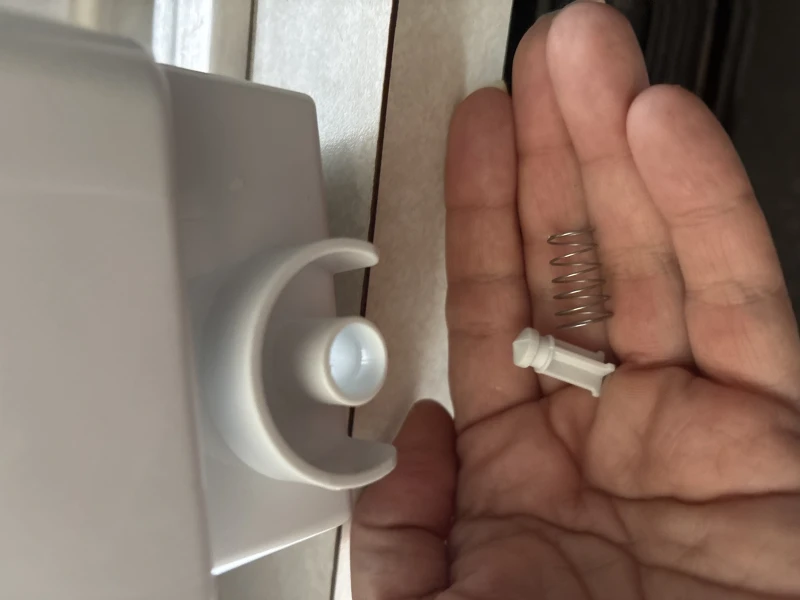

There is a small white piece on the back of the water tank with a spring on it. This has come off of the tank and now won’t go back on. It’s not holding the water in. Just need a picture of this section of the ice maker to see how it goes in.
@Sharron Washington Did you ever figure out how to get this piece back on so the tank will hold water?
UPDATE: For those seeing this comment, in @Sharron Washingtons’s picture of the spring loaded drain plug, there is a clearish white o-ring that goes around the collar of that white plastic plug. Mine popped off as I was cleaning it also and I eventually found it in my sink where I was cleaning it. The o-ring popped off the plug and I was left scratching my head as to how this plug goes back in and works to stop water from flowing out. I knew I was missing something so I had to look everywhere. That o-ring is pivotal in plugging the drain hole when the tank is pulled out of the machine.
The small white piece with a spring is the baffle for the internal water tank. To reinstall it, lift the baffle up to the top, then place it back into its original position behind the water tank. Make sure it is properly aligned and secured in place.
This answer is automatically generated
@JT, I did figure it out. I purchased different size rubber orings, the oring holds the plunger in place and prevents water leaking. I finally found the right size, it’s working fine now.
frigidaire galaxy cutoff permanently during the nite. All ice dissolved. unplugged and replugged to reset still nothing illuminates nor will machine come on
The Frigidaire Gallery EFIC202-BLACK ice maker may not turn on after cutting off overnight due to several possible reasons:
1. Power Issue – Ensure the unit is plugged in properly and the outlet is functional.
2. Blocked Hot Air Outlet – The hot air outlet must have at least 15 cm of ventilation. If blocked, it may cause the unit to shut down.
3. Refrigerant Issues – If the refrigerant liquid has leaked or the cooling system pipes are blocked, the unit may stop functioning. A qualified technician should verify this.
4. Cover Motor Problem – A broken cover motor could prevent the ice maker from operating.
5. High Water Temperature – If the water inside the tank is too warm (above 89.6°F), the unit may not function properly.
6. Drain Plug Issues – Ensure the drain plug is in place to avoid water leaks that might affect operation.
Try restarting the unit by pressing the ICE button to turn it off, then pressing it again to restart. If the problem persists, seek assistance from a qualified technician.
This answer is automatically generated
@Mr. Anderson excellent suggestions!! I plugged the unit, pressed the ice button and it started operating immediately. So far it has been making ice for 4 hours. Thank you for your help!! I was ready to discard…I **** so glad I received your recommendations!!
Ice is not making ice and ice that is made melting
The Frigidaire Gallery EFIC202-BLACK may not be making ice due to the following reasons:
1. The ambient temperature or the water temperature in the internal reservoir is too high. Ensure the machine is operated below 90°F and use colder water.
2. The ice-full indicator may be on. Press and hold the ice-making button for 5 seconds to reset and restart ice production.
3. There may be a refrigerant leak. If this issue persists, it should be checked by a qualified technician.
4. The cooling system tube may be blocked.
Ice may be melting because:
1. The air outlet is blocked, preventing proper cooling. Ensure there is at least 15 cm of clearance around the air outlet.
2. A malfunction in the cooling system is preventing effective ice storage.
This answer is automatically generated
my maker is making the loud noise

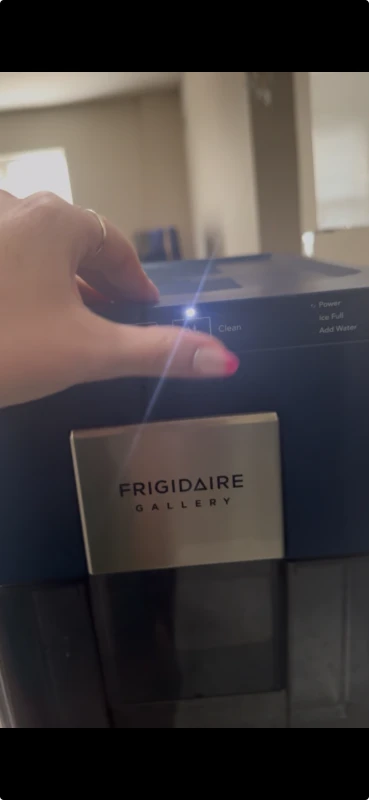

Plugged in the ice maker, the power button lights up, I click on the clean button and that lights up but the ice button does not light up and does not produce ice
If the Frigidaire EFIC202-BLACK ice maker is not producing ice even though the power and clean buttons are lighting up, possible issues include:
1. Lack of water – Add water to the tank and press the “ICE/CLEAN” button again to restart.
2. Internal water tank baffle not installed properly – Reinstall the baffle correctly.
3. Water pump failure – Requires verification by a qualified technician.
4. Too much ice or obstruction – Remove any obstacles or clean the inside wall of the ice storage.
5. Refrigerant leakage or broken motor – Press the ICE button to restart. If the issue continues, have a technician inspect.
6. Cooling pipe blockage – Requires technical verification.
7. High water temperature – Use water between 44.6°F and 89.6°F.
8. Drain plug not in place – Ensure the drain plug is correctly inserted.
Check each of these to identify and fix the issue.
This answer is automatically generated
The icemaker EFIC 256 ( color Navy). Water runs into the ice bucket not making ice. What is wrong?
Water running into the ice bucket without making ice in the Frigidaire EFIC202-BLACK icemaker could be caused by a high water temperature in the inner tank, which should be between 44.6°F and 89.6°F. It could also indicate a malfunction in the refrigeration system, which would require verification by a qualified technician.
This answer is automatically generated
How to do I hard restart?
To hard restart the Frigidaire EFIC202-BLACK ice maker, press and hold the "ICE" button for 5 seconds. This forces the unit to cancel the "Ice-Full" status and restarts ice making for 80 minutes.
This answer is automatically generated
How do I reinstall the baffle?
To reinstall the baffle on the Frigidaire EFIC202-BLACK, place it back into its original position after cleaning the water tank behind it.
This answer is automatically generated
Ice button will not come on. Unit is only 6 months old.
If the ICE button on a Frigidaire EFIC202-BLACK does not turn on, check for the following issues:
1. Ensure the unit is plugged into a properly grounded 110–115V, 60Hz outlet.
2. If the power and ICE icon are flashing, press the ICE button to power off the unit, then press it again to restart the ice-making program.
3. If the problem continues, the issue could be due to refrigerant leakage, a broken cover motor, or a blocked pipe in the cooling system. These should be verified by a qualified technician.
This answer is automatically generated
After cleaning the ice maker, we are unable to put the Drawer Water Tank back in totally. It appears to be hitting the water value nut not allowing it slide in as it should. The nut was removed and put back on during cleaning. Any suggestions?
If the Drawer Water Tank is not fitting properly after cleaning, ensure the following steps are completed:
1. Make sure the water tank under the drawer ice basket is empty. If it's not, unplug the water drain plug to drain it completely.
2. Confirm that the drip tray is in the correct position.
3. Ensure the lid of the drawer water tank is properly closed before pushing it back.
Following these steps can help the drawer water tank fit correctly.
This answer is automatically generated
