Frigidaire EFIC228-SS Use & Care Manual

Frigidaire EFIC228-SS Use & Care Manual

Crunchy chewable nugget ice maker

Advertisement

Available languages

Available languages

EN
Introduction..............................................................................
Important Safety Information............................................
Safety Instructions.................................................................. 4
Getting to Know Your Unit..................................................
Operating Procedures & Maintenance............................
Using Your Ice Maker........................................................
Troubleshooting Guide........................................................
Limited Warranty...................................................................
USA CANADA 1-800-
CRUNCHY CHEWABLE
NUGGET ICE MAKER
EFIC228-SS,EFIC228-SS-E,
EFIC228-SSBLACK
7-11
2
3
5
6
12
13
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFIC228-SS and is the answer not in the manual?

Questions and answers

Rich Ashby
May 10, 2025

Can’t remove cover of ice maker to pull out chord. Can’t find a snap

Jerry lewis
May 3, 2025

it is not making ice

1 comments:
Mr. Anderson
May 17, 2025

The Frigidaire EFIC228-SS may not be making ice due to the following reasons:

1. The machine is full of ice – the "Ice Full" indicator light will be on, and the ring light will be white. Remove the ice to resume operation.
2. Lack of water – the "Add Water" light turns on. Fill the tank and press the "ICE/CLEAN" button to restart.
3. Ambient or water temperature is too high – operate below 90°F and use colder water.
4. Refrigerant leakage or cover motor failure – if the ring indicator flashes red, press the ICE button twice to restart. If the issue persists, service is needed.
5. Obstacles or dirt inside the ice storage – clean the interior or remove any blockages.
6. The drainage cover is not inserted – the machine will not work properly without it.

This answer is automatically generated

Molly Holmgren
March 27, 2025

I am trying to clean it and not sure if it’s in clean mode or not

1 comments:
Mr. Anderson
March 27, 2025

When the Frigidaire EFIC228-SS is in clean mode, the ring indicator light will flash white. The cleaning procedure runs for 15 minutes and exits automatically.

This answer is automatically generated

Lindsey
February 7, 2025

Machine turns on. Water is added to the correct level. Won't make ice. When holding the button in for cleaning the red ice full light comes on. And nothing else happens. Have taken the machine apart for cleaning. Cleaned all parts that I **** able. Put back together. Refilled with correct amount of water and turned back on for ice making and nothing happens.

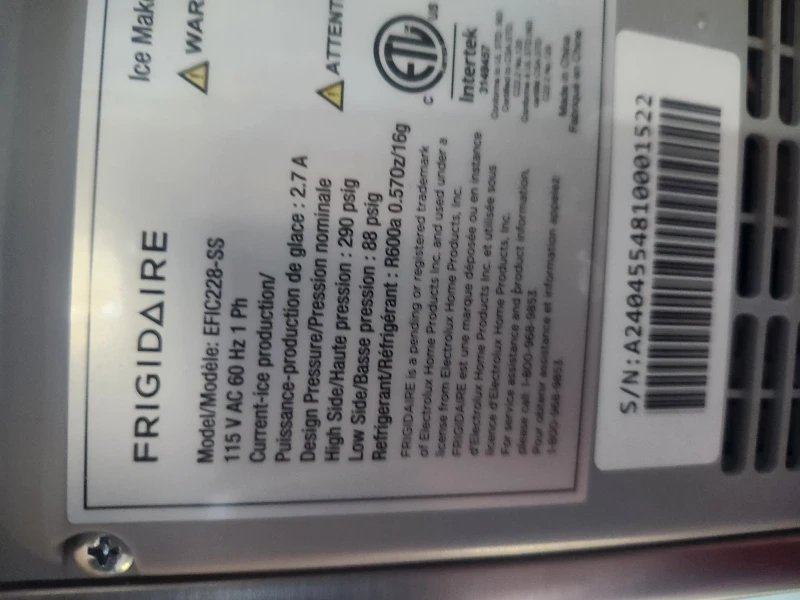

User image 67a628bf38a46
1 comments:
Mr. Anderson
February 11, 2025

The Frigidaire EFIC228-SS ice maker may not be producing ice after cleaning and refilling with water due to several possible reasons:

1. Water Shortage – Ensure that there is enough water in the reservoir. If the "ADD WATER" indicator is on, add water and press the “Ice / Clean” button to restart the unit.
2. Ice Storage Full – If the "ICE FULL" indicator is on, check for excess ice obstructing the sensor. Remove any ice buildup or obstacles inside the storage area.
3. High Temperature – If the ambient temperature or water temperature is too high, the unit may not function properly. Operate the ice maker in an environment below 90°F and use cooler water.
4. Refrigerant Leak or Cooling System Issue – If the red indicator ring is flashing, there may be a refrigerant leak, blocked cooling system tubes, or a damaged lid motor. Try restarting by pressing the "Ice" button twice. If the issue persists, a technician may be needed.

Following these troubleshooting steps should help restore normal ice-making operation.

This answer is automatically generated

Kare
July 27, 2025

My ice started making noises and quit making ice what might be wrong I have only had it since May and was a gift!

Sandra Mccall
June 10, 2025

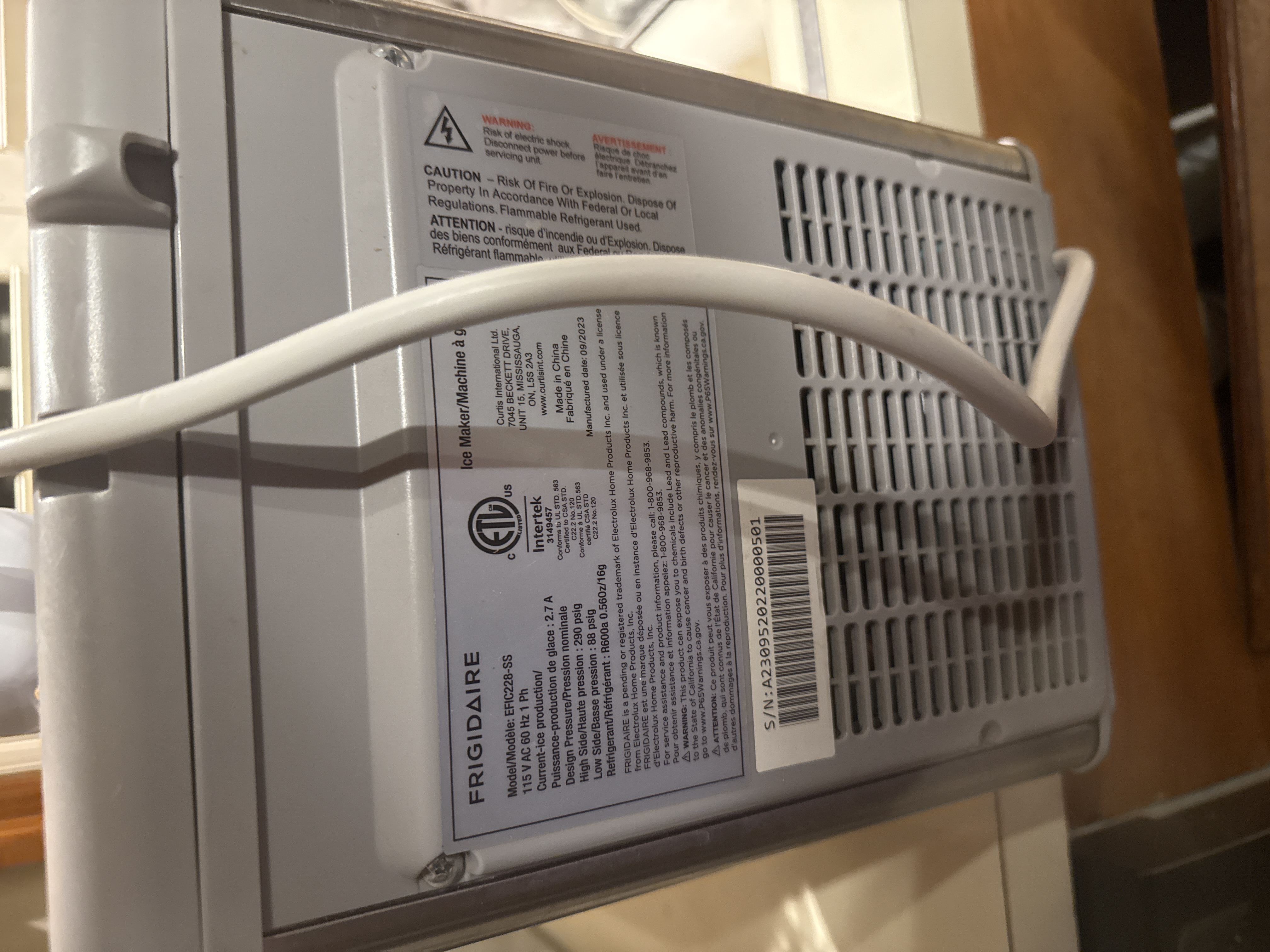

My Frigidaire ice maker model EFIC-228-SS made ice this morning and then just quit making ice. Light was on had plenty of water.

User image 68478498c561d
Sue Miller
February 1, 2025

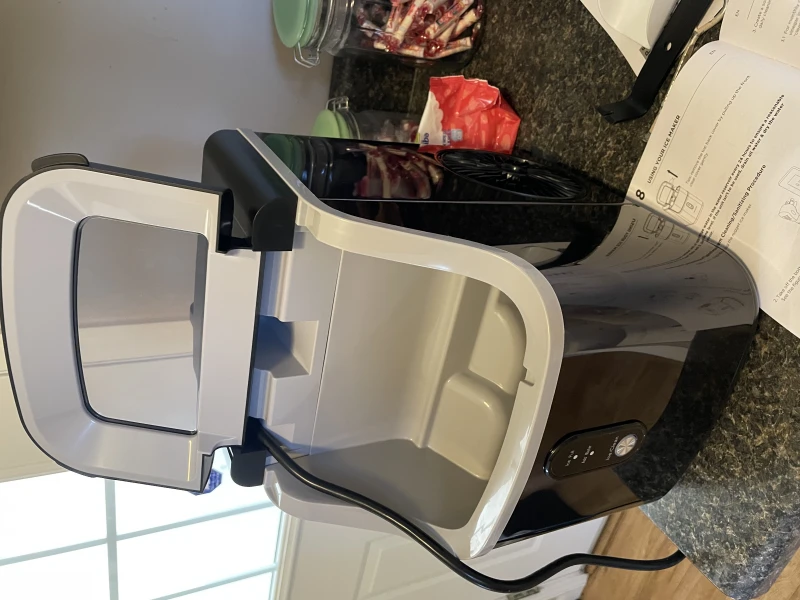

I’m setting up my Frigidaire efic228 nugget ice maker. The instructions said to pull up the cover to remove the cord. I can’t get it to budge.

User image 679e779ab93b3
Anthony Taylor
May 24, 2025

Making a lot of noise like a squeaking noise

Summary of Contents for Frigidaire EFIC228-SS

  • Page 1: Table Of Contents

    EFIC228-SS,EFIC228-SS-E, EFIC228-SSBLACK CRUNCHY CHEWABLE NUGGET ICE MAKER Introduction................Important Safety Information..........Safety Instructions..............4 Getting to Know Your Unit..........Operating Procedures & Maintenance......Using Your Ice Maker............7-11 Troubleshooting Guide............Product Specifications............Limited Warranty..............USA CANADA 1-800-...
  • Page 2: Introduction

    INTRODUCTION When you unpack your ice maker, you may find a small amount of water inside. Your unit is brand new. Any water you may find is from the standard quality control testing that all of our ice makers undergo as part of the manufacturing process.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING • DO NOT store or use gasoline, or other flammable liquids in the vicinity Please read all instructions before using of this or any other appliance. Read this appliance. product labels for warnings regarding flammability and other hazards. •...
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz GROUNDED OUTLET. This appliance must be grounded. It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
  • Page 5: Getting To Know Your Unit

    GETTING TO KNOW YOUR UNIT 1. Float switch 2. Secondary water reservoir: It connects directly with the evaporator 3. Water reservoir 4. Maximum water level 5. Filter 6. Control Panel: A. Ice making and cleaning buttons B. Ring indicator light C.
  • Page 6: Operating Procedures & Maintenance

    OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging, and then check all the accessories are included. If any parts are missing, please contact our customer service. 2. Remove all the tapes on the unit; take out the accessory parts inside. 3.
  • Page 7: Using Your Ice Maker

    USING YOUR ICE MAKER 1. Remove the top cover, and take out the power cord. 2. Take out the ice basket, pour potable water into water reservoir, 0.3-gallon water at most at one time. 3. Put back the ice basket. 4.
  • Page 8 USING YOUR ICE MAKER Tips: remove the top back cover by pulling up the front clear cover gently. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If the unit isn’t to be used, drain all water & dry the water reservoir.
  • Page 9 USING YOUR ICE MAKER 3. Produce a solution by diluting one teaspoon of household bleach with five cups of water for daily cleaning. For monthly cleaning of removing mineral deposits, please use the white vinegar instead of the above water solution (and then plug in to turn on the “cleaning function”...
  • Page 10 USING YOUR ICE MAKER 7. Repeat the step 4 to 6 with fresh water for two more cycles to rinse the inside. 8. Replace the drain cap on the bottom. See the figure below. 9. When completed, fill the unit with fresh water and press the "Ice" button to start ice making process.
  • Page 11 USING YOUR ICE MAKER How to obtain the ice-cube 1. Before we start making ice, please make sure the water drain cap has been inserted into the appliance; otherwise it will not work properly. 2. Press “Ice/Clean” button , ring indicator light flashes white,it begin to work, press this button again, it will stop making ice.
  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSES SOLUTION Stop the ice maker, fill “ADD WATER” water, and press “ICE/ Lack of Water. indicator light turns on. CLEAN” button again to restart the unit. Suggest you to obtain the There is too much ice. ice-cube.
  • Page 13: Product Specifications

    PRODUCT SPECIFICATIONS Input Voltage: 115V 60Hz Power Consumption: 192 W Daily Ice Output: 10-15 KGS / 24H Refrigerant: R600a Dimensions Product Depth (IN.) 8.6 Product Height (IN.) 11.3 Product Width (IN.) 12.6 Out of Box Weight (lbs.): 20.5 In Box Weight (lbs.): 22.2 Box Dimensions (in.): 9.9X12.5X14.3 Power Cord Length (in.): 70.9 Amperage of power required when unit is running: 2.7 A...
  • Page 14: Limited Warranty

    LIMITED WARRANTY To make a warranty claim, please email support2@curtiscs.com or call 1-800-968-9853. 1 Year warranty This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option;...
  • Page 15 FRIGIDAIRE is a pending or registered trademark of Electrolux Home Products Inc. and used under a license from Electrolux Home Products, Inc.
  • Page 16 EFIC228-SS,EFIC228-SS-E, EFIC228-SSBLACK MACHINE A GLAÇONS CROUSTILLANTES A CROQUER Les Instructions de Sécurité Importantes......Préparer Votre Machine À Glaçons Pour L'utiliser..Apprendre À Connaître Votre Unité........Procedures D'exploitation et Maintenance...... Utilisation de Votre Ice Maker.......... 7-11 Dépannage.................. Spécifications du Produit............Carte de Garantie..............
  • Page 17: Les Instructions De Sécurité Importantes

    LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Votresécuritéetlasécuritédesautressonttrèsimportant Nousavonsfourniplusieursmanuelsdesécuritéimportantsetvotreappareil. Lire et obéir à tous les messages de sécurité, s'il vous plaît C'estlesymboled'alertedesécurité: Touslesmessagesdesécuritésuivrontlesymboled'alertedesécuritéetlesmots« DANGER»ou«ATTENTION». DANGER ATTENTION Lessensdecesmots: Vouspouvezêtretuéougravementblessésivousnesuivezpasinstructions immédiatement. Touslesmessagesdesécuritévousdirontquelestledangerpotentiel, commentréduire lerisquedeblessureetcequipeutarriversilesinstructionsnesontpassuivies. Lorsque vous déballez votre machine à glaçons, vous pouvez trouver une petite quantité...
  • Page 18: Préparer Votre Machine À Glaçons Pour L'utiliser

    PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER LESCONSEILSDESÉCURITÉIMPORTANTS Lors de l'utilisation d'appareils électriques, des précautions de sécurité élémentaires doivent être respectées afin de réduire les risques d'incendie, d'électrocution et de blessures aux personnes ou aux biens. Lisez toutes les instructions avant d'utiliser un appareil.
  • Page 19 PRÉPARER VOTRE MACHINE À GLAÇONS POUR L'UTILISER IMPORTANT: Les fils de ce cordon d'alimentation sont colorés conformément au code suivant: Vert ou vert avec une bande jaune: mise à la terre Blanc: neutre Noir: Live Pour éviter un danger dû à l'instabilité de l'appareil, celui-ci doit être placé sur une surface plane ou plane.
  • Page 20: Apprendre À Connaître Votre Unité

    APPRENDRE À CONNAÎTRE VOTRE UNITÉ 1. Interrupteur à flotteur 2. Réservoir d'eau secondaire: connexion directe avec l'évaporateur 3. Réservoir 4. Niveau d'eau le plus élevé 5. Filtres 6. Panneau de contrôle: A. bouton de fabrication de glace et de nettoyage B.
  • Page 21: Procedures D'exploitation Et Maintenance

    PROCEDURES D'EXPLOITATION ET MAINTENANCE DÉBALLERVOTREMACHINEÀGLAÇONS 1. Retirez les emballages externes et internes, puis Vérifiez que tous les accessoires sont inclus. Si des pièces sont manquantes, veuillez contacter notre service clientèle. 2. Enlever tout le ruban adhésif sur l'unité; Retirez les accessoires à l'intérieur. 3.
  • Page 22: Utilisation De Votre Ice Maker

    UTILISATION DE VOTRE ICE MAKER Comment démarrer une unité 1. Retirez le couvercle supérieur et retirez le cordon d'alimentation. 2. Retirez le panier de glace et versez de l'eau potable dans le réservoir jusqu'à 0,3 gallon d'eau à la fois. 3.
  • Page 23 UTILISATION DE VOTRE ICE MAKER Conseil chaleureux: retirez le couvercle arrière supérieur en tirant doucement le couvercle transparent avant. Changez l'eau de votre réservoir toutes les 24 heures pour assurer un niveau d'hygiène raisonnable. Si vous n'utilisez pas l'unité, drainez toute l'eau et séchez la citerne.
  • Page 24 UTILISATION DE VOTRE ICE MAKER 3. Diluez une cuillère à café d'eau de javel domestique dans cinq tasses d'eau pour créer une solution à utiliser pour le nettoyage quotidien. Utilisez du vinaigre blanc à la place de la solution aqueuse ci - dessus lors du nettoyage mensuel pour éliminer les dépôts minéraux (puis branchez - le pour activer la fonction de nettoyage pendant environ 5 minutes, puis Débranchez - le à...
  • Page 25 UTILISATION DE VOTRE ICE MAKER 7. Répétez les étapes 4 à 6 avec de l'eau douce, Recyclez deux fois et rincez l'intérieur. 8. Remplacez le couvercle de décharge en bas. Voir l'image ci - dessous. 9. Une fois terminé, remplissez l'unité avec de l'eau douce, puis appuyez sur le bouton "make ice"...
  • Page 26 UTILISATION DE VOTRE ICE MAKER Comment obtenir des glaçons 1. Avant de commencer à faire de la glace, assurez - vous que le couvercle de drainage est inséré dans l'appareil; Sinon, il ne fonctionnera pas correctement. 2. Appuyez sur le bouton "Ice/Clean", le voyant annulaire clignote en blanc, il commence à...
  • Page 27: Dépannage

    DÉPANNAGE PROBLÈME CAUSES POSSIBLES SOLUTION Arrêtez la machine à glaçons, ajoutez de l'eau “ADD WATER” et appuyez à nouveau Manque d'eau. Le voyant s'allume. sur le bouton “Ice / Clean” pour redémarrer l'unité. Il est recommandé d'aller Il y a trop de glace. chercher de la glace.
  • Page 28: Spécifications Du Produit

    SPÉCIFICATIONS DU PRODUIT Tension D'entrée: 115V 60Hz Consommation Électrique: 192 W Débit Quotidien de Glace: 10-15 KGS / 24H Réfrigérant: R600a Dimensions Profondeur du Produit (EN.) 8,6 Hauteur du Produit (EN) 11,3 Largeur du Produit (EN) 12,6 Poids de déballage (LB): 20,5 Poids dans la boîte (LB): 22,2 Taille de la boîte (pouces): 9,9X12,5X14,3 Longueur du cordon d'alimentation (pouces): 70,9...
  • Page 29: Carte De Garantie

    CARTE DE GARANTIE Pour faire une demande de garantie, veuillez envoyer un courriel électronique à support2@curtiscs.com ou appeler le 1-800-968-9853. 1 ans de garantie Ce produit est garanti contre tout défaut de matériel et de fabrication pendant une période de un (1) ans à compter de la date d'achat d'origine. Pendant cette période, votre seul recours est la réparation ou le remplacement de ce produit ou composant jugé...
  • Page 30 Notre maison est votre maison. Visitez-nous si vous besoin d'aide pour l'une de ces choses: soutien du propriétaire un service support2@curtiscs.com FRIGIDAIRE est une marque déposée ou en instance d'Electrolux Home Products Inc. Et utilisée sous licence d'Electrolux Home Products, Inc.

This manual is also suitable for:

Efic228-ss-eEfic228-ssblack
