1-5-2 Outer covers

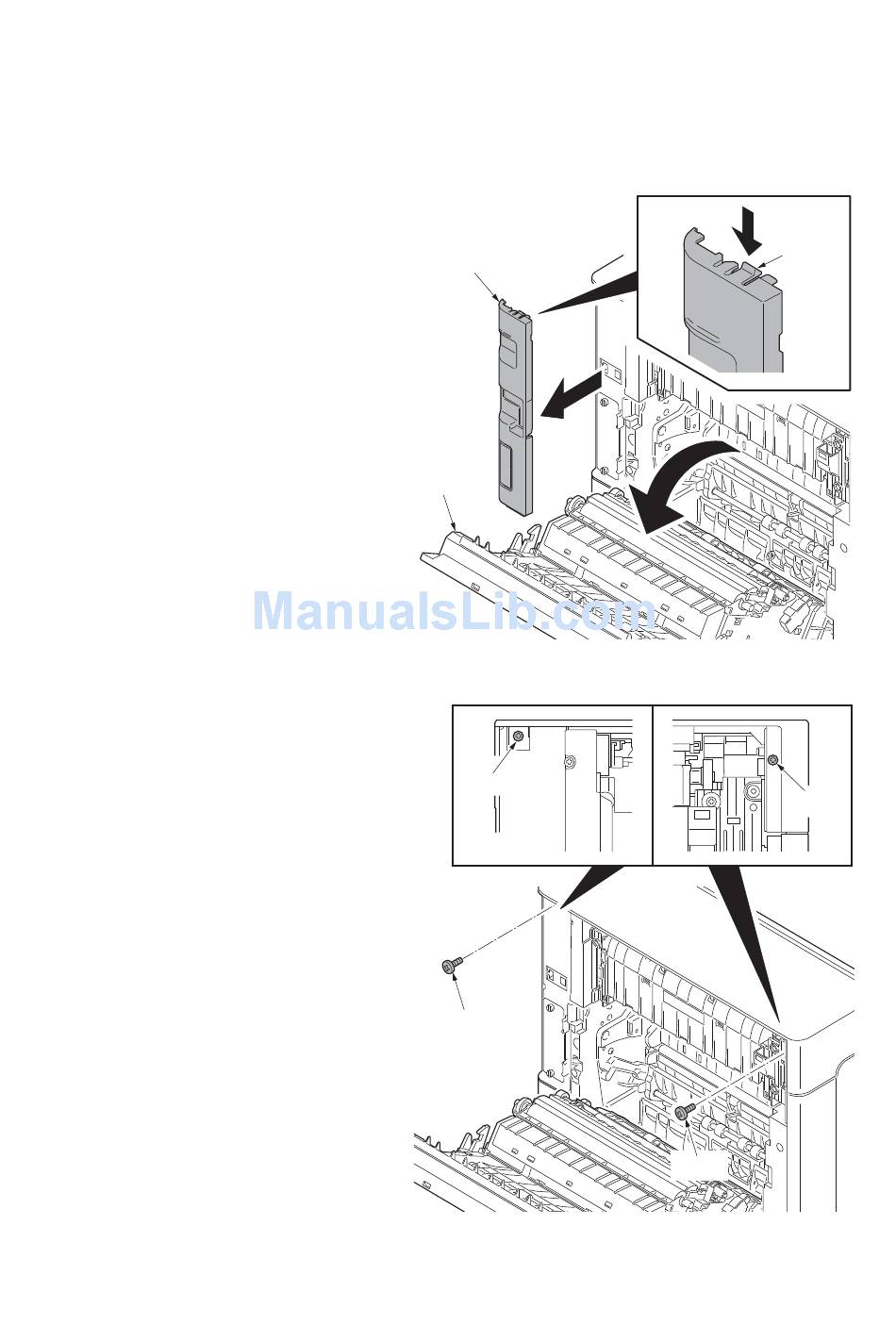

(1) Detaching and refitting the top cover

Procedure
1. Open the paper conveying unit.
2. Release the hook and then remove the
IF cover.
3. Remove two screws.
IF cover
Paper
conveying
unit
Screw
Screw
1-5-3
Figure 1-5-3
Screw
Figure 1-5-4
2KT/2KV
Hook
Screw
