(3) Detaching and refitting the power source inlet
Procedure
1. Remove the power source PWB (see
page 1-5-28).

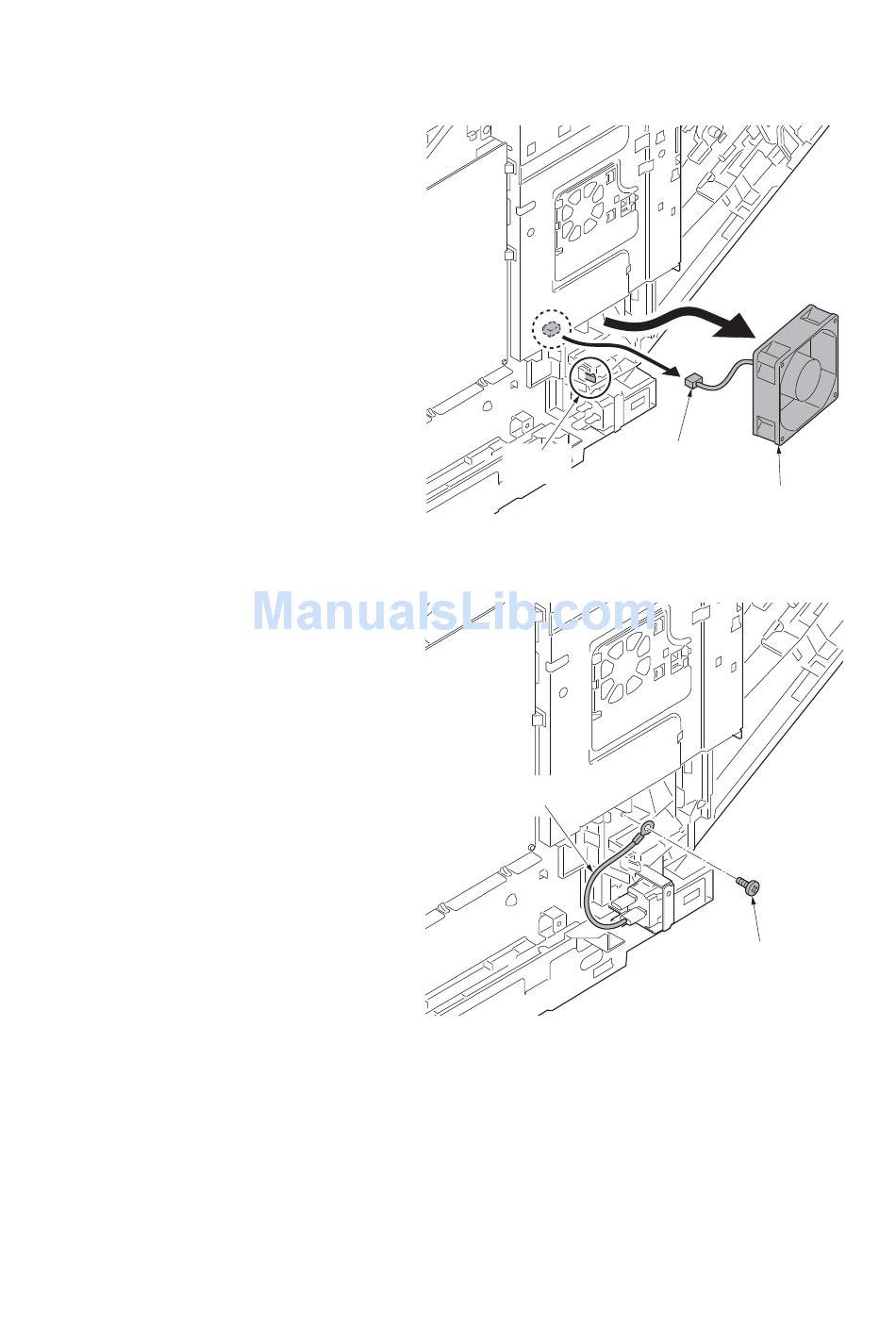

2. Remove the connector and release the
hook and then remove the right fan
motor.
3. Remove the screw of the grounding
wire.
Hook
Figure 1-5-73
Grounding wire
Figure 1-5-74
1-5-49
2KT/2KV
Connector
Right fan motor
Screw
