(4) Detaching and refitting the fuser pressure drive unit
Procedure
1. Remove the fuser unit (see page 1-5-
25).
2. Remove the top cover (see page 1-5-3).
3. Remove the left rear cover and left
cover (see page 1-5-8).
4. Remove connector (YC38) from engine
PWB.
Engine PWB
YC38
Engine PWB

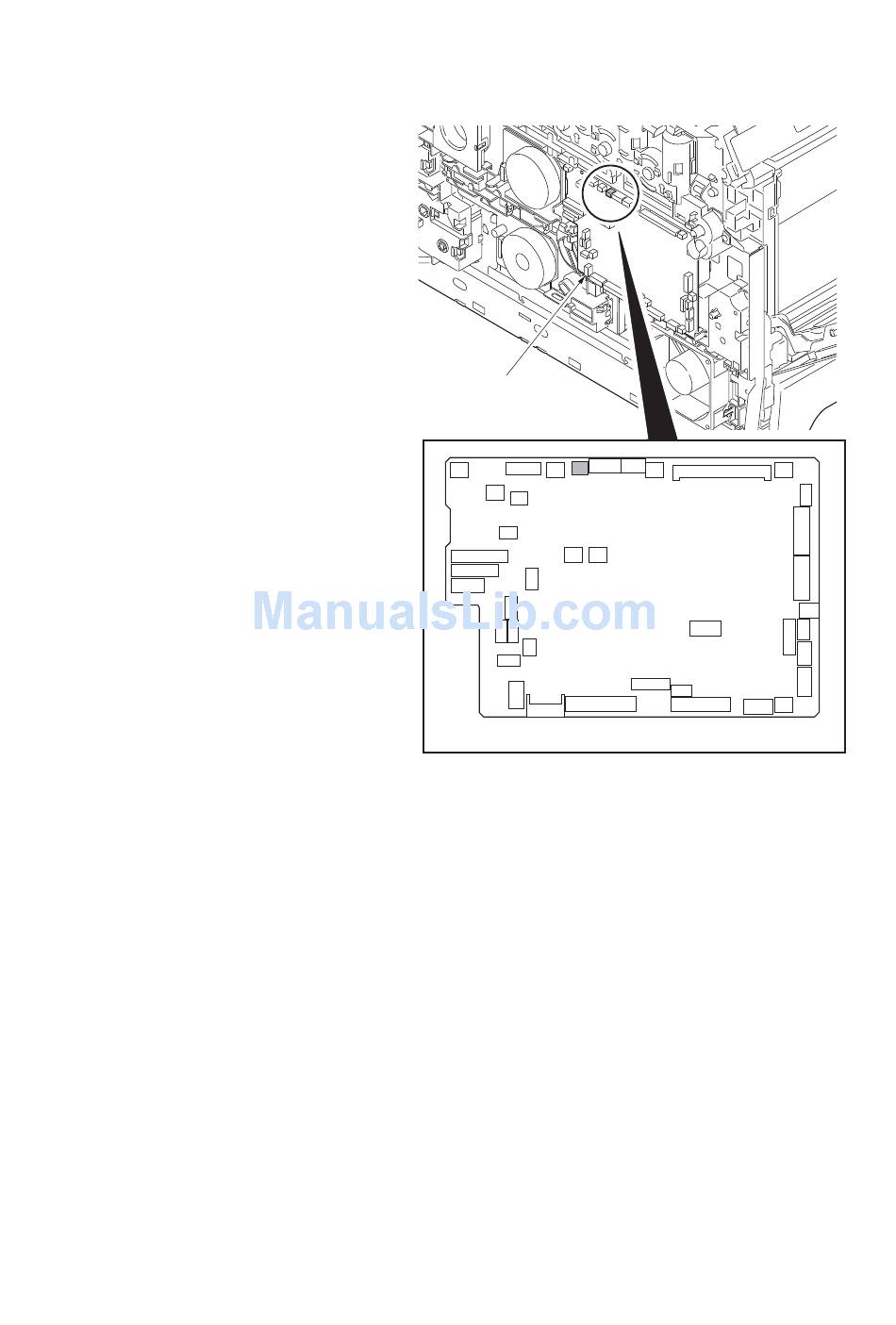

Figure 1-5-59
1-5-39
