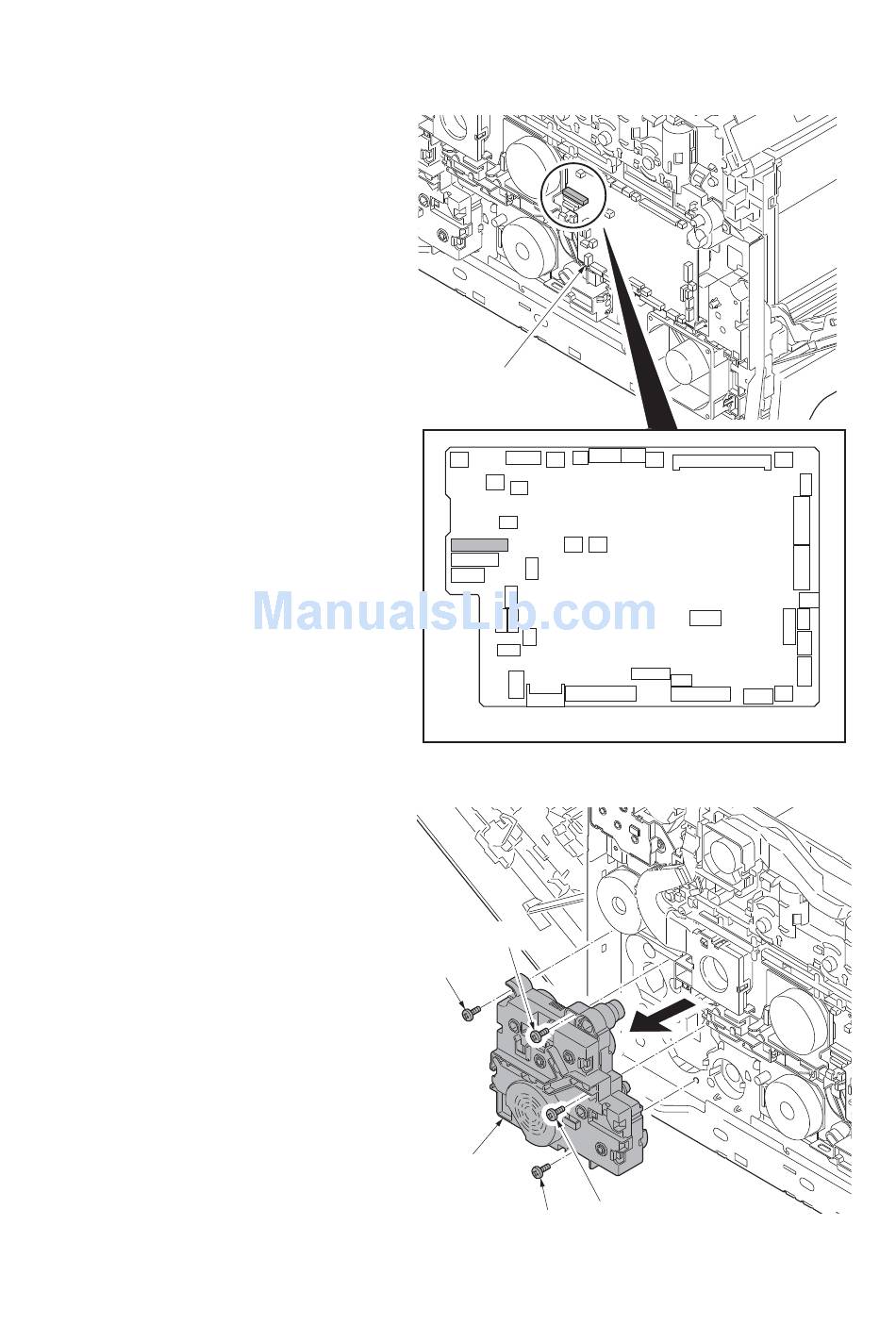

(3) Detaching and refitting the paper feed drive unit

Procedure
1. Remove the top cover (see page 1-5-3).
2. Remove the left rear cover, left cover
and left lower cover (see page 1-5-8).
3. Remove connector (YC3) from engine
PWB.
4. Remove four screws and then remove
the paper feed drive unit.
5. Check or replace the paper feed drive
unit and refit all the removed parts.
Engine PWB
YC3
Engine PWB
Screw
Screw
Paper feed
drive unit
Screw Screw
1-5-38
Figure 1-5-57
Figure 1-5-58
2KT/2KV
