1-5-5 Drum section

(1) Detaching and refitting the drum unit

Procedure
1. Remove the intermediate transfer unit
(see page 1-5-21).
2. Remove drum units (K, M, C, Y).
3. Check or replace the drum unit and refit
all the removed parts.

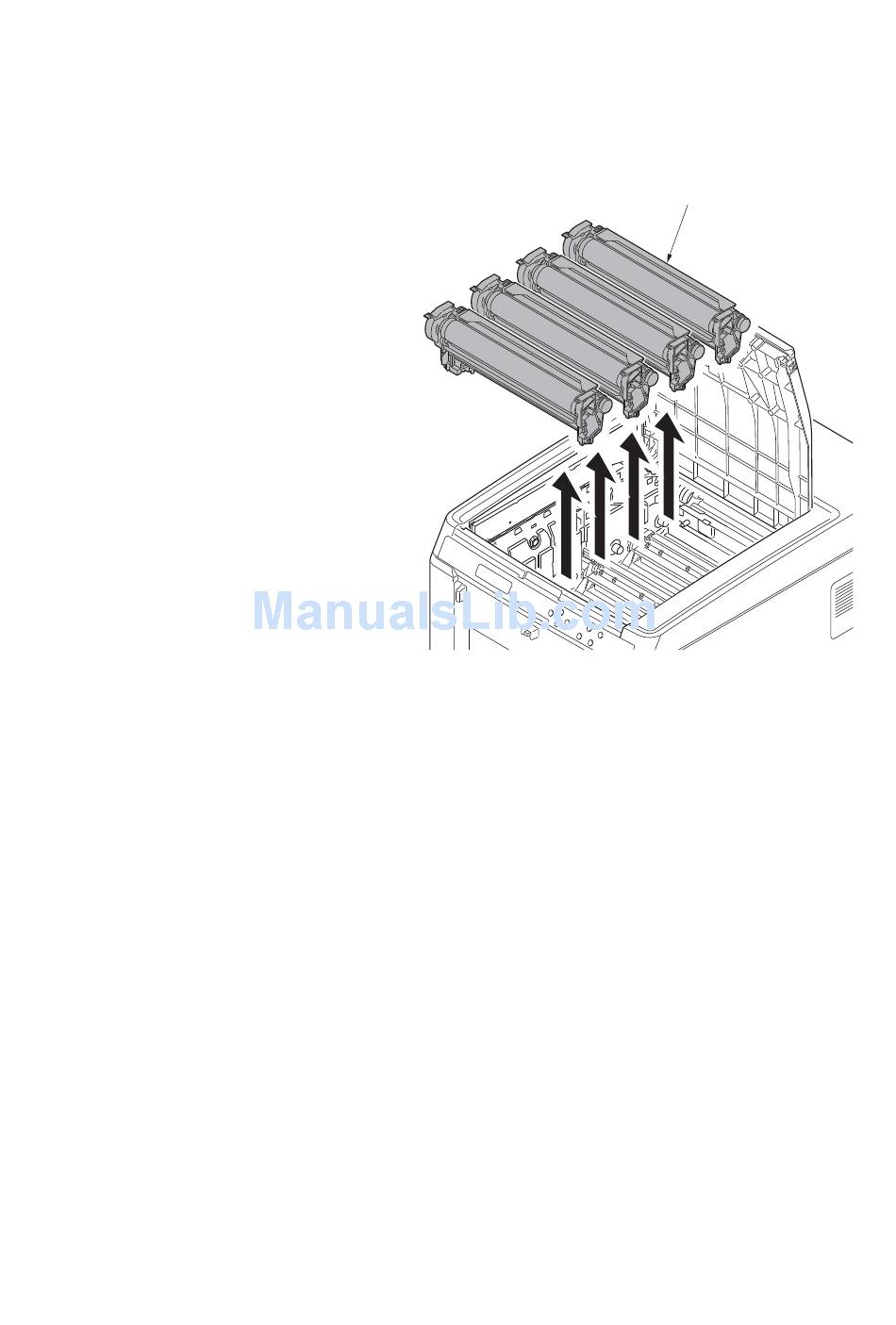

Figure 1-5-28
1-5-20
Drum unit (K,M,C,Y)
2KT/2KV
