(3) Detaching and refitting the left rear cover, left cover and left lower cover

Procedure
1. Remove the top cover (see page 1-5-3).

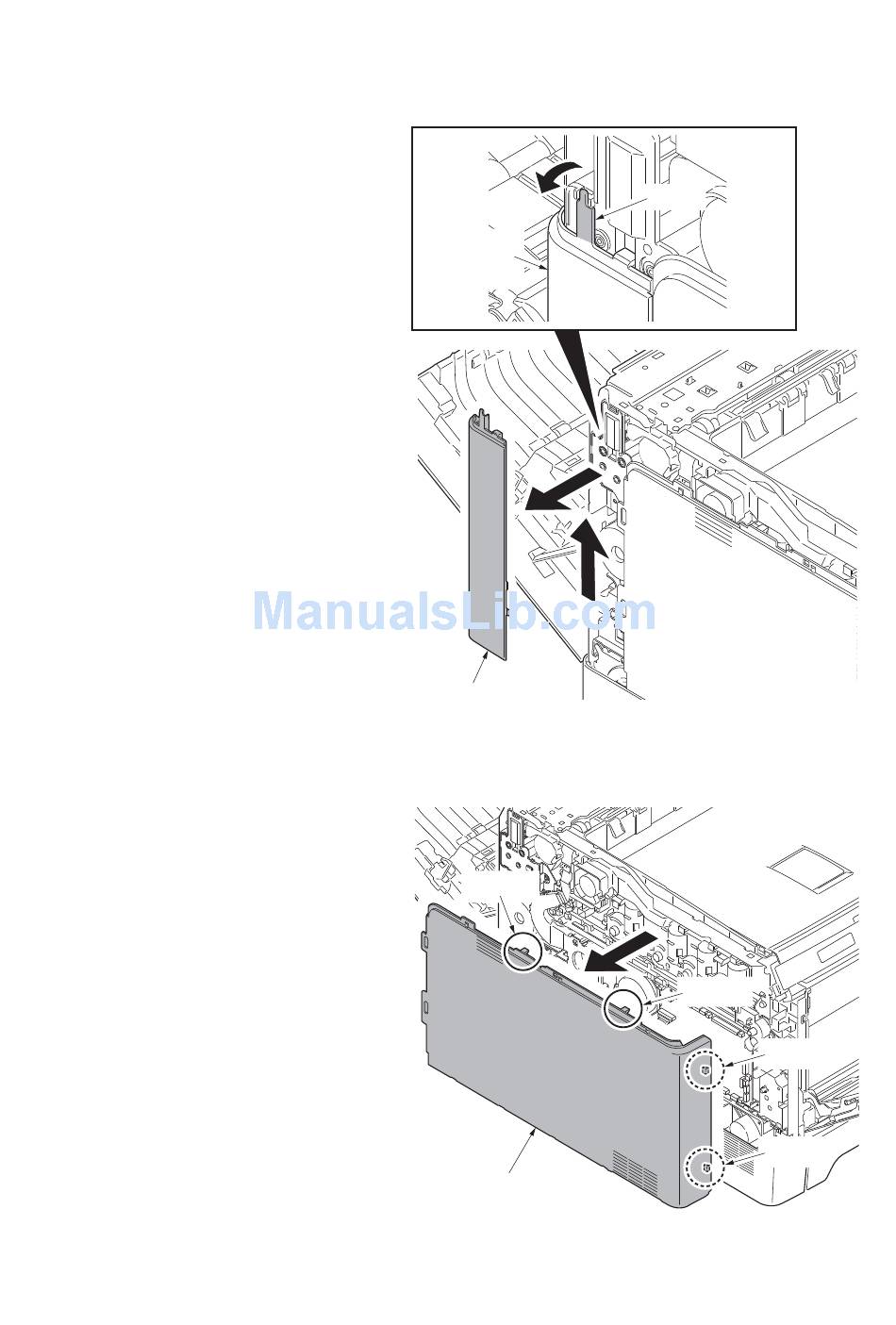

2. Release the hook. Slide the left rear
cover upward and then remove it.
3. Release four hooks (hook A → B) and
then remove the left cover.
Left rear
cover
Left rear cover
Hook B
Left cover
1-5-8
Hook
Figure 1-5-12
Hook B
Figure 1-5-13
2KT/2KV
Hook A
Hook A
