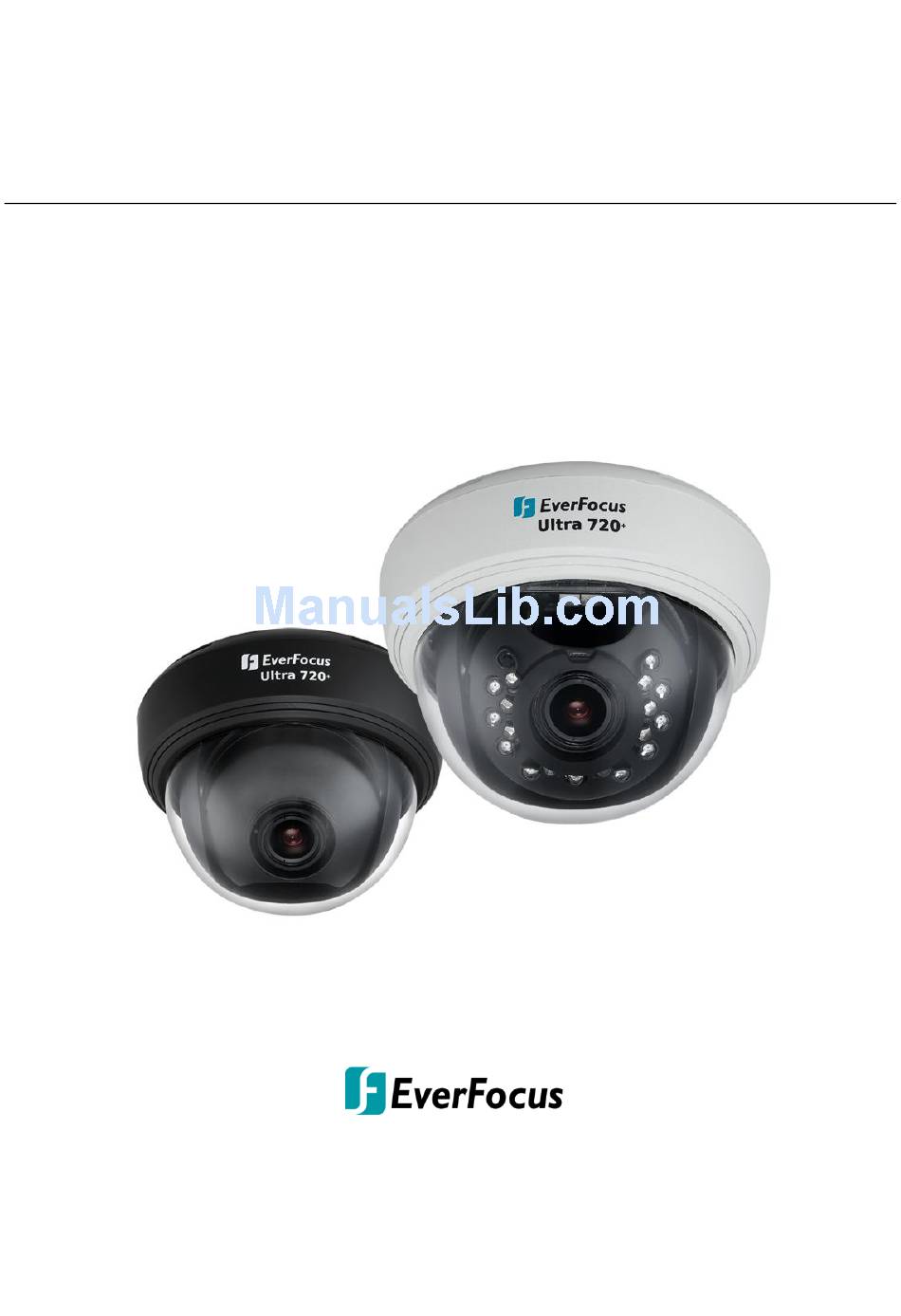

- Page 1 ED710 & ED730 Ultra 720+ Series Day/Night Indoor Dome Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: January, 2014...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. INTRODUCTION ..................5 ..................... 5 ACKING ......................6 EATURES 2. CABLE DESCRIPTION................6 3. INSTALLATION ..................7 ................7 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU ..........13 5. SPECIFICATIONS ................16... -
Page 5: Introduction

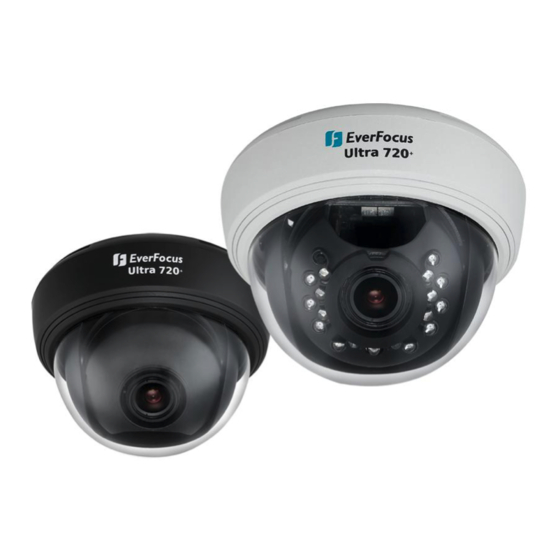

SONY EXview HAD 960H CCD II to produce in excess of 720 horizontal TV lines of resolution from each and Ultra Series 720+ camera we deliver. The EverFocus Ultra Series cameras are combined with a useable native low light sensitivity of 0.05 lux without using digital slow shutter. The cameras truly provides color without compromise: over 720TVL resolution, Digital Wide Dynamic Range for clear color images in the most challenging of bright or unbalanced scene lighting conditions. -
Page 6: Features
ED710/730 Ultra 720+ TVL Dome Camera 1.2 Features Ultra resolution of over 720 horizontal TV lines for astounding image quality Exview HAD CCD II delivers amazing ultra high sensitivity of 0.05 lux – very low light sensitivity without DSS low light boost - Zero Ghosting guaranteed Vari-focal 2.8~12mm DC iris lens to capture the desired field of view... -
Page 7: Installation
ED710/730 Ultra 720+ TVL Dome Camera 3. Installation 3.1 Installation and Adjustment Camera Breakdown... -
Page 8: Important Notice
ED710/730 Ultra 720+ TVL Dome Camera Important Notice Please be noted the camera Base Plate may lose when you take out the camera from the pack. It is because the Base Plate is attached to Camera Body without locking tightly in order to simplify the installation procedure. - Page 9 ED710/730 Ultra 720+ TVL Dome Camera Rotate counter-clockwise to remove the camera cap, press and pull to remove the liner. Remark: Hold the liner with one hand, press and pull to remove the liner (refer to the “arrow” label which marked to the liner) Push the inner click outward and rotate the base plate counter-clockwise, then remove the camera body from the base plate.
- Page 10 ED710/730 Ultra 720+ TVL Dome Camera Screw the base plate to the wall / ceiling using the supplied three screws. Note that if you want to wire the cables through the wall / ceiling, break the middle part of the base plate.
- Page 11 ED710/730 Ultra 720+ TVL Dome Camera Connect the camera to the 12 VDC or 24 VAC power source and a DVR or monitor. Optionally connect the camera to a monitor using the supplied Test Lead for adjusting camera angles, focus, zoom and configuring OSD menu Connect one end of the Test Lead to the camera and the other end to a monitor.
- Page 12 ED710/730 Ultra 720+ TVL Dome Camera To configure the OSD Menu, using the function button. To adjust the Zoom / Focus, using the Zoom / Focus screws. Tighten the zoom / Focus screws using the supplied screwdriver. Put the liner back and secure the camera cover cap back to the camera.
-
Page 13: Configuration In The Osd Menu
ED710/730 Ultra 720+ TVL Dome Camera 4. Configuration in the OSD Menu You can use the function buttons on the rear panel of the camera body to configure camera settings in the OSD menu: Main Sub Menu Sub Menu / Function... - Page 14 ED710/730 Ultra 720+ TVL Dome Camera 0-255 (default=128) Gain 0-255 (default=128) <ED710> 0-255 (default=150) <ED730> Off* Luminance Low, Mid*, High Contrast Low, Mid-low, Mid*, Mid-high, High Off* Detect Sense 0-127 (default=111) Block Display Off*, On, Enable Motion Motion Area Off*, On...
- Page 15 ED710/730 Ultra 720+ TVL Dome Camera Y Level 000-015 (default=003) Y/C* C Level 000-015 (default=003) Off* Camera ID English letters, numbers and 28 symbols Sync. Int. English*, Japanese, German, French, Russian, Portuguese, Spanish Simplified Language Chinese Camera Reset Save all...
-
Page 16: Specifications
ED710/730 Ultra 720+ TVL Dome Camera 5. Specifications ED710 ED730 Pickup Device 1/3” Sony Exview HAD II 960H High Sensitivity Interline CCD Video Format NTSC or PAL Picture Elements 1020 x 508 (NTSC) / 1020 x 596 (PAL) Effective Pixels... - Page 17 ED710/730 Ultra 720+ TVL Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940 FAX: +886 2 2698 2380 FAX: +49 2822 939495 www.everfocus.com.tw...
