Remote Control, cont'd

Using the software

1. To run the software, click Start / Programs /
Extron Electronics / Universal Switcher Control
Pgm.
2. Click on the comm port that is connected to the switcher's
RS-232 port.
3. The Extron Universal Switcher Control Program window
(Figure 4-2) displays the input signal status for each input
(signal present or not present), the selected input, and the
audio gain for the selected input.

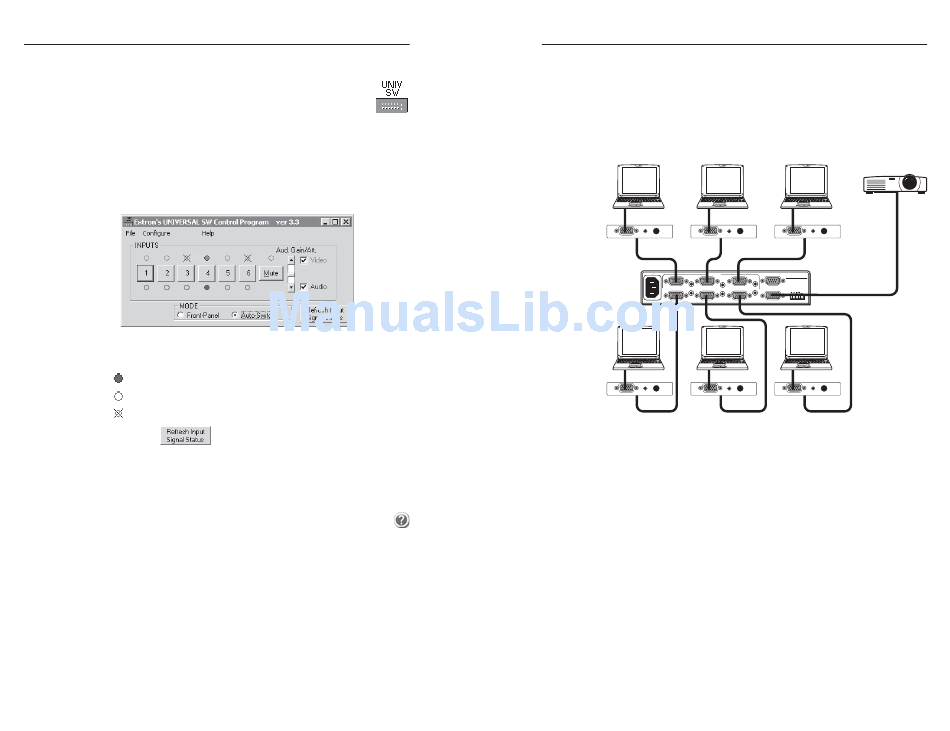

Figure 4-2 — Universal Switcher Control program
window
indicates that the input signal is present and is selected.
indicates that the input signal is present but not selected.
indicates that the input signal is not present.
Click the

Using the help system

For information about program features, you can access the help
program in any of the following ways:
• Click Start / Programs / Extron Electronics /
Universal Switcher Help.
• From within the Windows-based switcher control
program, click on the Help entry on the task bar.
• From within the Windows-based switcher control
program, press the F1 key.
SW VGArs / Ars Series Switchers • Remote Control
4-8
button to refresh the input signal status.

VSW I AAP Remote Control

Each input of an SW VGArs / Ars Series switcher can be
connected to a VSW I AAP passive interface. The VSW I AAP
features a computer video input and pass-through, an
unbalanced stereo input and pass-through, and an input select
(Show Me) button. Pressing the VSW I AAP's Show Me button
causes the switcher to select the input connected via that AAP.
SHOW ME
AUDIO AUDIO
COMPUTER VSW I AAP COMPUTER
VSW I VSW I
AAP AAP
100-240V 0.2A INPUTS
1 3
2 4
50-60Hz
SW6 VGA Ars
SHOW ME
AUDIO AUDIO
VSW I AAP
COMPUTER COMPUTER
VSW I VSW I
AAP AAP
Figure 4-3 — VSW I AAP application

Contact Closure Remote Control

The Remote connector also provides a way to select an input to
the switcher using a remote contact closure device. Contact
closure control uses pins on the Remote connector that are not
used by the RS-232 interface. The contact closure pin
assignments are shown in figure 4-1 on page 4-2.
To select a different input number using a contact closure
device, momentarily short the pin for the desired input number
to logic ground (pin 5). To force one of the inputs to be always
selected, leave the short to logic ground in place. The short
overrides front panel input selections.
SW VGArs / Ars Series Switchers • Remote Control
Projector
SHOW ME SHOW ME
AUDIO
VSW I AAP COMPUTER VSW I AAP
VSW I
AAP
REMOTE
SW6 VGA Ars SW6 VGA Ars
5
OUTPUT
OUTPUT
6 L R
SHOW ME SHOW ME
AUDIO
VSW I AAP VSW I AAP
COMPUTER
VSW I
AAP
4-9
