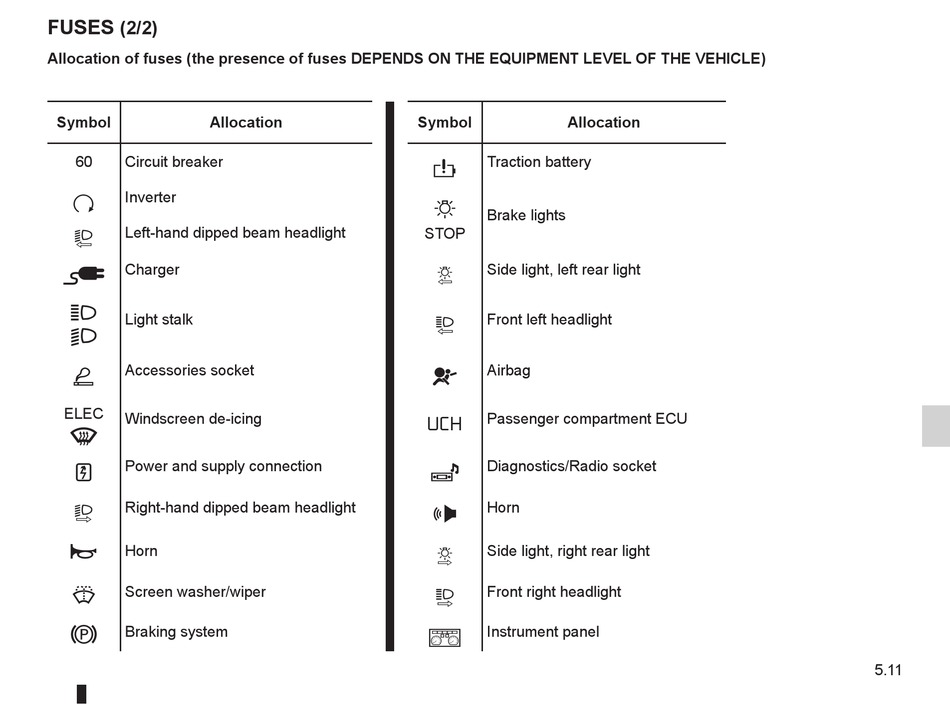

FUses
(2/2)
Allocation of fuses (the presence of fuses dePeNds oN The eQUIPMeNT leVel oF The VehICle)
symbol Allocation
60 Circuit breaker
Ṟ
Inverter
L
Left-hand dipped beam headlight

Charger
Á
Light stalk
K
Æ
Accessories socket
ELEC
Windscreen de-icing
d
ṡ
Power and supply connection
T
Right-hand dipped beam headlight
Ì
Horn
H
Screen washer/wiper

Braking system
symbol Allocation
Ṍ
Traction battery
U
Brake lights
STOP
Y
Side light, left rear light
Q
Front left headlight
Å
Airbag
ô
Passenger compartment ECU
î
Diagnostics/Radio socket
Ṡ
Horn
V
Side light, right rear light
P
Front right headlight
a
Instrument panel
5.11
