Summary of Contents for Monitor Audio SOUNDFRAME

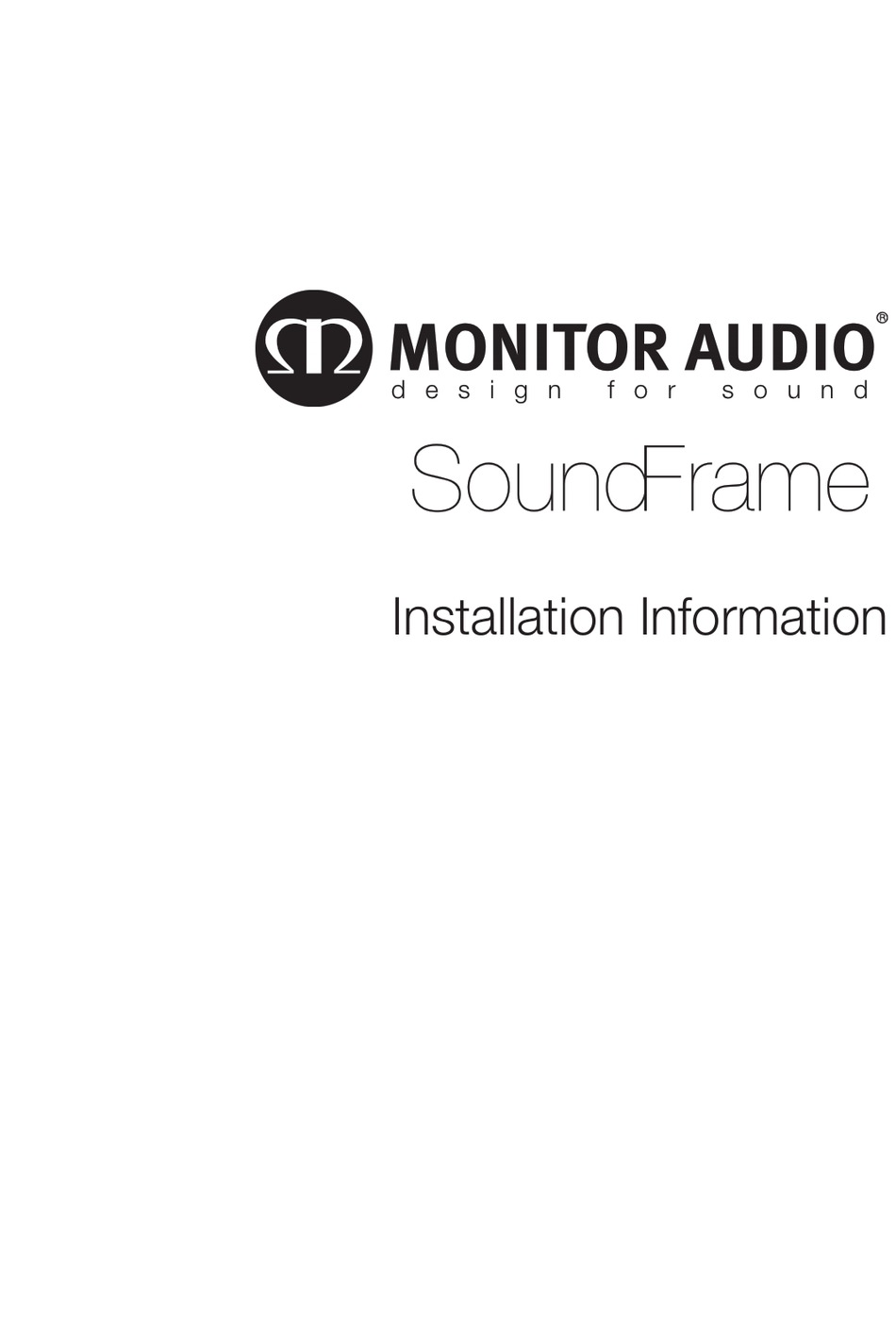

- Page 1 Soun rame serie Soun rame Soun rame Installation Information Soun rame Soun rame...
-
Page 3: In The Box
In the box. Grille Badge Frame Peg Frame Cam Template Accessories Frame in Separate Carton Grille in Separate Carton SoundFrame Cabinet 1, 2 or 3... - Page 4 Fix the pegs to the frame. Cam Lock.
- Page 5 Attach frame to cabinet. Mark wall using template before drilling & attaching fixings. Soundframe 2 Template Rev2.pdf 1 20/05/2010 12:18:31 NOTE: Dimensions are to the edge of the frame, not cabinet. Landscape fixing points Portrait fixing points t e m p l a t e...
- Page 6 Feed wires through back and hang cabinet. Fit badge to grille and then fit grille.
- Page 7 Grille removal and Installation guide Grille détachable et guide d’installation Installationshandbuch Guía de reemplazo e instalación de rejillas...
-
Page 9: Specifications

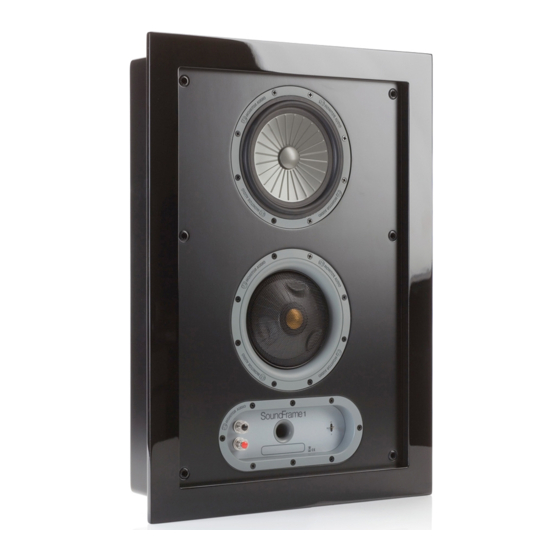

Specifications: Specifications Sound Frame 1 Frequency Response 55Hz – 35kHz Sensitivity 86dB System Configuration 3 way Driver Compliment: 1 x 6.5” C-CAM mid/bass driver with ® II technology. ® 1 x 4” IDC mid-range driver with dual ® concentric 25mm C-CAM gold dome ®... - Page 10 Specifications Sound Frame 2 Frequency Response 55Hz – 35kHz Sensitivity 86dB System Configuration 3 way Driver Compliment: 1 x 6.5” C-CAM mid/bass driver with ® II technology. ® 1 x 4” IDC mid-range driver with dual ® concentric 25mm C-CAM gold dome ®...
- Page 11 Specifications Sound Frame 3 Frequency Response 75Hz – 35kHz Sensitivity 85dB System Configuration 2 way Driver Compliment: 1 x 4” MMP II mid/bass driver with. ® 1 x 25mm C-CAM gold dome, pivoting ® tweeter. Nominal Impedance 8 Ohms Maximum SPL (each @1m) 102.5 dBA Recommended Amplifier 25-50...
- Page 12 Monitor Audio Ltd 24 Brook Road, Rayleigh Essex, SS6 7XJ England Tel: + 44 (0)1268 740580 Fax: + 44 (0)1268 740589 Email: info@monitoraudio.co.uk monitoraudio.com Designed in the United Kingdom Version 2.
