Connections to Detectors

2. Connections to Detectors

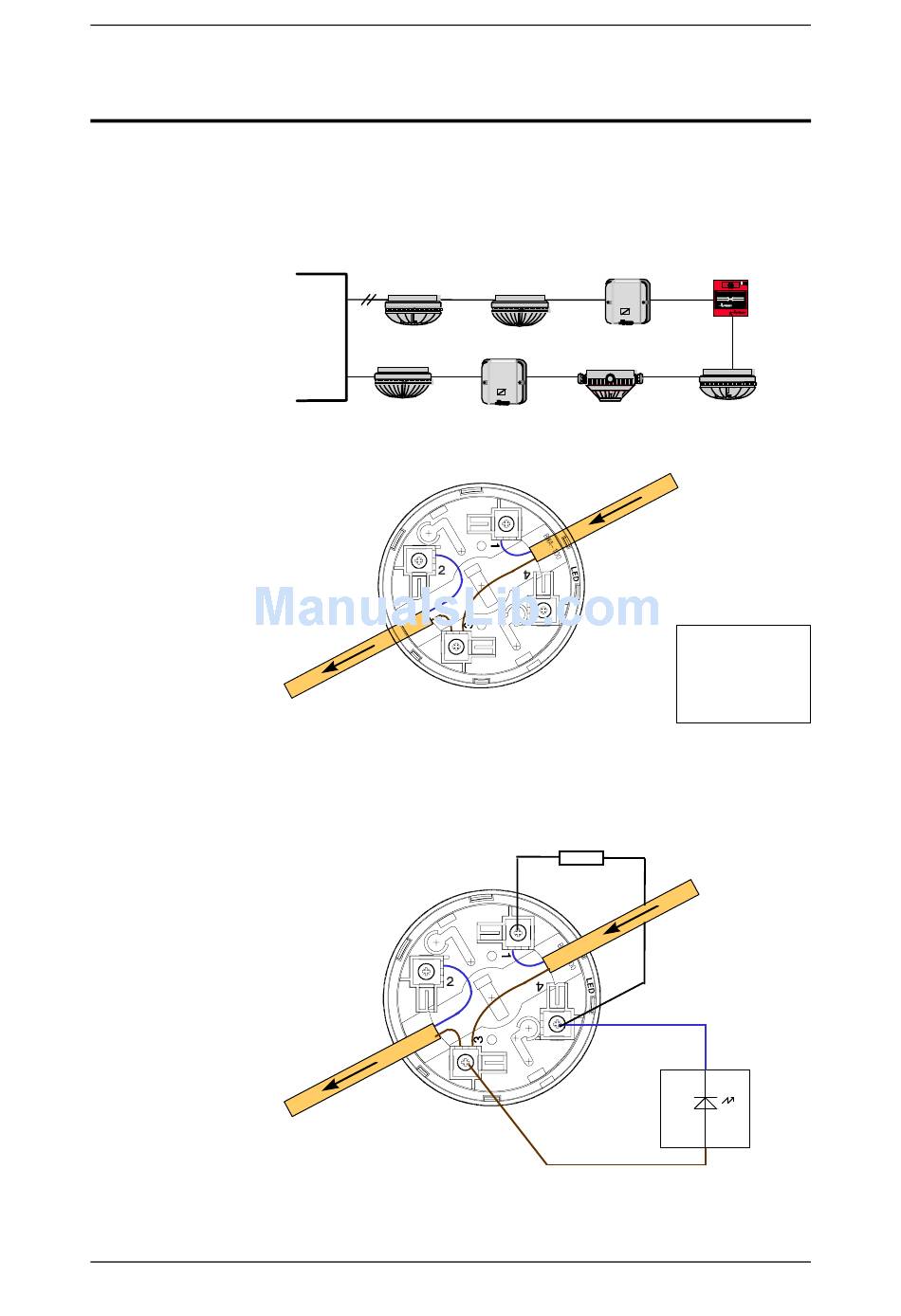

2.1 Connecting Detectors

2.2 LED Connection on Detector

Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Detector
Loop
Driver
Module
Output
Output
Autronica Fire and Security AS
Page 4
I/O Unit
BN- 320
BRAN NALAR M
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
BN- 320
B RANNALARM
Tilpa sningsenhet
FIR E ALARM
Interface uni t
Nr.
No.
Input
Varistor SIOV-S07K25
Input
BU-46
Manual Call Point
K N U S G LA S SE T
TRYK K HER
PRE SS H ER E
B R E A K G LA S S
1 - IN
2 - OUT
3 + COMMON
4 - LED
-
LED
+
