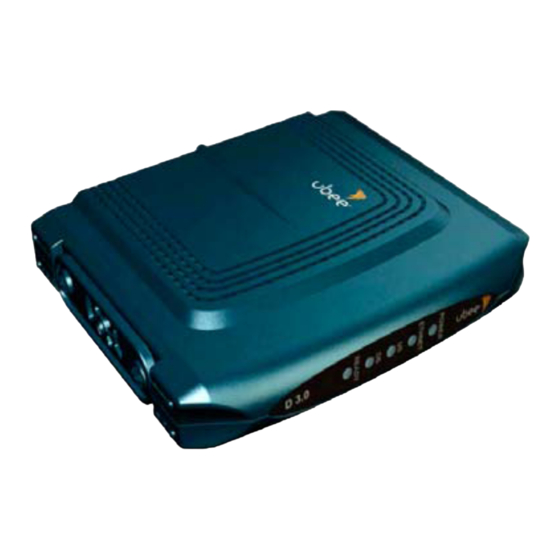

- Page 1 ® Ubee Interactive DOCSIS 3.0 Cable Modem Model: U10C035 User Guide Version 10_30_10...
-
Page 2: Table Of Contents
ONNECTORS 2.6 C ............................9 ABLE ODEM 2.6.1 U10C035 with ORANGE and GREEN LEDs: ....................9 2.6.2 U10C035 with BLUE and GREEN LEDs: ....................10 3 WEB-BASED DEVICE MANAGEMENT UTILITY ..................12 3.1 PC R ............................. -
Page 3: Safety Guidelines
Ubee U10CO35 Cable Modem User Guide, v10_30_10 1 Safety Guidelines The following information provides safety guidelines for anyone installing and maintaining the U10C035 cable modem. Read all safety instructions in this guide before attempting to unpack, install, operate, or connect power to this product. -
Page 4: Introduction
Ubee U10CO35 Cable Modem User Guide, v10_30_10 2 Introduction Welcome to the Ubee family of data networking products. This document provides instructions on how to connect and use the Ubee U10C035 Cable Modem. The U10C035 Cable Modem provides high-speed access to the Internet using an active Internet connection provided by your cable service provider. - Page 5 Ubee U10CO35 Cable Modem User Guide, v10_30_10 Upstream • Frequency Range: 5 MHz ~ 42 MHz • Modulation: QPSK, 8, 16, 32, 64 QAM, 128 QAM (S-CDMA only) • Maximum Data Rate 4 US: 122 Mbps (108 Mbps) RF Output Power •...
-
Page 6: Package Contents
Ubee U10CO35 Cable Modem User Guide, v10_30_10 2.3 Package Contents The U10C035 product package contains the following: U10C035 Front View U10C035 Rear View U10C035 DOCSIS 3.0 Cable Modem Firmware – 3.10.1203, Firmware approved by Comcast QA DOCSIS 1.x/2.0/3.0 Certified Straight-through Ethernet Cable, RJ45... -
Page 7: Minimum Requirements
Ubee U10CO35 Cable Modem User Guide, v10_30_10 2.4 Minimum Requirements The following are the system requirements for computers connecting to the cable modem and for using the web interface of the cable modem. PC – Minimum System Requirements Processor 300Mhz... -
Page 8: Back Panel Connectors
Ubee U10CO35 Cable Modem User Guide, v10_30_10 2.5 Back Panel Connectors This is where you plug in the included power adapter. Remember to use only the Power power adapter that came with the cable modem. This is where you plug in the included Ethernet cable. The other end connects to the 1000BaseT Ethernet port on the PC or NIC. -
Page 9: Cable Modem Leds
Ubee U10CO35 Cable Modem User Guide, v10_30_10 2.6 Cable Modem LEDs This section describes the functions of the cable modem’s LEDs and connectors. Important: U10C035 cable modems manufactured after January 2010 use the blue green LED color combination. Cable modems in... -
Page 10: U10C035 With Blue And Green Leds
Ubee U10CO35 Cable Modem User Guide, v10_30_10 depends Cable interface traffic (network access Ethernet enabled) status depends on provisioning state Ethernet connected depends on provisioning state blink Ethernet traffic GREEN Ethernet LED indicates 10/100/1000 Mbps speed has been negotiated. •... - Page 11 Ubee U10CO35 Cable Modem User Guide, v10_30_10 Network Access Disabled depends Cable interface traffic (network access Ethernet enabled) status Ethernet connected depends on provisioning state depends on provisioning state blink Ethernet traffic GREEN Ethernet LED indicates 10/100/1000Mbps speed has been negotiated.
-
Page 12: Web-Based Device Management Utility
Ubee U10CO35 Cable Modem User Guide, v10_30_10 3 Web-Based Device Management Utility Use this chapter to access and use the U10CO35 web management utility. 3.1 PC Requirements Be certain that your PC adheres to the following requirements. Refer to page 7 for more information on system... -
Page 13: Access The Web Interface
Ubee U10CO35 Cable Modem User Guide, v10_30_10 3.3 Access the Web Interface Use the following procedure to access the web interface. 1. From the computer, launch an internet browser. 2. In the internet browser, enter the following address and press <Enter/Return>: http://192.168.100.1... -
Page 14: Cable Modem Information
Ubee U10CO35 Cable Modem User Guide, v10_30_10 5. Click OK after entering the login. Note: The Web Interface page displays the message“401Unauthorized” when the username or password is incorrect. 6. The following navigation screen displays after logging in to the web interface. All menu functions for the web interface are explained in the following sections. -
Page 15: Status
Ubee U10CO35 Cable Modem User Guide, v10_30_10 Item Description Indicates that the cable modem is Cable Modem Docsis1.0/Docsis1.1/Docsis2.0/Docsis3.0 compliant. MAC Address Displays the MAC address of cable modem. Displays the serial number of cable modem (usually the Serial Number MAC address without “:” between octets). -
Page 16: Downstream
Ubee U10CO35 Cable Modem User Guide, v10_30_10 current provisioning state. Displays the current link status of the Ethernet interface. The Status field displays Up/Down to indicate if there are Ethernet Link Status devices (for example, PCs) connected to the Ethernet interface. -
Page 17: Upstream
Ubee U10CO35 Cable Modem User Guide, v10_30_10 Displays the current locked downstream received power Power Level (dBmV) (dBmV). Displays the current locked downstream Modulation Error RxMER (dB) Rate (MER). This field displays R-S codewords received on this channel Correctable Codewords with correctable errors. -
Page 18: Upstream Burst
Ubee U10CO35 Cable Modem User Guide, v10_30_10 Displays the current locked upstream modulation type Modulation (QPSK/ 8QAM /16QAM/ 32QAM/64QAM/128QAM/256QAM). Symbol Rate (Ksym/sec) Displays the current locked upstream symbol rate. Mini-Slot Size Displays the current locked upstream mini-slot. Power Level (dBmV) Displays the current locked upstream transmit power. - Page 19 Ubee U10CO35 Cable Modem User Guide, v10_30_10 Item Description transmission of specific traffic types (maintenance, short packets, long packets, or unsolicited grants, such as those for voice traffic). Differential Encoding Displays the current differential encoding state (ON/OFF). Preamble Length Displays the current preamble length, 0-1536 (bits) used for synchronization.
-
Page 20: Event Log
Ubee U10CO35 Cable Modem User Guide, v10_30_10 3.9 Event Log Use the following procedure to review the event log generated by the cable modem. The event log captures all key behavioral activity of the cable modem. 1. Access the web interface. Refer to page 13 for instructions if required. -
Page 21: Tool Page
Ubee U10CO35 Cable Modem User Guide, v10_30_10 4 Tool Page The Tool options of the web interface allow you to reset/power cycle the cable modem or perform a factory default. 1. Access the web interface. Refer to page 13 for instructions if required. -
Page 22: Reset Modem
Ubee U10CO35 Cable Modem User Guide, v10_30_10 4.2 Reset Modem This option allows you to reset the cable modem just as you would by power-cycling or performing an SNMP reset of the device. This reset does not perform a factory default. Original primary downstream information is retained so registration time is faster than the Reset Defaults option.
