Pro-Form Hybrid Trainer PFEL03812.2 User Manual page 9

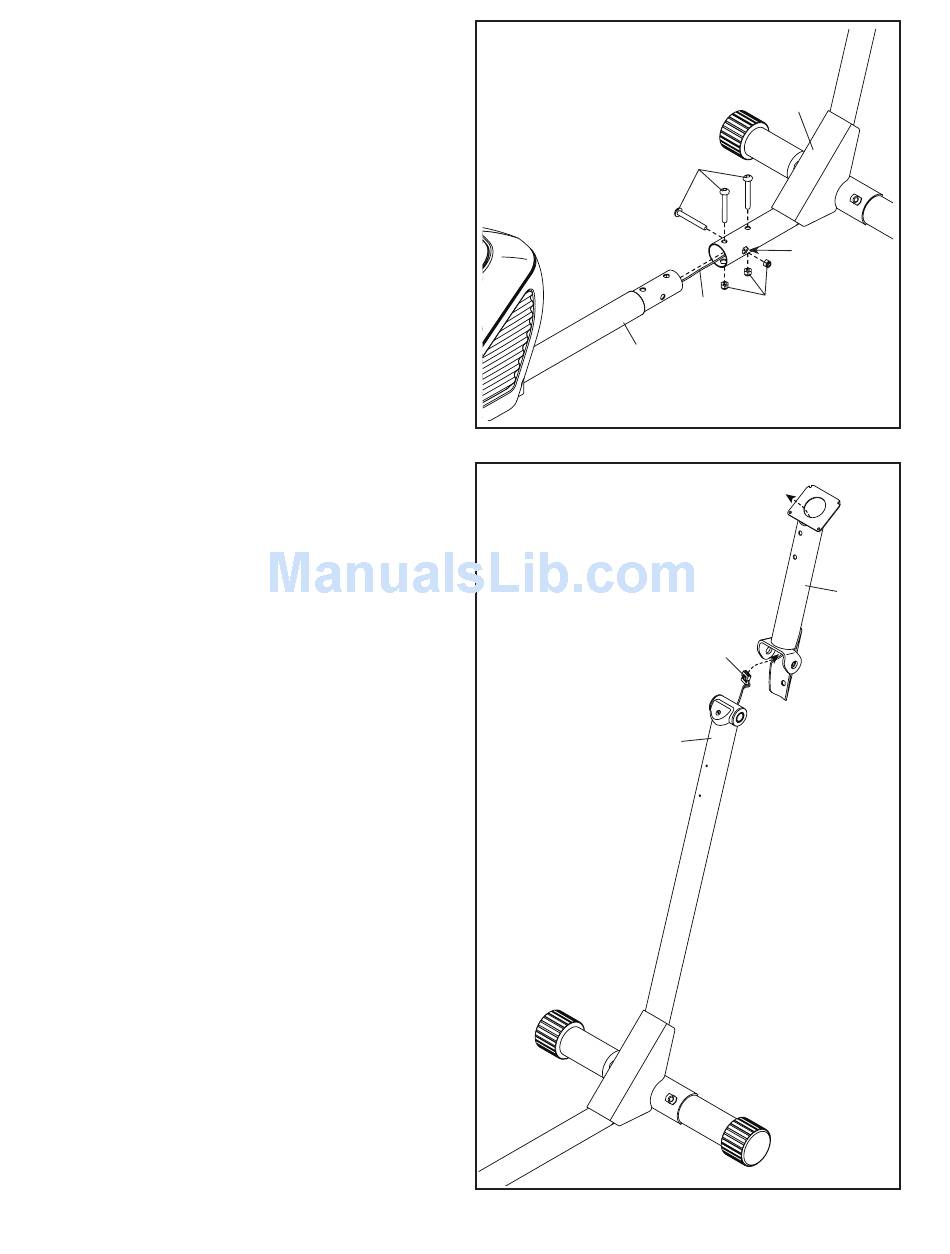

5. Tip: Avoid pinching the Main Wire Harness
(45). Slide the Front Frame (23) onto the Rear
Frame (1).
Attach the Front Frame (23) with three M10 x
60mm Bolts (61) and three M10 Locknuts (48);
make sure that the Locknuts are in the hex-
agonal holes. Do not tighten the Bolts yet.
See steps 2 and 3. Make sure that the ends of
the Rear Stabilizer (6) and the Front Stabilizer
(2) are touching the floor.
Tighten the three M10 x 60mm Bolts (61).
6. Hold the Console Post (73) near the Front Frame
(23) as shown. Insert the Main Wire Harness
(45) upward through the Console Post.
