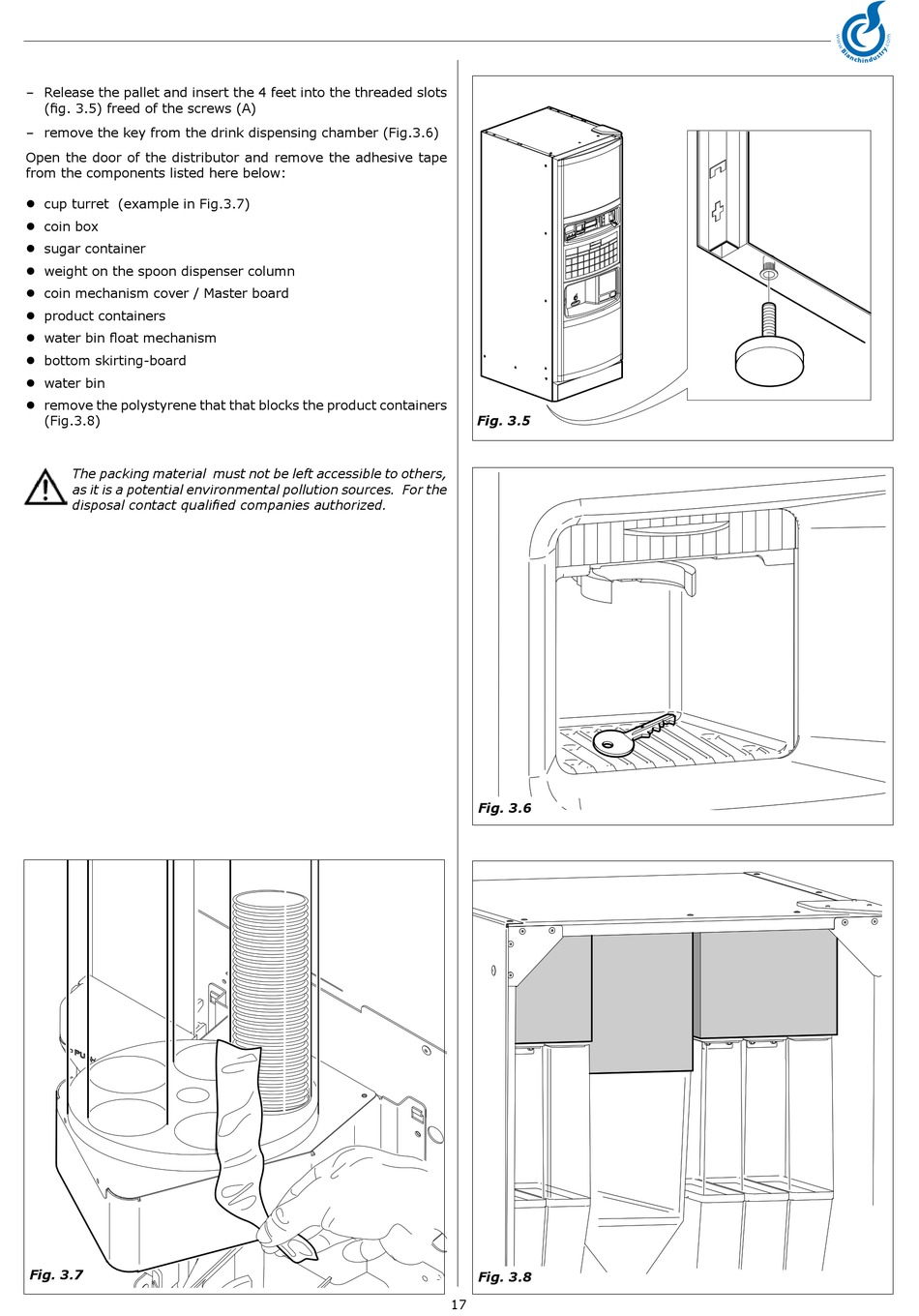

BIANCHI VENDING LEI700 Use And Maintenance Manual page 17

– Release the pallet and insert the 4 feet into the threaded slots
(fig. 3.5) freed of the screws (A)
– remove the key from the drink dispensing chamber (Fig.3.6)
Open the door of the distributor and remove the adhesive tape
from the components listed here below:
 cup turret (example in Fig.3.7)
 coin box
 sugar container
 weight on the spoon dispenser column
 coin mechanism cover / Master board
 product containers
 water bin float mechanism
 bottom skirting-board
 water bin
 remove the polystyrene that that blocks the product containers
(Fig.3.8)
The packing material must not be left accessible to others,
as it is a potential environmental pollution sources. For the
disposal contact qualified companies authorized.
Fig. 3.7
Fig. 3.5
Fig. 3.6
Fig. 3.8
