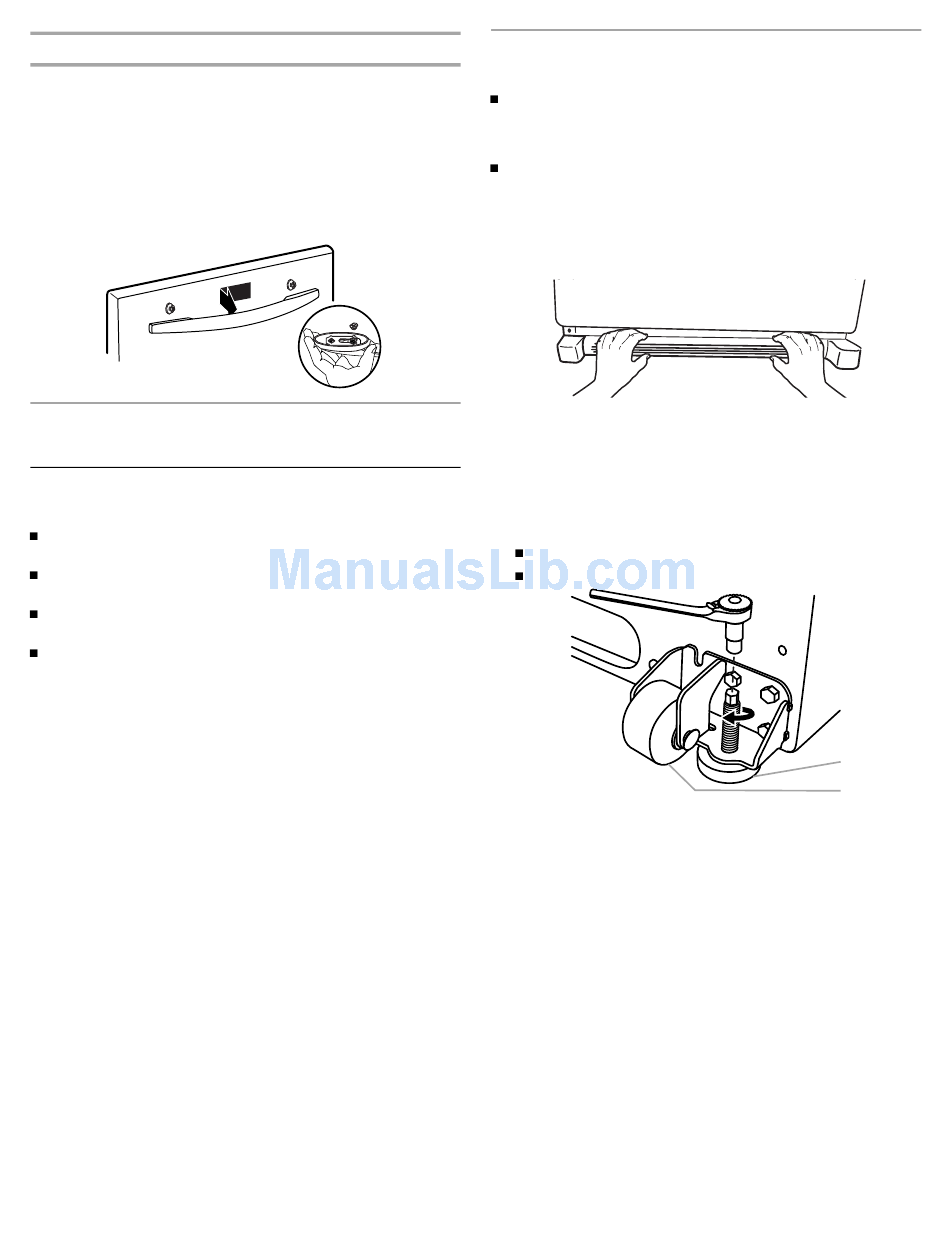

Freezer Drawer Handle
To remove the handle:
1. Slide the handle to the left to disengage the slots in the
mounting clip from the drawer studs, and pull it off of the
drawer.
To replace the handle:
1. Position the handle so that the large holes in the mounting
clips are aligned with the door studs.
2. Rotate the handle so that the mounting clips are flat against
the drawer and slide the handle toward the right to engage.

Remove and Replace Doors and Hinges

IMPORTANT: Contact a qualified engineer to perform this task.

Connect the Water Supply

IMPORTANT: Contact a qualified engineer to perform this task.
Follow local water and electrical company connection
regulations.
Complete water supply connection before electrical supply
connections.
Use the pipe supplied with the new appliance; do not reuse
that of the previous appliance.
All appliances equipped with an automatic ice maker and
water dispenser must be connected to a water supply that
delivers only drinking water (with mains water pressure of
between 0.17 and 0.81 Mpa [1.7 and 8.1 bar]). Automatic ice
makers and/or water dispensers not directly connected to the
water supply must be filled with drinking water only.

Adjust the Doors

IMPORTANT:
Your refrigerator has two adjustable, front leveling screws –
one on each side of the refrigerator base. If your refrigerator
seems unsteady or you want the door to close easier, use the
instructions below.
Before moving the refrigerator, raise the leveling screws so the
front rollers are touching the floor.
1. Remove the base grille. Grasp the grille firmly and pull it
toward you.
NOTE: Depending on your model, you may need to remove
two screws before removing the base grille.
2. Raise or lower the cabinet.
Using a ¹⁄₄" hex driver, turn the leveling screw on each side to
raise or lower that side of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws. This
makes it easier to turn the screws. It may take several turns of
the leveling screw to adjust the tilt of the refrigerator.
To raise, turn the leveling screw clockwise.
To lower, turn the leveling screw counterclockwise.
A. Leveling screw
3. Open the door again to make sure that it closes as easily as
you like. If not, tilt the refrigerator slightly more to the rear by
turning both leveling screws clockwise. It may take several
more turns, and you should turn both screws the same
amount.
4. Replace the base grille.
¹⁄₄"
A
B
