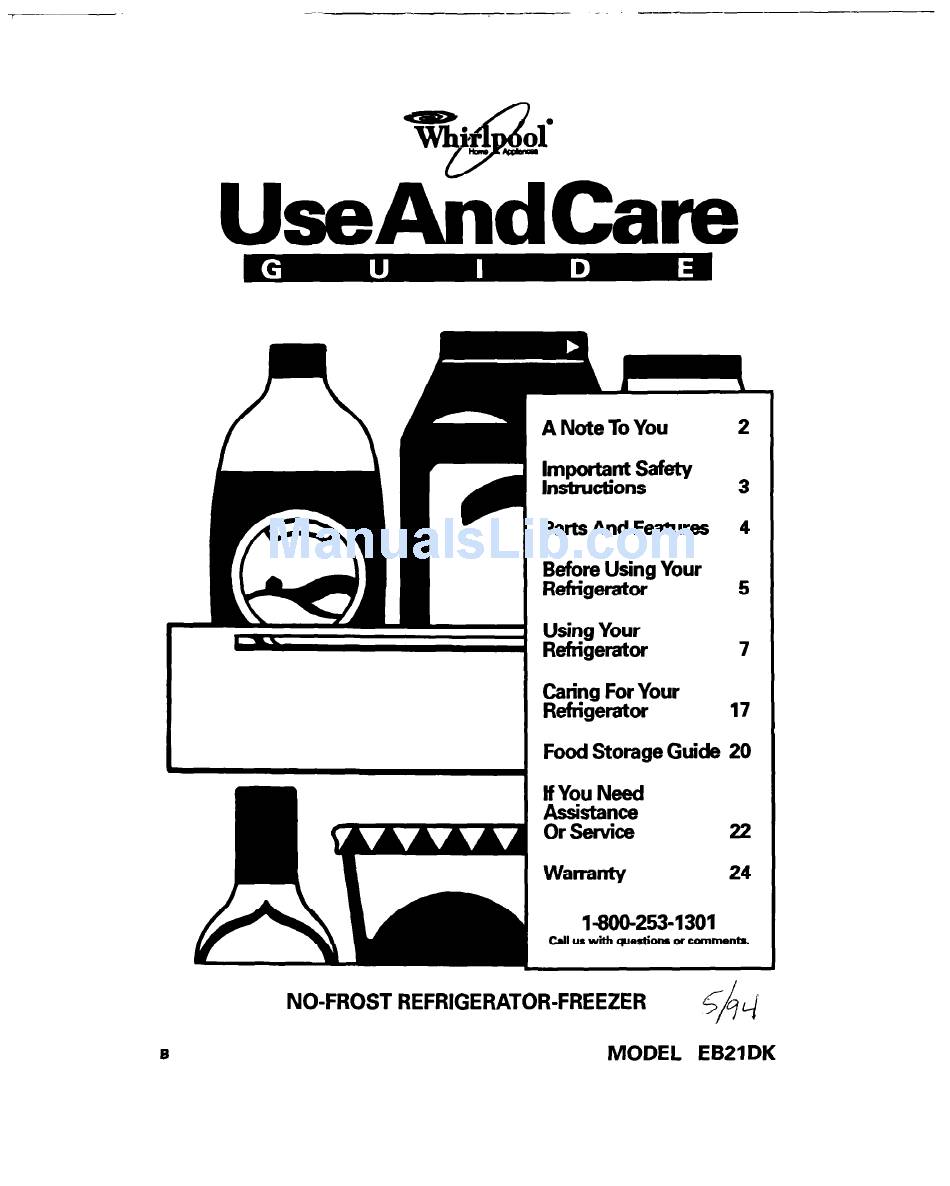

Whirlpool B2lDK Use And Care Manual

Whirlpool non-frost-refrigerator-freezer use and care guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A Note To You
2
Important Safety
Instructions
3
Parts
And Features
4
Before Using Your
Refrigerator
5
Using Your
Refrigerator
7
Ci71$;eFspr
17
Food Storage Guide 20
If Yqu Need
es:
22
Warranty
24
1-800-253-1301
Cdl us w'kh questhns of comments.
NO-FROST REFRIGERATOR-FREEZER
MODEL
EB2lDK

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool B2lDK

Summary of Contents for Whirlpool B2lDK

  • Page 1 NO-FROST REFRIGERATOR-FREEZER A Note To You Important Safety Instructions And Features Parts Before Using Your Refrigerator Using Your Refrigerator Ci71$;eFspr Food Storage Guide 20 If Yqu Need Warranty 1-800-253-1301 Cdl us w’kh questhns of comments. MODEL EB2lDK...
  • Page 2 A Note To You Thank you for buying a WhirlpooP You have purchased a quality, worMclass went into its manufacturing. To ensure that you enjoy many years of trouble-free we developed this Use and Care Guide. It is full of valuable infonnation and maintain your appliance properfy plete and mail the Ownership Registration Card provided with your appliance.
  • Page 3 Important Safety To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions: Read all instructions before using the refrigerator. *Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still danger- ous .
  • Page 4 Parts And Features captioned illustrations This section contains with where all parts and features are located and what they look like. Control Light panel Crisper > cover rollerr Y (behind base grille) Control panel Refrigerator control of your appliance. Use them to become familiar Utility Butter compartment...
  • Page 5 Before Using Your Refrigerator In This Section Cleaning it ......... . . 5 Plugging it in .

  • Page 6: Changing The Control Settings

    Installing it properly 1. Allow I% inch (1.25 cm) space on each side and at the top of the refrigerator for ease of installation. 2. If the hinge side of the refrigerator is to be against a wall, you might want to leave extra space so the door can be opened wider.

  • Page 7: Table Of Contents

    Using Your Refrigerator In This Section Setting the controls ... 7 Changing the control settings.. Adjusting the door bins Adjusting the bin/shelf glides Removing the tail-bottle retainer ..Adjusting the lateral-adjust shelf..lO Adjusting the cantilever refrigerator shelves ... 11 Using the egg bin Removing the meat drawer and cover...
  • Page 8 Exterior moisture control The Exterior Moisture Control operates electric heaters around the door openings. These heaters help keep moisture from forming on the outside of the refrigerator cabinet. Use the OFF setting when humidity is low. Use the ON setting if moisture forms on the outside of the refrigerator cabinet.

  • Page 9: Adjusting The Door Bins

    Adjusting the door bins To remove door bins: Lii bin up. 2. Pull bin straight out. To replace door bins: Slide bin in above desired support button. 2. Push down until it stops. Adjusting the bin/shelf Use the binlshelf glides to secure odd- shaped items or to separate other items.

  • Page 10: Adjusting The Lateral-Adjust Shelf

    Adjusting the lateral-adjust To slide shelf side-to-side: Lift slightly on shelf front. 2. Slide to desired location. 3. Lower shelf front to level position. NOTE: You do not have to remove small items from the shelf before moving it side-to- side.

  • Page 11: Adjusting The Cantilever Refrigerator Shelves

    reinstall shelf: Hold shelf at front and back. 2. Tilt front of shelf up to a 45” angle to track. 3. Insert both rear shelf slides into upper channel of track. 4. Lower front of shelf to a level posit-on. NOTE: Make sure both rear shelf slides are securely in the track before letting go of sheff.

  • Page 12: Removing The Meat Drawer And Cover

    Removing the meat drawer To remove the meat drawer: meat drawer out to the stop. 1. Slide 2. Lii front of meat drawer. the rest of the way. 3. Slide meet drawer Replace in reverse order. To remove the cover: Tilt front of cover up.

  • Page 13: Adjusting The Crisper Humidity Control

    Adjusting the crisper You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.

  • Page 14: Using The Optional Automatic Ice Maker

    Using the optional If you have an automatic ice maker, or if you plan to add one later (contact dealer for ice maker kii number), there are a few things you will want to know: The ON/OFF lever is a wire signal arm. DOWN to make ice automatically.

  • Page 15: Changing The Light Bulbs

    Changing the light Electrical Shock Hazard Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to the refrigerator at the main power supply. Failure to do so could result in electrical shock or personal injury. To change the refrigerator light: Disconnect refrigerator from power supply.

  • Page 16: Reversing The Door Swing

    Reversing the door swing You can change the hinges on your refrig- erator so the doors open the other way. Refer to the instruction sheet included with your refrigerator. Understanding the sounds Your new refrigerator may make sounds that your old one didn’t. Because the sounds are new to you, you might be concerned about them.
  • Page 17 Caring For Your Refrigerator In This Section Cleaning your refrigerator ....17 Vacation and moving care ....16 Your refrigerator is buili give you many years of dependable service.
  • Page 18 WHAT TO USE PART Door liners Sponge, soft cloth and gaskets or paper towel with mild detergent warm water Plastic parts Soft, clean sponge (covers and or soft, clean cloth panels) with mild detergent and warm water Defrost pan Sponge or cloth with mild detergent and warm water Condenser...
  • Page 19 Long vacations If you will be gone a month or more: Remove all food from the refrigerator. 2. If your refrigerator has an automatic ice maker: Turn off the water supply to the ice maker at least one day ahead of time. When the last load of ice drops, turn off the ice maker.
  • Page 20 Food Storage There is a correct way to package and store refrigerated or frozen food. To keep food fresher, longer, take the time to study these recommended Storing fresh food Wrap or store food placed in the refrigerator in airtight and moisture-proof material.
  • Page 21 Storing frozen food The freezer section is designed for storage of commercially frozen food and for freezing food at home. NOTE: For further information about prepar- ing food for freezing or food storage times, contact your local Cooperative Extension Service or check a freezer guide or reliable coo-k.
  • Page 22 If You Need Assistance Service Performance problems often result from little things you can fii without tools. Please read the chart below before calling for service on your appliance. 1. Before calling for assistance Listed in this chart are the most common problems consumers run into with their appliances. Please read through this and see if it can solve your problem.
  • Page 23 . . . 4. If you need ment parts . . . FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appli- ance. FSP replacement...
  • Page 24 1. Compressor 2. Evaporator 3. Condenser 4. Drier 5. Connecting tubing Service must be provided by an authorized Whirlpool service company. WHIRLPOOL WILL NOT PAY FOR Service calls to: 1. Correct the installation of your refrigerator. 2. Instruct you how to use your refrigerator.
