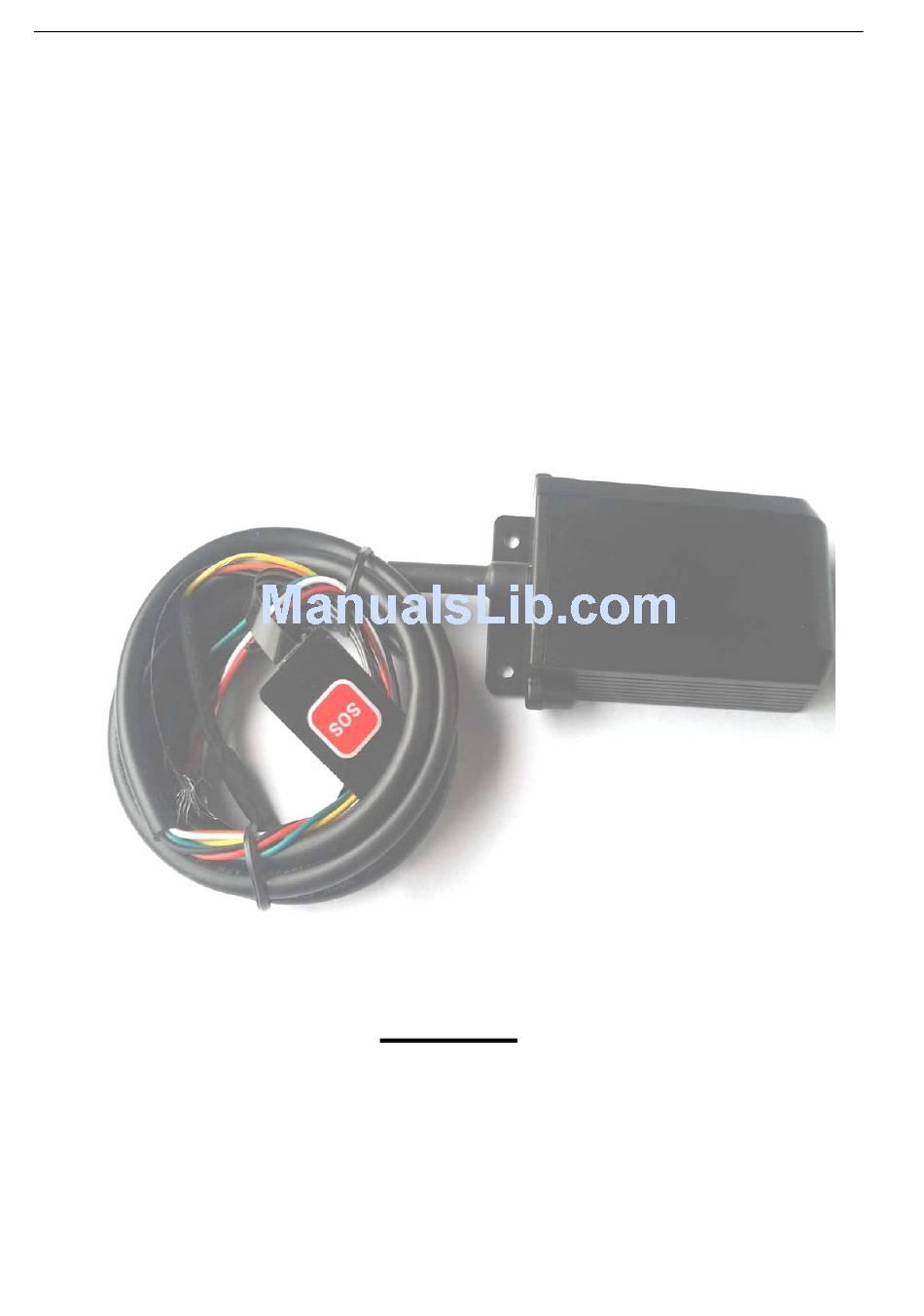

XT-009 Gps tracker user manual
GSM / GPRS / GPS
VEHICLE TRACKER
XT-009
Preface
Thank you for purchasing our GPS vehicle tracker. This manual shows how to operate the
device smoothly and correctly. Please read this manual carefully before using it. Please note
that specification and information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.
1
Advertisement
Table of Contents
Related Manuals for Xexun XT-009
Summary of Contents for Xexun XT-009
- Page 1 XT-009 Gps tracker user manual GSM / GPRS / GPS VEHICLE TRACKER XT-009 Preface Thank you for purchasing our GPS vehicle tracker. This manual shows how to operate the device smoothly and correctly. Please read this manual carefully before using it. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
XT-009 Gps tracker user manual Index 1. Overview of function ----------------------------------------------------------------------------------------------3 2. Application------------------------------------------------------------------------------------------------------------3 3. Hardware description----------------------------------------------------------------------------------------------3 3.1 Outside ------------------------------------------------------------------------------------------------------------3 3.2 Internal mainboard --------------------------------------------------------------------------------------------3 4. Wire connection ----------------------------------------------------------------------------------------------------4 5. Specifications--------------------------------------------------------------------------------------------------------5 6. Battery and SIM Card installation------------------------------------------------------------------------------5 7. Startup-------------------------------------------------------------------------------------------------------------------6 8. Usage-------------------------------------------------------------------------------------------------------------------- 6 9. -
Page 3: Overview Of Function
XT-009 Gps tracker user manual 1. Overview of function SMS/GPRS sending data Movement/ Geofence/ Speed/ Low battery alarm ACC alarm SOS alarm Remote cut-off electricity &oil function Collision vibration alarm (Crash alarm) Voice monitoring Main power disconnect alarm SD card saves GPRS data... -
Page 4: Internal Mainboard
XT-009 Gps tracker user manual 3.2 Internal mainboard SD card SIM card 4. Wires connection White connects to Relay Green connects to ACC Black: -12V Red: +12V... -
Page 5: Specifications
XT-009 Gps tracker user manual 5. Specification Content specs Dimention 73*46*24(mm) Weigh Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy 5-10m Cold status 45s Start-up time Warm status 35s Hot status 1s External power DC6-36V input... -
Page 6: Startup
XT-009 Gps tracker user manual Connect the battery Closes the screws 7.Startup Put the SIM card and SD card in right places,connect the battery to tracker or connect the tracker to 6-36Vcar/motorcycle battery. it will turn on automatically. the red light will on if connect tracker to 6-36V car/motorcycle battery, it will off if disconnect. -
Page 7: Change The Password
XT-009 Gps tracker user manual Send begin + password to the tracker, it will reply begin ok and initialize all settings. TO:13188888888 From:13188888888 begin123456 begin ok 9.2 Changer password end SMS password+old password+space+new password, it will reply password OK. the default password is 123456... -
Page 8: Sms Format
XT-009 Gps tracker user manual TO:13188888888 TO:13188888888 noadmin123456 3166666666 noadmin ok 9.4 SMS format You can see an example of SMS you receive from tracker: Lat: 22.566901 long: 114.051258 speed: 0.00 14/08/09 06.54 F:3.85V,1,Signal:F imei:354776031555474 05 43.5 460 01 2533 720B... -
Page 9: Auto Tracking
XT-009 Gps tracker user manual 9.5 Auto-track Send SMS t030s005n+password to the unit, it will report the Geo-info at 30s intervals for 5 times(s: second, m: minute, h: hour). The setting must be in 3 digits and at maximum 255 in value. -
Page 10: Movement Alarm
XT-009 Gps tracker user manual To:13188888888 From:13188888888 stockade ok stockade123456 114.124845E,22.56718 5N;114.777888E,22.55 5666N From:13188888888 lat: 22.566923 long: 114.051331 speed: 0.00 28/11/10 03:33 F:4.32V,0, Signal:F stockade imei:359587011016261 05 41.5 460 01 2533 720B TO:13188888888 From:13188888888 nostockade123456 nostockade ok 9.8 Movement alarm This function is using for the owner to get alarm when the tracker moves out of a restricted district. -
Page 11: Overspeed Alert
XT-009 Gps tracker user manual This function will be invalid after getting one movement alert Response SMS format: :move!+geo-info. It will alarm one time in each setting. 9.9 Overspeed Alert This function is used to control the user’s driving speed. -
Page 12: Imei Checking
XT-009 Gps tracker user manual Remark: It is recommended that the speed alarm is set at 30-200km/h 9.10 IMEI check Send SMS” imei+password: to the unit,it will reply imei350001122222222 ok. TO:13188888888 From:13188888888 imei23456 imei350001122222222 9.11 Firmware version check Send SMS version +password to the unit， it will reply the firmware version, like XT009 V1.1 OK 9.12 Time Zone setting... -
Page 13: Sms Link
XT-009 Gps tracker user manual 9.14 SMS LINK Send SMS “smslinkone+password”, the tracker will reply only one google map link to the cellphone immediately .The position can be checked directly on a smartphone Google map link Format： http://maps.google.com/maps?f=q&hl=en&q=22.567610,114.051227&speed: 0.00 12/11/10 14:36 F:4.22V Signal:F imei:012207000691839... -
Page 14: Motion Sensor
XT-009 Gps tracker user manual 9.19 Motion Sensor Setup: Send SMS shake+password+space+1-10 to the tracker to set up this function (1-10 means the level of intensity) Send SMS shake+password+space+1 is the least sensitivity . Have to shake the tracker strongly to get the alert. -
Page 15: Ota Feature
XT-009 Gps tracker user manual 9.23 OTA feature Can update firmware remotely when the GPRS and SD card work normally Setup: Send SMS ：fota +password+ ,ftp,v120705.bin,121.37.40.240,user,+888999+,21 it will reply “fota OK” v120705.bin, is the name of the file which you need upgrade，... -
Page 16: Gprs Setting
XT-009 Gps tracker user manual 11. GPRS set Set IP address and port Send SMS adminip+[password]+space+[IP address]+space+[port] Tracker will reply with SMS “ADMINIP ok!” Cancel Send SMS noadminip+[password] Set APN Send SMS apn+[password]+space+[APN] Tracker will reply with SMS “APN ok!”. -
Page 17: Causions
XT-009 Gps tracker user manual Tracker sends message to server using this format: [serial number],[authorized number],[GPRMC],[type GPS],[message],imei:[imei number],[number satellites],[altitude],[battery status],[charging status],[Length], [crc16],[MCC],[MNC],[LAC],[CellID] [serial number] GPS date+GPS time [authorized number] Tracker authorized number [GPRMC] Nmea GPS info string [type of fix GPS] “F”... -
Page 18: Faults And Solutions
XT-009 Gps tracker user manual • Don’t put tracker in overheated or overcooled places. • Handle carefully. • Don’t vibrate or shake it violently. • Clear tracker with a piece of dry cloth. Don’t clean using chemicals detergent. • Don’t paint tracker: this may cause some foreign materials left in between parts. - Page 19 XT-009 Gps tracker user manual 14.The diagram of the relay thin red wire connects 2 sronger red wires +12V conne connects the + of the gasoline White wire connects the tracker...
