Glow-worm Ultrapower 100sxi Installation And Servicing page 35

FRONT INSULATION BURNER
DOOR
SPARK
ELECTRODE
12.6 Condense Trap and Siphonic Drain
The condensate trap & siphonic drain does not normally need
servicing unless material deposits exceed beyond the service
fill level, see diagram 12.14.
To clean the condense trap remove the sump and rinse with
water.
THROTTLE
ADJUSTER
OFFSET
ADJUSTMENT
12 Servicing
BURNER
SECURING
GASKET
SCREW (4)
GAS VALVE
AND FAN

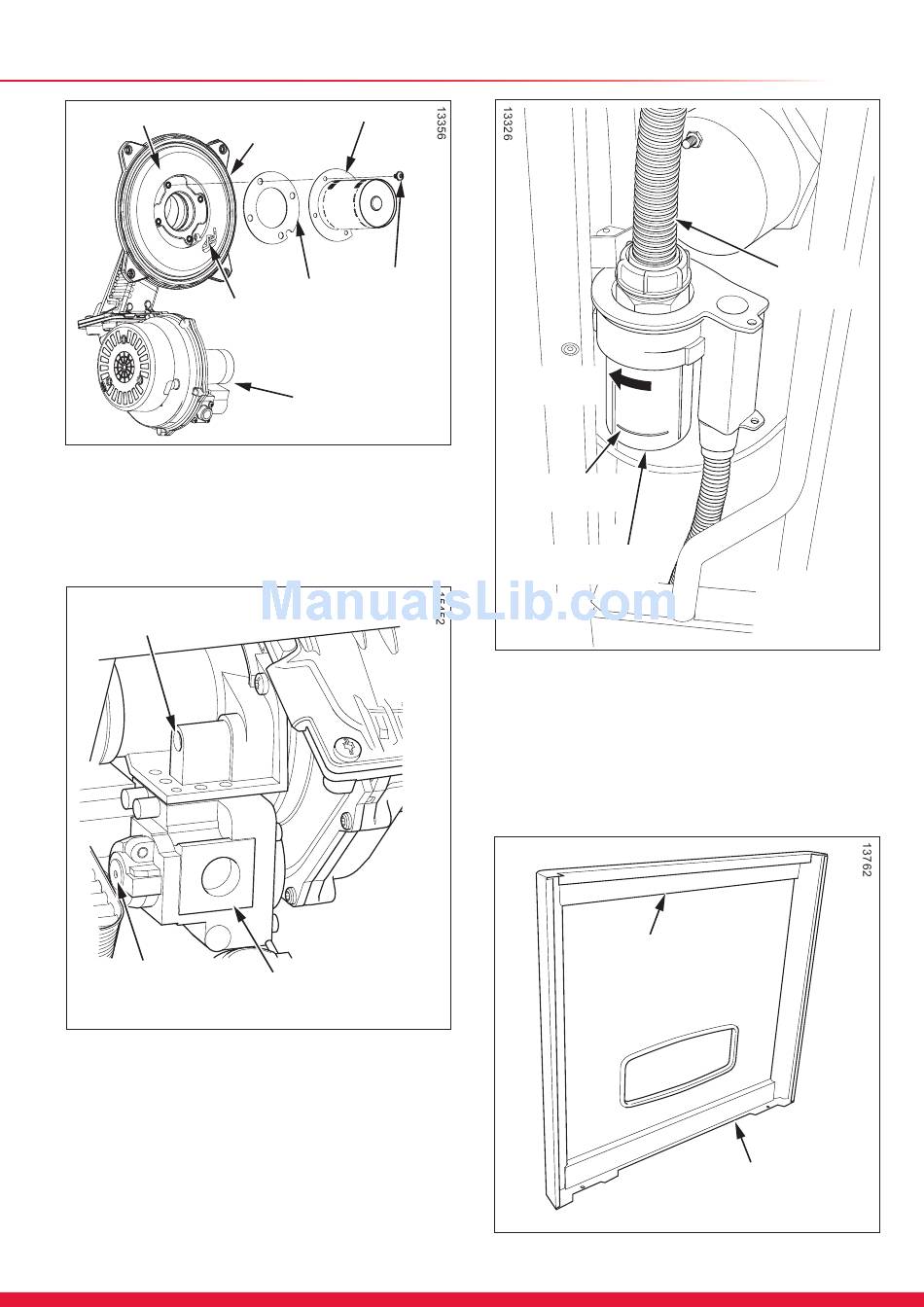

Diagram 12.12
GAS CONTROL
VALVE
Diagram 12.13
Turn
anti-clockwise
to remove
SERVICE
FILL LEVEL
CONDENSE TRAP
& SIPHONIC DRAIN
12.7 Boiler Module Front Casing Panel Seal
Check
Check the condition of the seal, if worn or damaged remove
the seal and thoroughly clean the casing surface before fitting
the new seal, see diagram 12.15.
Refit the casing panel.
NOTE: Ensure the seal is fitted correctly giving an airtight
joint.
SEAL (4 pieces)
FLEXIBLE
CONDENSATE
HOSE
Diagram 12.14
BOILER MODULE
FRONT CASING
PANEL
Diagram 12.15
35
